The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

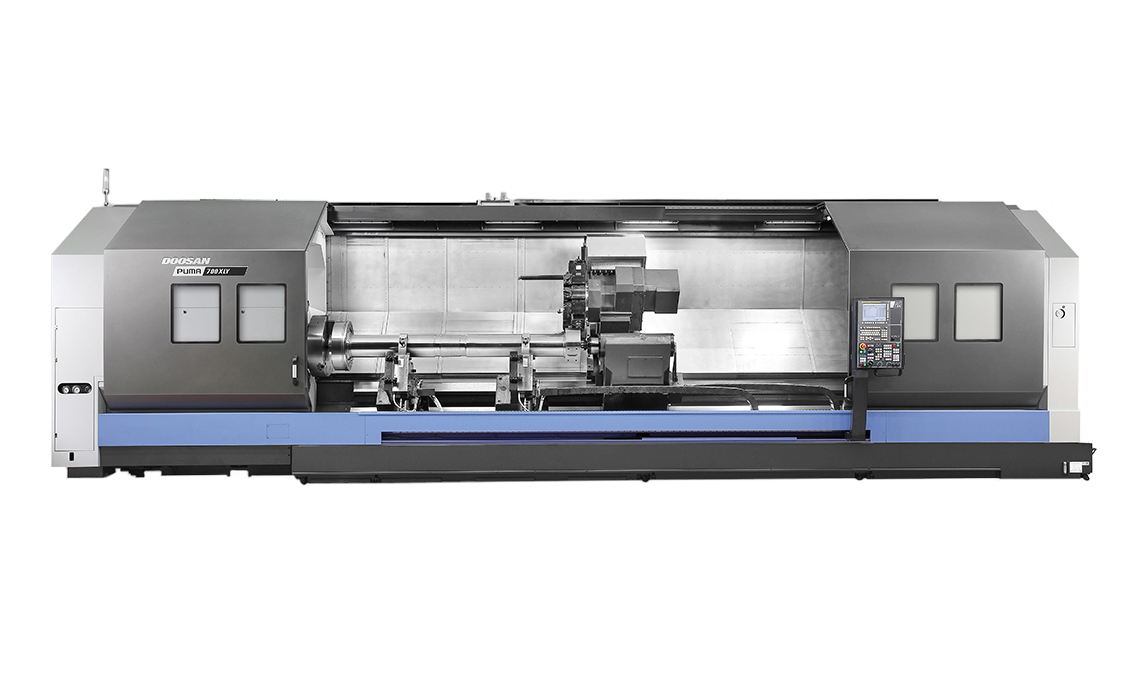

PUMA 700XLM
PUMA Series
PUMA 700XLM
Travels
Travel Distance X-axis
|
470 mm (18.5 in)
|
Travel Distance Z-axis
|
5100 mm (200 in)
|
Rapid Traverse X-axis
|
12 m/min (472 in/min)
|
Rapid Traverse Z-axis
|
10 m/min (394 in/min)
|
Capacity
Max Turning Diameter
|
⌀900 mm (35.4 in)
|
Max Turning Length
|
5050 mm (198.8 in)
|
Through Hole Diameter
|
⌀166.5 mm (6.6 in)
|
Spindle
Chuck Size
|
24 in
|
Speed
|
1500 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
6605 Nm (4873 ft-lbs)
|
Tooling
Shank
|
BMT-85
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀80 mm (3 in)
|
Tooling (Milling)
Rotary Tool Speed
|
3000 rpm
|
Rotary Tool Power
|
11 kW (15 Hp)
|
Rotary Tool Torque
|
140 Nm (103 ft-lbs)
|
Machine Size & Weight
Length
|
9,898 mm (390 in.)
|
Height
|
2,770 mm (109 in.)
|
Width
|
3,090 mm (112 in.)
|
Weight
|
26,000 kg (57,300 lbs.)
|
