The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

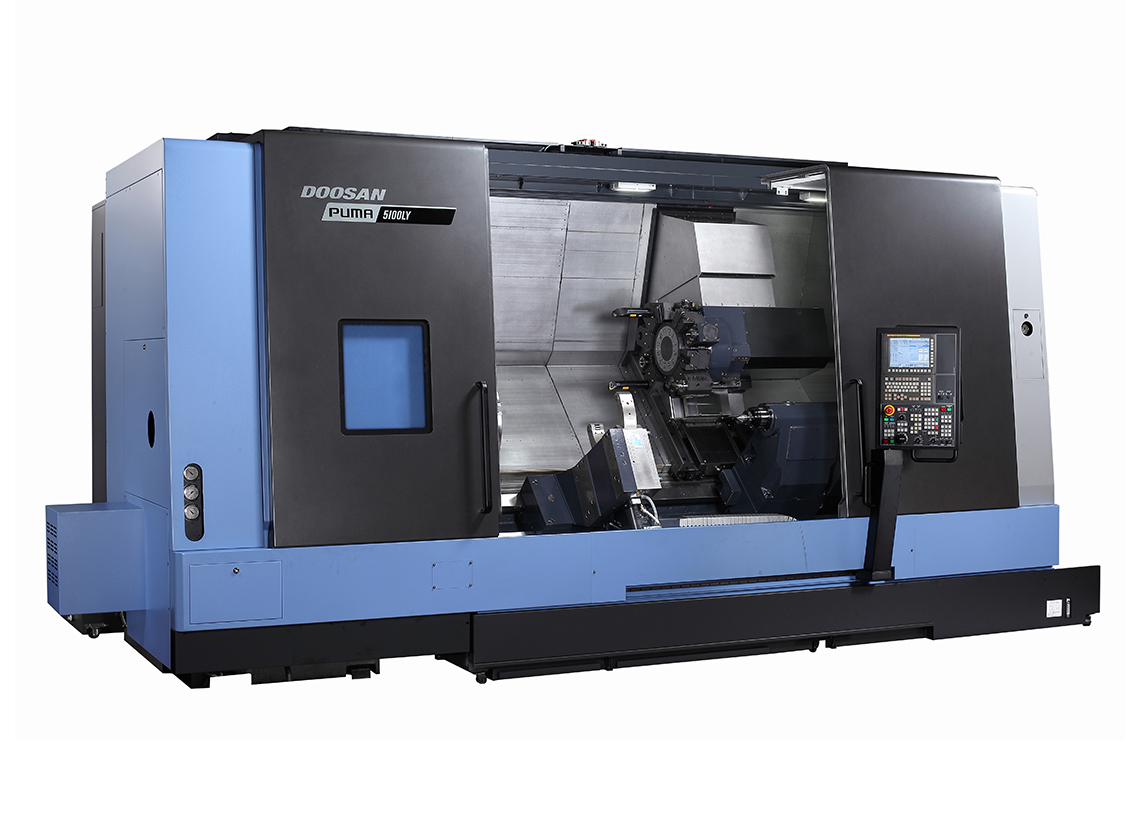

PUMA 5100LYB
PUMA Series
PUMA 5100LYB
Travels
Travel Distance X-axis
|
355 mm (14 in)
|
Travel Distance Y-axis
|
150±75 mm (5.9±2.9 in)
|
Travel Distance Z-axis
|
2100 mm (82.8 in)
|
Rapid Traverse X-axis
|
20 m/min (787 in/min)
|
Rapid Traverse Y-axis
|
10 m/min (394 in/min)
|
Rapid Traverse Z-axis
|
18 m/min (710 in/min)
|
Rapid Traverse C-axis
|
100 rpm
|
Capacity
Max Turning Diameter
|
⌀550 mm (21.7 in)
|
Max Turning Length
|
2020 mm (79.5 in)
|
Through Hole Diameter
|
⌀166.5 mm (6.6 in)
|
Spindle
Chuck Size
|
21 in
|
Speed
|
1500 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
2958 Nm (2181 ft-lbs)
|
Tooling
Shank
|
BMT-75
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀60 mm (2.5 in)
|
Tooling (Milling)
Rotary Tool Speed
|
4000 rpm
|
Rotary Tool Power
|
23 kW (30 Hp)
|
Rotary Tool Torque
|
146 Nm (107.6 ft-lbs)
|
Machine Size & Weight
Length
|
5,980 mm (235 in.)
|
Height
|
2,885 mm (113.6 in.)
|
Width
|
2,522 mm (99 in.)
|
Weight
|
13,000 kg (28,660 lbs.)
|
