Bridge Mills

Our line of Bridge and Gantry Mills combine high rigidity, high speed, and long term, high accuracy. Whether you need multi-purpose or large-capacity, our Bridge Mills and Gantry CNC's can provide you with the size and customization you need for success.

Bridge mills, also known as portal mills, are vertical milling machines with an adjustable crossrail (creating a "bridge" or "portal") that allows the spindle axis to travel from end to end of large workpieces. A bridge mill is made up of a base/bed casting and a single-piece bridge structure bolted to the bed. The Y-axis runs along the bridge structure, and the X-axis runs along the length of the bed.

Because machining on a vertical machining center is limited by bed size—particularly the Y-axis—the extra travel provided by the bridge mill allows for the production of much larger, longer parts than on a vertical machining center. The larger work envelope of a bridge mill opens up more opportunities for manufacturers in the die/mold, aerospace, automotive, and other industries.

The larger dimensions of this type of vertical CNC machine allow for more work to be done in a single pass, increasing productivity and efficiency.

CONTACT US TO SEE AVAILABLE OPTIONS

DN Solutions (formerly Doosan Machine Tools)

DN Solutions (formerly Doosan Machine Tools) has a proven record of successful machine installations in the U.S. market for over 30 years. It offers a diversified product line, with choices ranging from small lathes and mills to heavy duty machining centers to very large double column and boring mills.

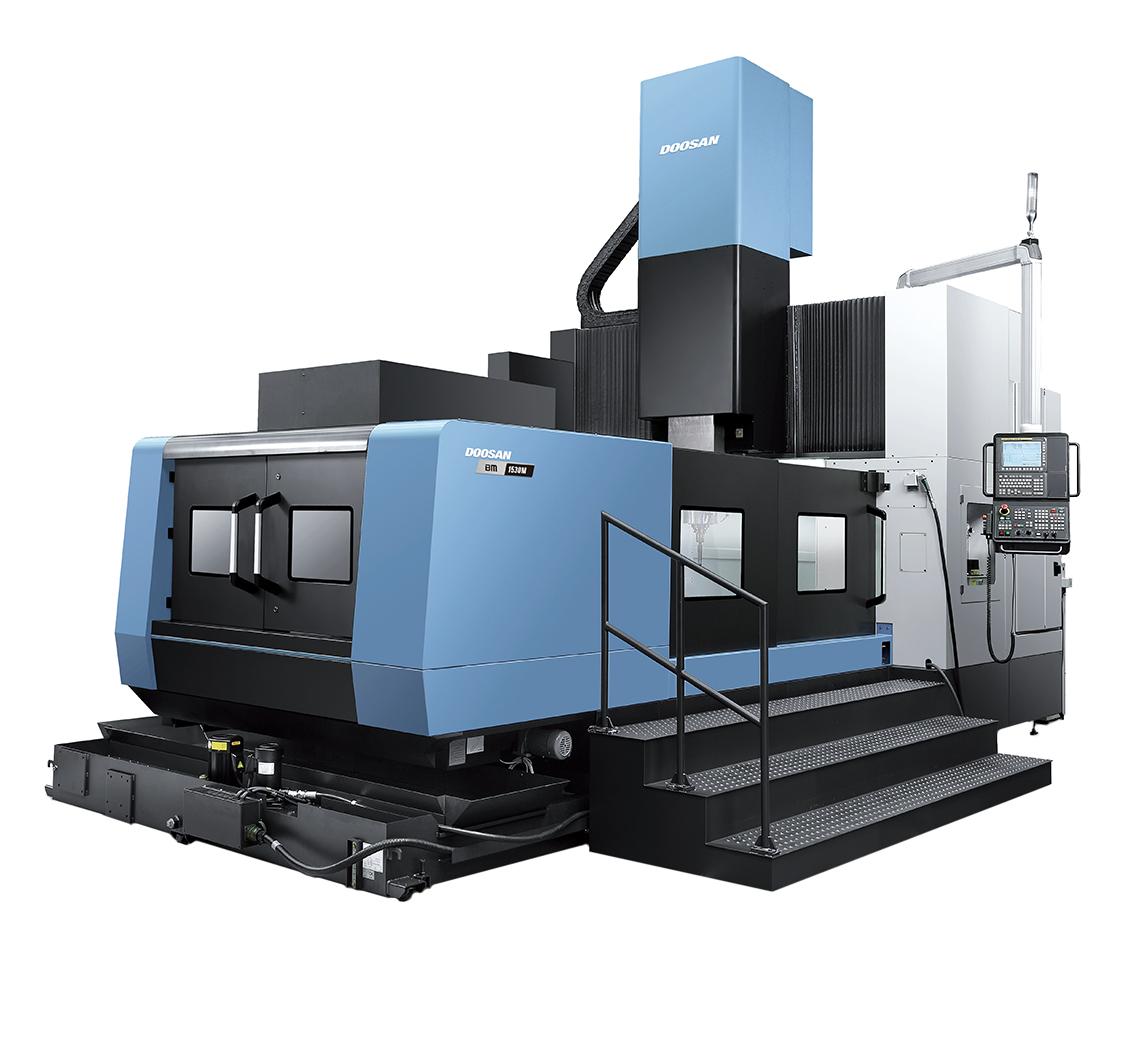

BM Series Bridge Mill

BM Series

Ideal for oversized die mold, injection molding, or press mold applications.

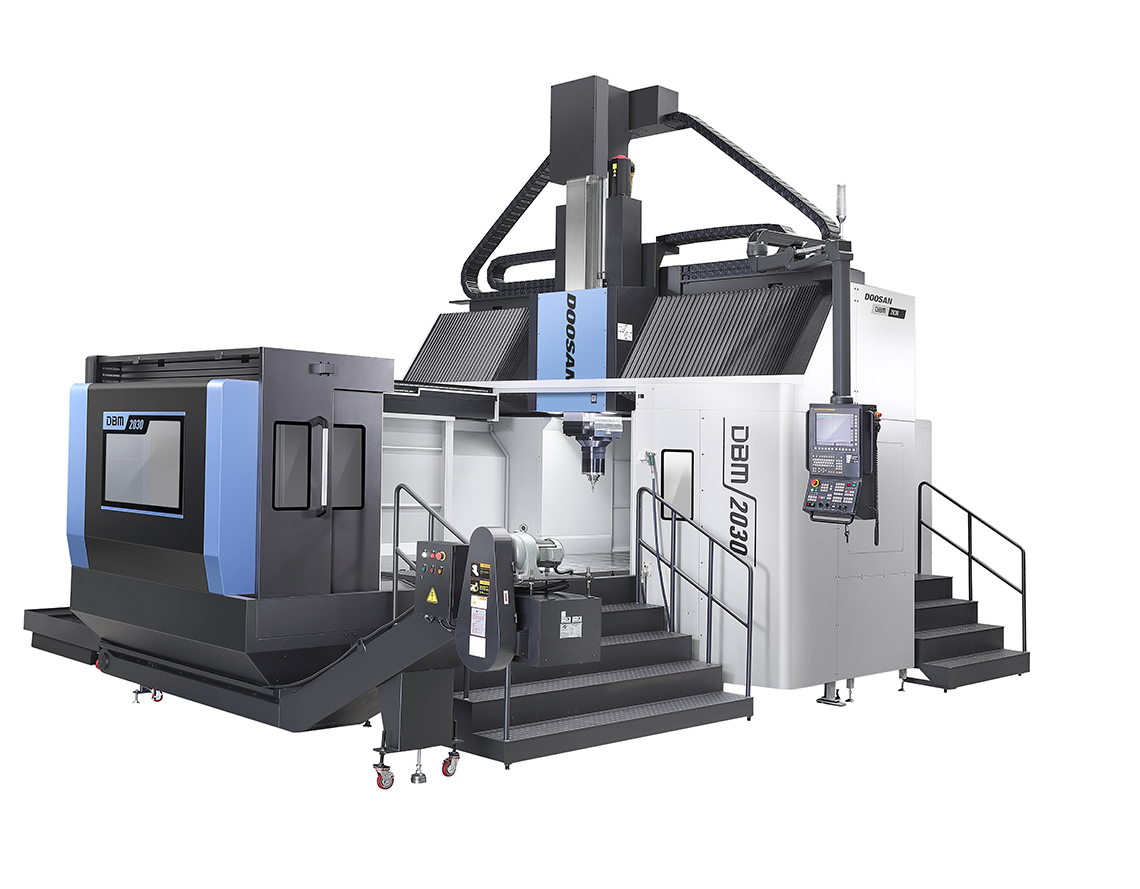

Heavy Duty DBM Series Bridge Mill

DBM Series

More horsepower and torque for heavy duty machining for oversized die and mold applications.
