DBM 2030

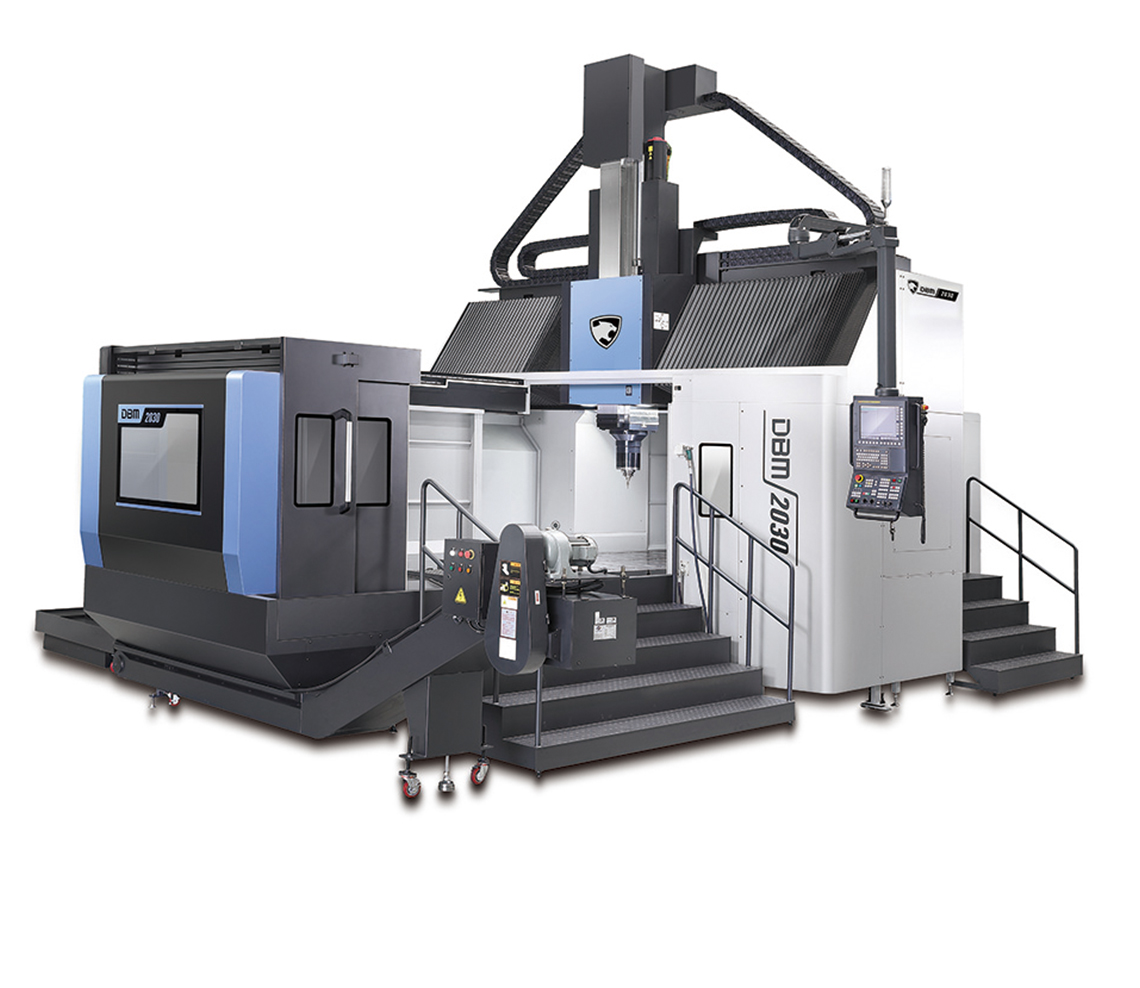

DBM 2030 Bridge and Gantry Mills

DBM Series

The DN Solutions (formerly Doosan Machine Tools) Heavy Duty DBM Series Bridge Mill features a 50 taper, 8,000 rpm RAM type spindle with up to 74 horsepower and 745 ft-lbs of torque. The DBM offers an expanded work envelope to take on the biggest mold and die applications and introduces an automatic attachment changer capable of handling right angle heads, extensions, high-speed spindle attachments, and universal heads.

DBM 2030

Travels
Travel Distance X-Axis
3,250 mm (128 in.)
Travel Distance Y-Axis
2,500 mm (98.4 in.)
Travel Distance Z-Axis
800/1,100 mm (31.5/43.3 in.)
Rapid Traverse X-axis
20 m/min. (790 in./min.)
Rapid Traverse Y-axis
20 m/min. (790 in./min.)
Rapid Traverse Z-axis
15 m/min. (394 in./min.)
Table
Table Size
3,000 x 1,500 (118.1 x 59 in.)
Max Load
12,000 kg (26,400 lbs.)
Spindle
Speed
8,000 rpm
Power
55 kW (73.8 hp)
Torque
1,009 Nm (744.6 ft-lbs.)
Spindle To Table Distance
200 - 1,000 mm (7.8 - 39.4 in.)
Tooling
Shank
CAT-50
Changer Capacity
40 (opt. 60)
Max Diameter
⌀130 mm (5.1 in.)
Max Length
400 mm (15.7 in.)
Machine Size & Weight
Length
8,800 mm (346 in.)
Height
5,100/5,700 mm (201/224 in.)
Width
6,930 mm (273 in.)
Weight
32,000 kg (70,400 lbs.)
