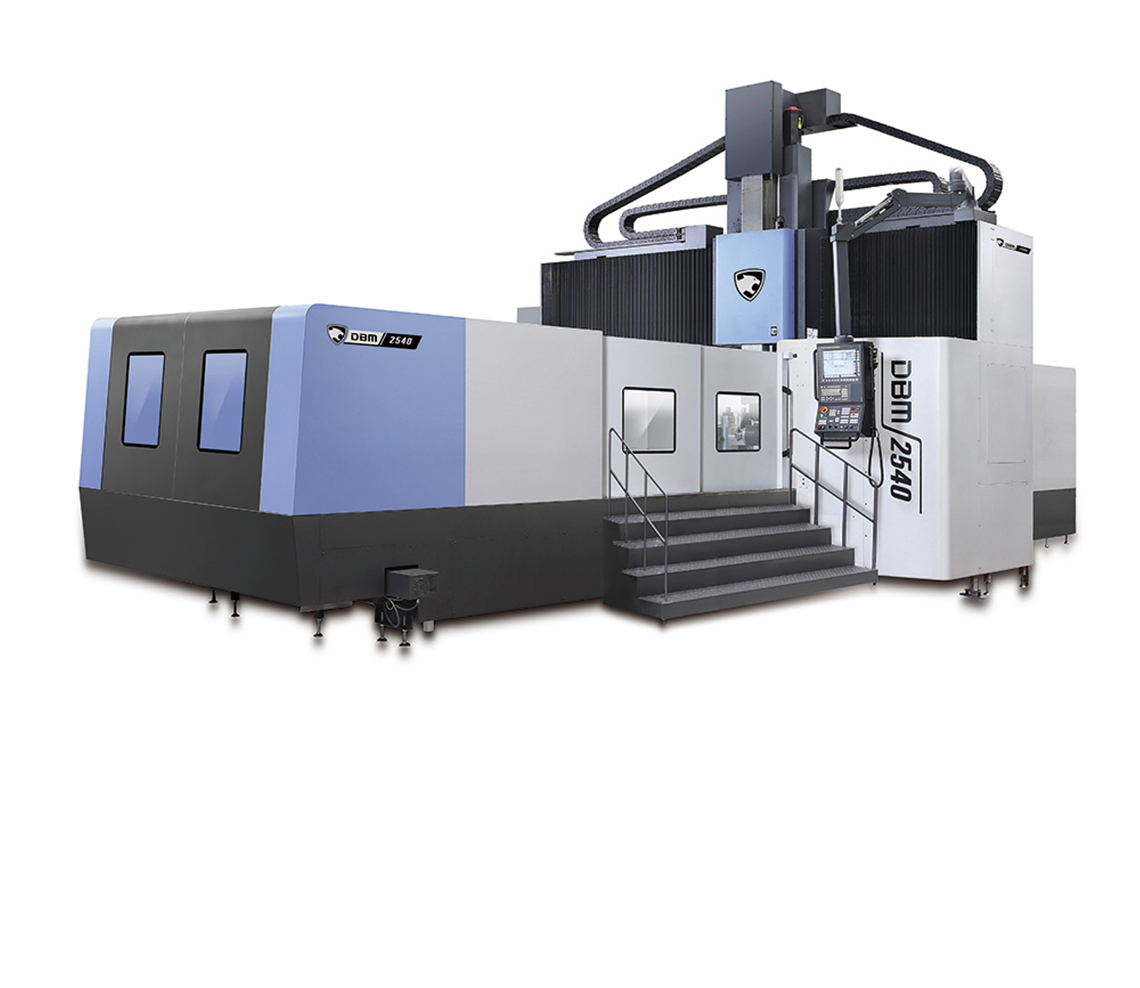

The DN Solutions (formerly Doosan Machine Tools) Heavy Duty DBM Series Bridge Mill features a 50 taper, 8,000 rpm RAM type spindle with up to 74 horsepower and 745 ft-lbs of torque. The DBM offers an expanded work envelope to take on the biggest mold and die applications and introduces an automatic attachment changer capable of handling right angle heads, extensions, high-speed spindle attachments, and universal heads.
You are here
DBM 2540
DBM Series
DBM 2540
Travels
Travel Distance X-Axis
|
4,250 mm (167 in.)
|
Travel Distance Y-Axis
|
3,000 mm (118 in.)
|
Travel Distance Z-Axis
|
800/1,100 mm (31.5/43.3 in.)
|
Rapid Traverse X-axis
|
20 m/min. (790 in./min.)
|
Rapid Traverse Y-axis
|
20 m/min. (790 in./min.)
|
Rapid Traverse Z-axis
|
15 m/min. (394 in./min.)
|
Table
Table Size
|
4,000 x 2,000 mm (157.5 x 78.7 in.)
|
Max Load
|
18,000 kg (39,600 lbs.)
|
Spindle
Speed
|
8,000 rpm
|
Power
|
55 kW (73.8 hp)
|
Torque
|
1,009 Nm (744.6 ft-lbs.)
|
Spindle To Table Distance
|
200 - 1,000 mm (7.8 - 39.4 in.)
|
Tooling
Shank
|
CAT-50
|
Changer Capacity
|
40 (opt. 60)
|
Max Diameter
|
⌀130 mm (5.1 in.)
|
Max Length
|
400 mm (15.7 in.)
|
Machine Size & Weight
Length
|
11,000 mm (433 in.)
|
Height
|
5,100/5,700 mm (201/224 in.)
|
Width
|
7,430 mm (292.5 in.)
|
Weight
|
42,000 kg (92,600 lbs.)
|
