The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here
PUMA 3100LSY
PUMA Series

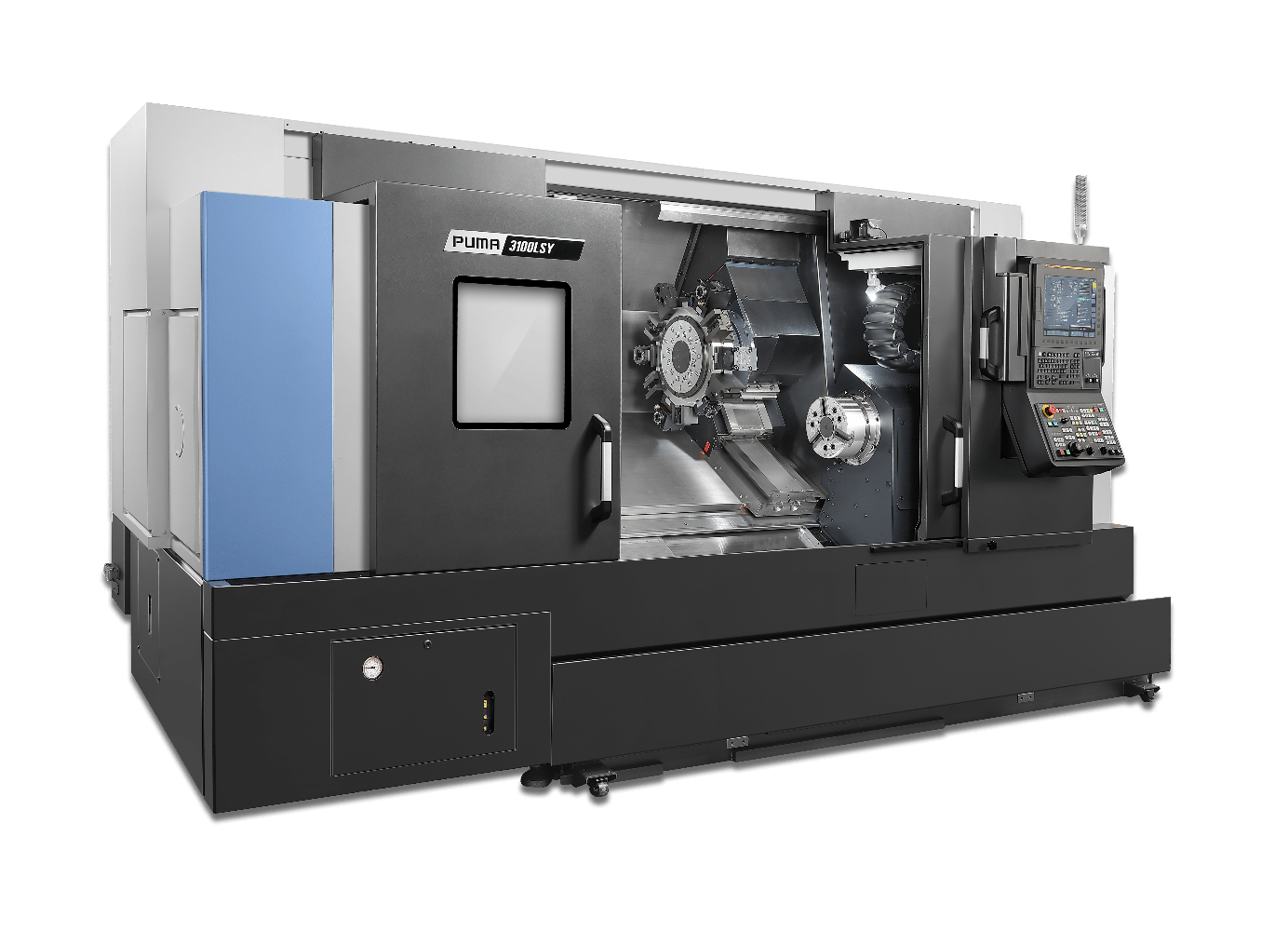

PUMA 3100LSY
TRAVELS
Travel Distance X-axis
|
293 mm (11.5 in)
|
Travel Distance Z-axis
|
1,350 mm (53.15")
|
Rapid Traverse X-axis
|
30 m/min (1,181 ipm)
|
Rapid Traverse Z-axis
|
30 m/min (1,181 ipm)
|
CAPACITY
Max Turning Diameter
|
420 mm (16.53")
|
Max Turning Length
|
1,285 mm (50.6”)
|
Through Hole Diameter
|
103 mm (4.05")
|
SPINDLE
Chuck Size
|
12
|
Speed
|
3,000 rpm
|
Power
|
30 kW (40 hp)
|
Torque
|
1,203 Nm (887 ft-lb)
|
TOOLING
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀50 mm (2 in)
|
MACHINE SIZE & WEIGHT
Length
|
4,530 mm (178”)
|
Height
|
2,315 mm (91.5”)
|
Width
|
2,067 mm (81.3")
|
Weight
|
8,500 kg (18,740 lb)
|
