The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

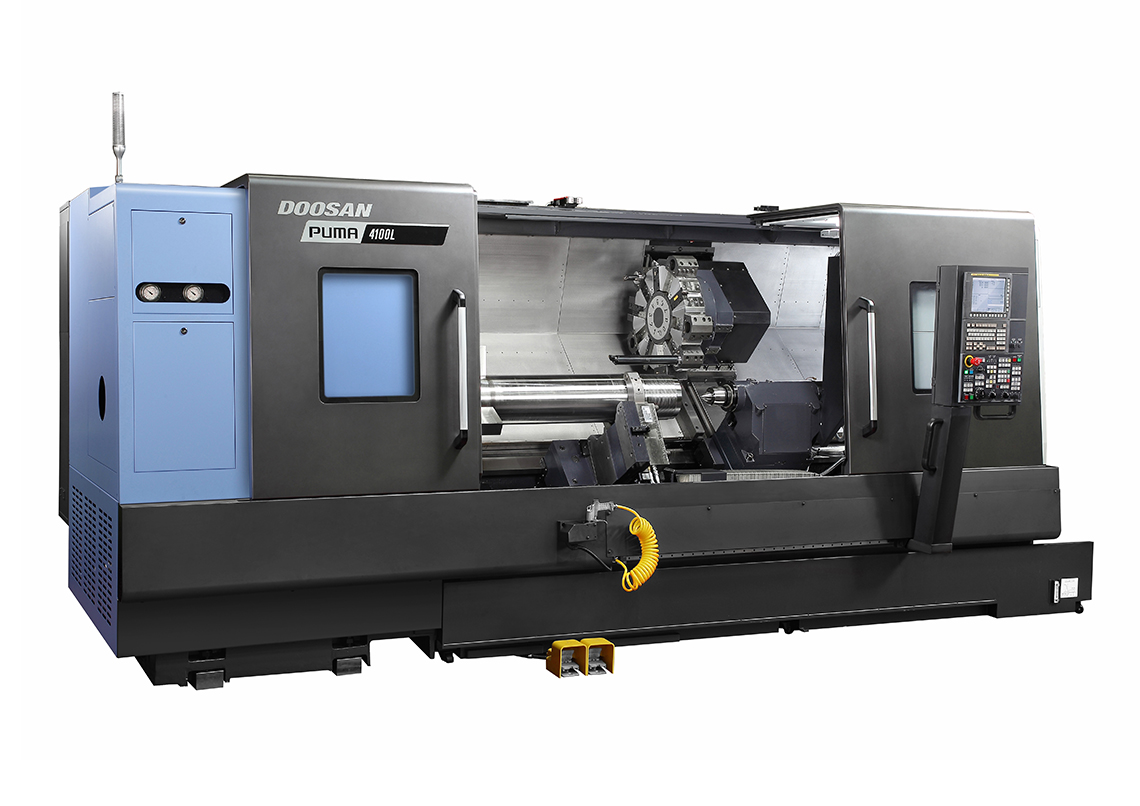

PUMA 4100LB
PUMA Series
PUMA 4100LB
Travels
Travel Distance X-axis
|
352 mm (13.8 in)
|
Travel Distance Z-axis
|
2155 mm (84.8 in)
|
Rapid Traverse X-axis
|
16 m/min (630 in/min)
|
Rapid Traverse Z-axis
|
20 m/min (787 in/min)
|
Capacity
Max Turning Diameter
|
⌀550 mm (21.7 in)
|
Max Turning Length
|
2092 mm (82.4 in)
|
Through Hole Diameter
|
⌀117.5 mm (4.6 in)
|
Spindle
Chuck Size
|
18 in
|
Speed
|
2000 rpm
|
Power
|
37 kW (50 Hp)
|
Torque
|
3280 Nm (2419 ft-lbs)
|
Tooling
Shank
|
BMT-KEY
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀60 mm (2.5 in)
|
Machine Size & Weight
Length
|
5774 mm (227 in)
|
Height
|
2,272 mm (89.5 in.)
|
Width
|
2,275 mm (90 in.)
|
Weight
|
11,400 kg (25,130 lbs.)
|
