The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

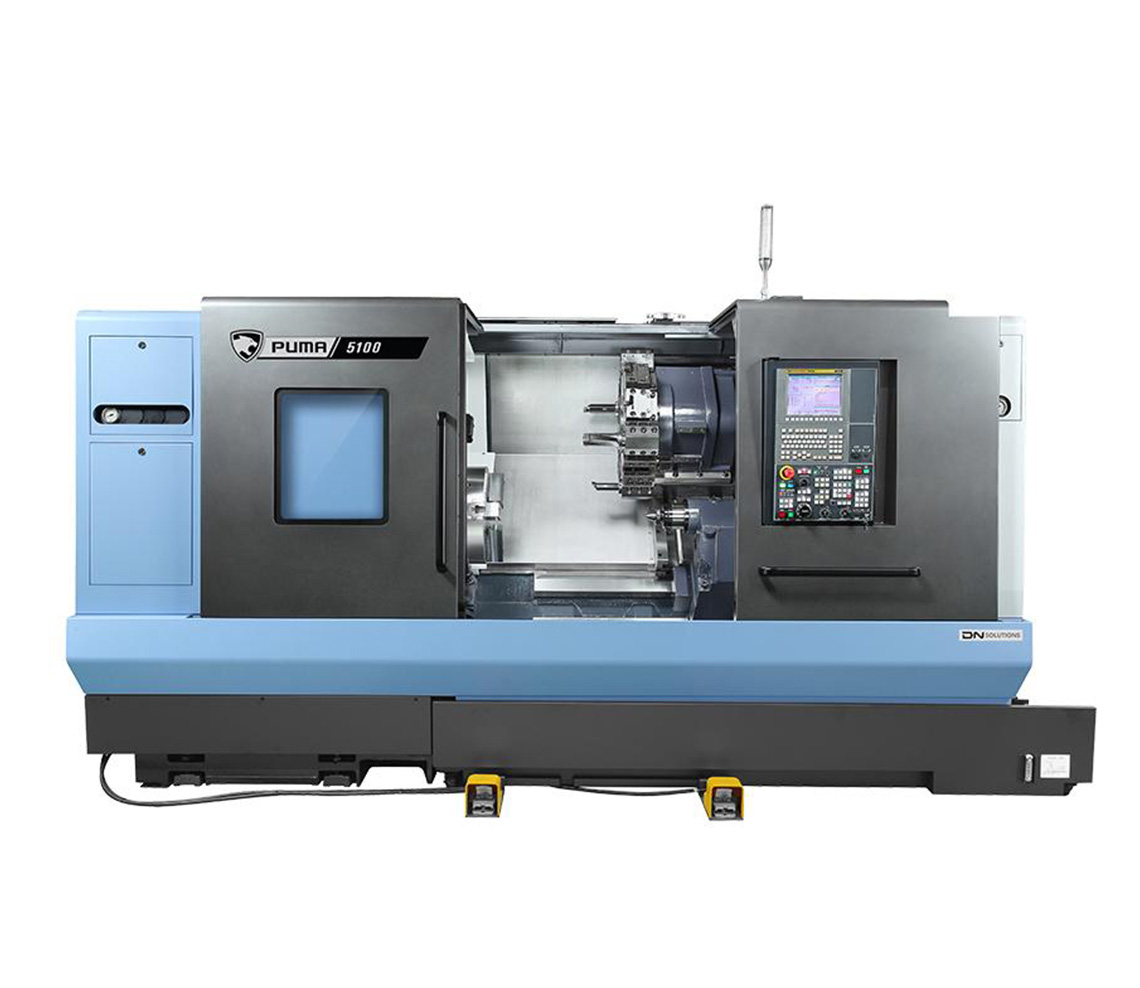

PUMA 5100MB
PUMA Series
PUMA 5100MB
Travels
Travel Distance X-axis
|
362 mm (14.3 in)
|
Travel Distance Z-axis
|
1105 mm (43.5 in)
|
Rapid Traverse X-axis
|
16 m/min (630 in/min)
|
Rapid Traverse Z-axis
|
20 m/min (787 in/min)
|
Capacity
Max Turning Diameter
|
⌀650 mm (25.6 in)
|
Max Turning Length
|
952 mm (37.5 in)
|
Through Hole Diameter
|
⌀166.5 mm (6.6 in)
|
Spindle
Chuck Size
|
21 in
|
Speed
|
1500 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
2958 Nm (2181 ft-lbs)
|
Tooling
Shank
|
BMT-75
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀60 mm (2.5 in)
|
Tooling (Milling)
Rotary Tool Speed
|
4000 rpm
|
Rotary Tool Power
|
23 kW (30 Hp)
|
Rotary Tool Torque
|
146 Nm (107.6 ft-lbs)
|
Machine Size & Weight
Length
|
4,759 mm (187.5 in.)
|
Height
|
2,194 mm (86.4 in.)
|
Width
|
2,055 mm (81 in.)
|
Weight
|
10,750 kg (23,700 lbs.)
|
