The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

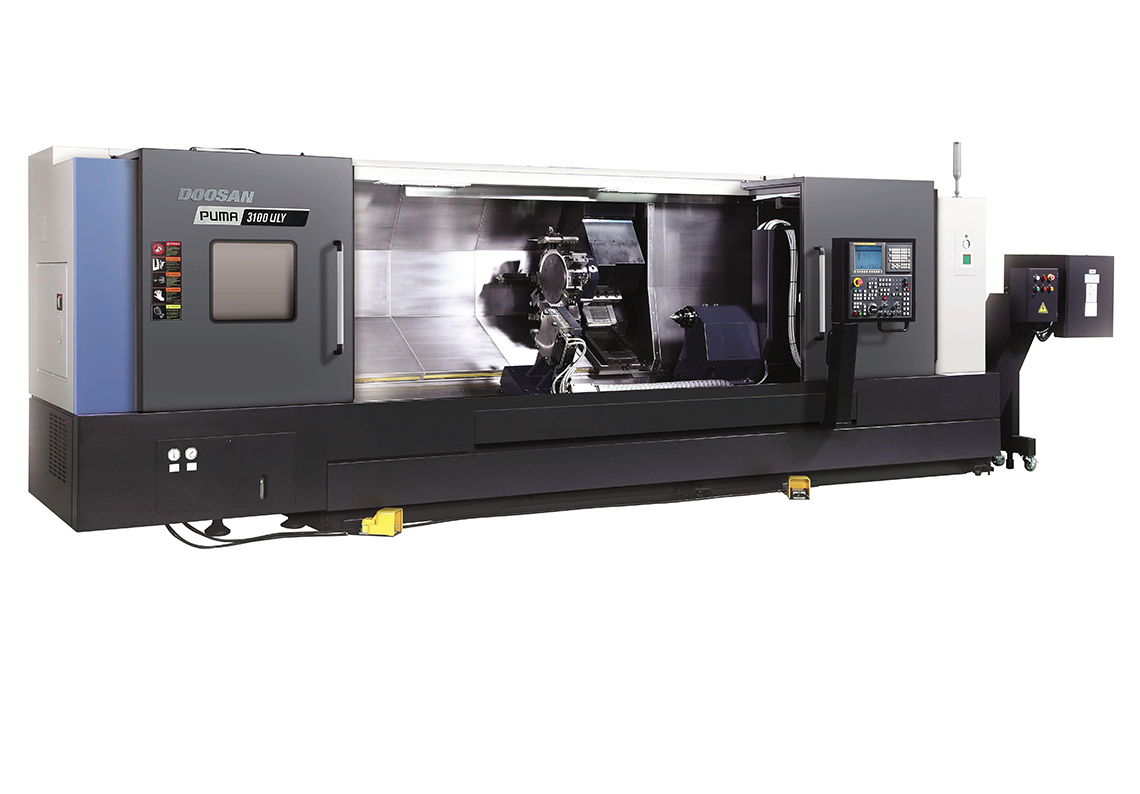

PUMA 3100ULY
PUMA Series
PUMA 3100ULY
Travels
Travel Distance X-axis
|
293 mm (11.5 in.)
|
Travel Distance Y-axis
|
130±65 mm (5.1±2.5 in.)
|
Travel Distance Z-axis
|
3,190 mm (125.6 in.)
|
Rapid Traverse X-axis
|
30 m/min. (1,181 in./min.)
|
Rapid Traverse Y-axis
|
10 m/min. (393 in./min.)
|
Rapid Traverse Z-axis
|
26 m/min. (1,020 in./min.)
|
Rapid Traverse C-axis
|
200 rpm
|
Capacity
Max Turning Diameter
|
⌀420 mm (16.5 in)
|
Max Turning Length
|
3,125 mm (123 in.)
|
Through Hole Diameter
|
⌀103 mm (4 in.)
|
Spindle
Chuck Size
|
12 in.
|
Speed
|
2,800 rpm
|
Power
|
30 kW (40 Hp)
|
Torque
|
1,151 Nm (848 ft-lbs.)
|
Tooling
Shank
|
BMT-65
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀50 mm (2 in.)
|
Tooling (Milling)
Rotary Tool Speed
|
5,000 rpm
|
Rotary Tool Power
|
7.5 kW (10 Hp)
|
Rotary Tool Torque
|
95.5 Nm (70 ft-lbs.)
|
Machine Size & Weight
Length
|
6,585 mm (259 in.)
|
Height
|
2,315 mm (92 in.)
|
Width
|
2,280 mm (90 in.)
|
Weight
|
12,300 kg (27,120 lbs.)
|
