PUMA 5100XLMB

PUMA Series

The PUMA Series is Doosan’s high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has models with chuck sizes ranging from 8”-12”. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.

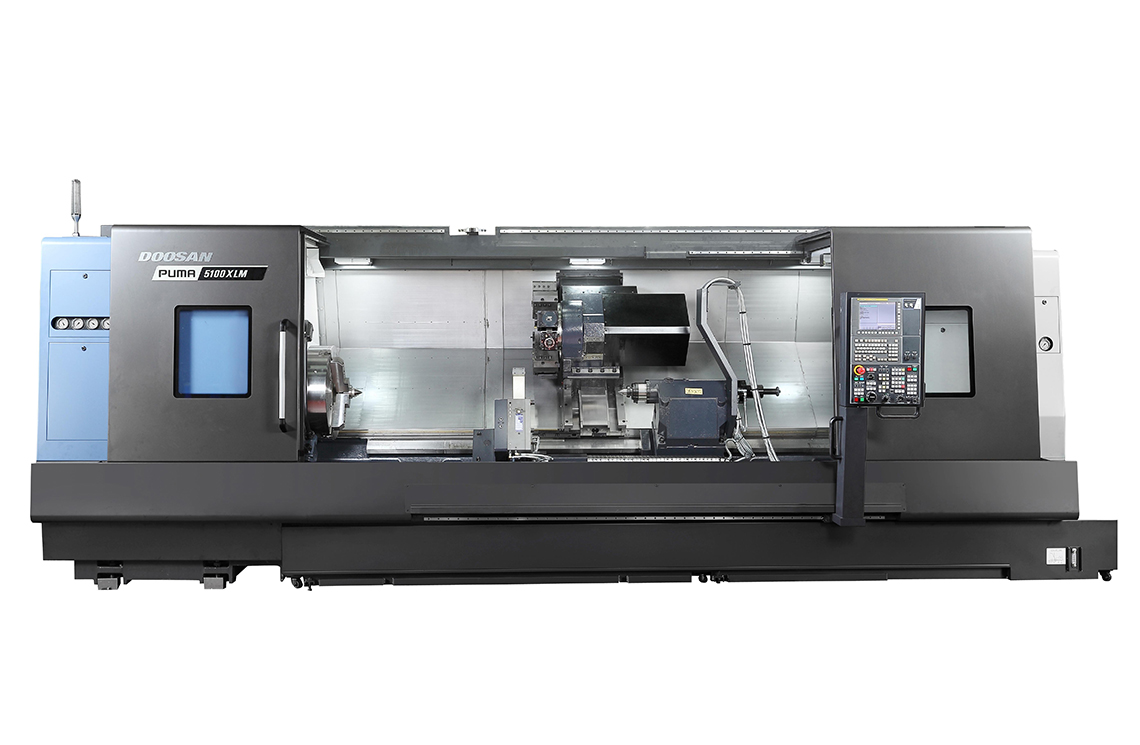

PUMA 5100XLMB

Travels
Travel Distance X-axis
362 mm (14.3 in)
Travel Distance Z-axis
3150 mm (124 in)
Rapid Traverse X-axis
16 m/min (630 in/min)
Rapid Traverse Z-axis
20 m/min (787 in/min)
Capacity
Max Turning Diameter
⌀650 mm (25.6 in)
Max Turning Length
3028 mm (119.2 in)
Through Hole Diameter
⌀166.5 mm (6.6 in)
Spindle
Chuck Size
21 in
Speed
1500 rpm
Power
45 kW (60 Hp)
Torque
2958 Nm (2181 ft-lbs)
Tooling
Shank
BMT-75
Turret Stations
12
Boring Bar Diameter
⌀60 mm (2.5 in)
Tooling (Milling)
Rotary Tool Speed
4000 rpm
Rotary Tool Power
11 kW (15 Hp)
Rotary Tool Torque
146 Nm (107.6 ft-lbs)
Machine Size
Length
7059 mm (278 in)
Height
2335 mm (91.1 in)
Width
2276 mm (90 in)
