The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

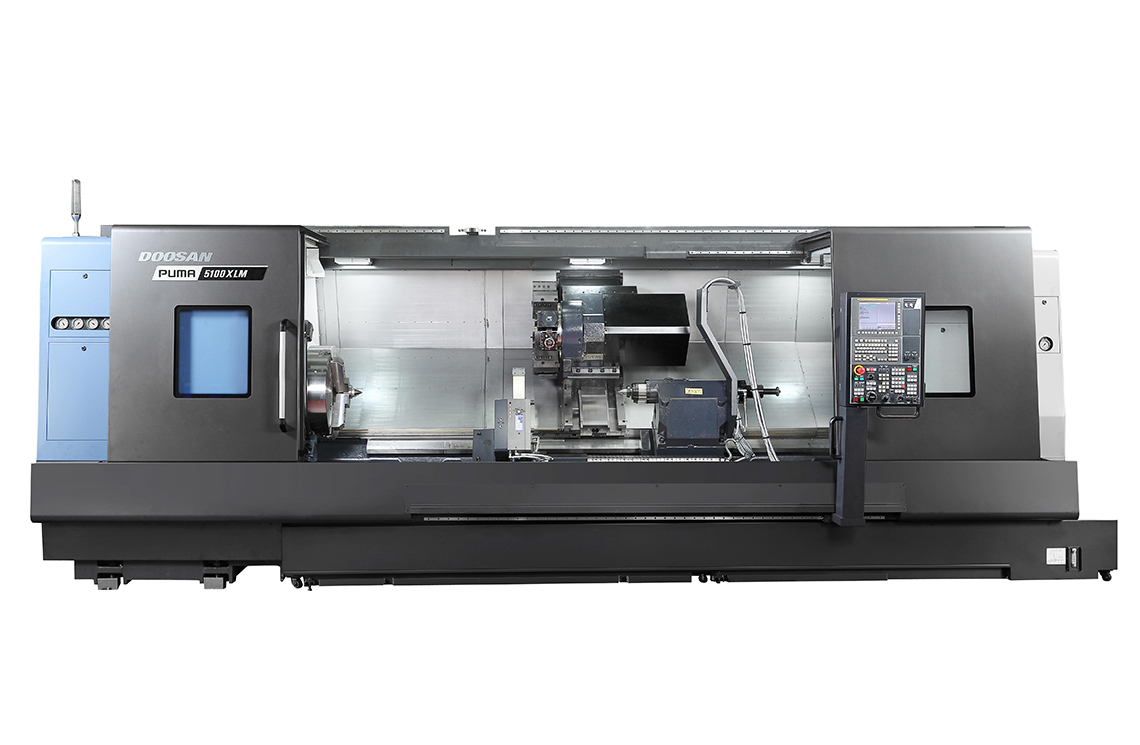

PUMA 5100XLB
PUMA Series
PUMA 5100XLB
Travels
Travel Distance X-axis
|
362 mm (14.3 in)
|
Travel Distance Z-axis
|
3150 mm (124 in)
|
Rapid Traverse X-axis
|
16 m/min (630 in/min)
|
Rapid Traverse Z-axis
|
20 m/min (787 in/min)
|
Capacity
Max Turning Diameter
|
⌀650 mm (25.6 in)
|
Max Turning Length
|
3042 mm (119.7 in)
|
Through Hole Diameter
|
⌀166.5 mm (6.6 in)
|
Spindle
Chuck Size
|
24 in
|
Speed
|
1500 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
4038 Nm (2978 ft-lbs)
|
Tooling
Shank
|
BMT-KEY
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀80 mm (3 in)
|
Machine Size & Weight
Length
|
7,059 mm (278 in.)
|
Height
|
2,335 mm (91.1 in.)
|
Width
|
2,276 mm (90 in.)
|
Weight
|
13,050 kg (28,775 lb)
|
