The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
You are here

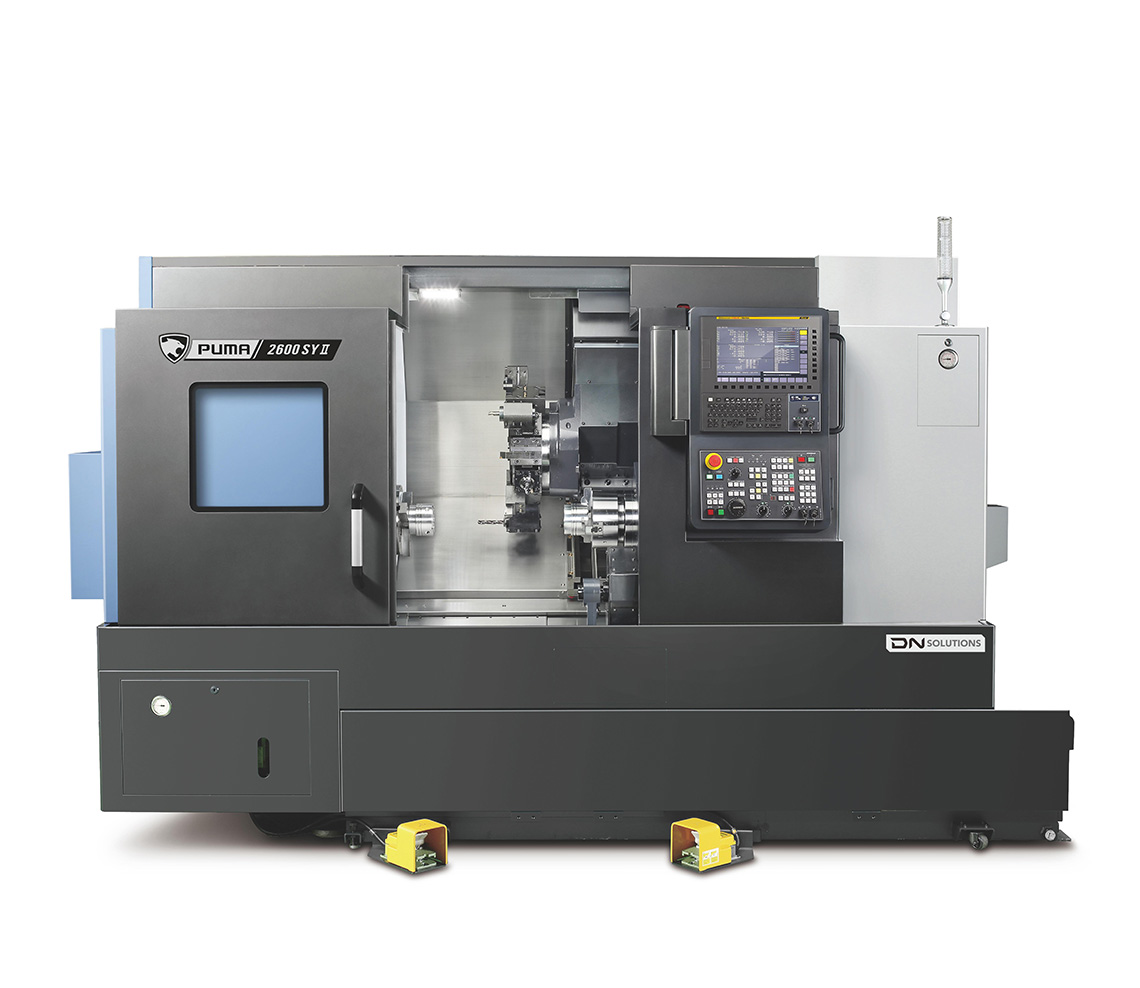

PUMA 2600Y II
PUMA Series
PUMA 2600Y II
Travels
Travel Distance X-axis
|
260 mm (10.2 in)
|
Travel Distance Y-axis
|
105±52.5 mm (4.1±2.1 in)
|
Travel Distance Z-axis
|
830 mm (32.7 in)
|
Rapid Traverse X-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Y-axis
|
10 m/min (394 in/min)
|
Rapid Traverse Z-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse C-axis
|
200 rpm
|
Capacity
Max Turning Diameter
|
⌀376 mm (14.8 in)
|
Max Turning Length
|
760 mm (29.9 in)
|
Through Hole Diameter
|
⌀82 mm (3.2 in)
|
Spindle
Chuck Size
|
10 in
|
Speed
|
4000 rpm
|
Power
|
22 kW (30 Hp)
|
Torque
|
599 Nm (442 ft-lbs)
|
Tooling
Shank
|
BMT-65
|
Turret Stations
|
12
|
Boring Bar Diameter
|
⌀50 mm (2 in)
|
Tooling (Milling)
Rotary Tool Speed
|
5000 rpm
|
Rotary Tool Power
|
7.5 kW (10 Hp)
|
Rotary Tool Torque
|
95.5 Nm (70 ft-lbs)
|
Machine Size & Weight
Length
|
3,505 mm (138 in.)
|
Height
|
2,163 mm (85 in.)
|
Width
|
1,945 mm (76.5 in.)
|
Weight
|
6,100 kg (13,450 lbs.)
|
