Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

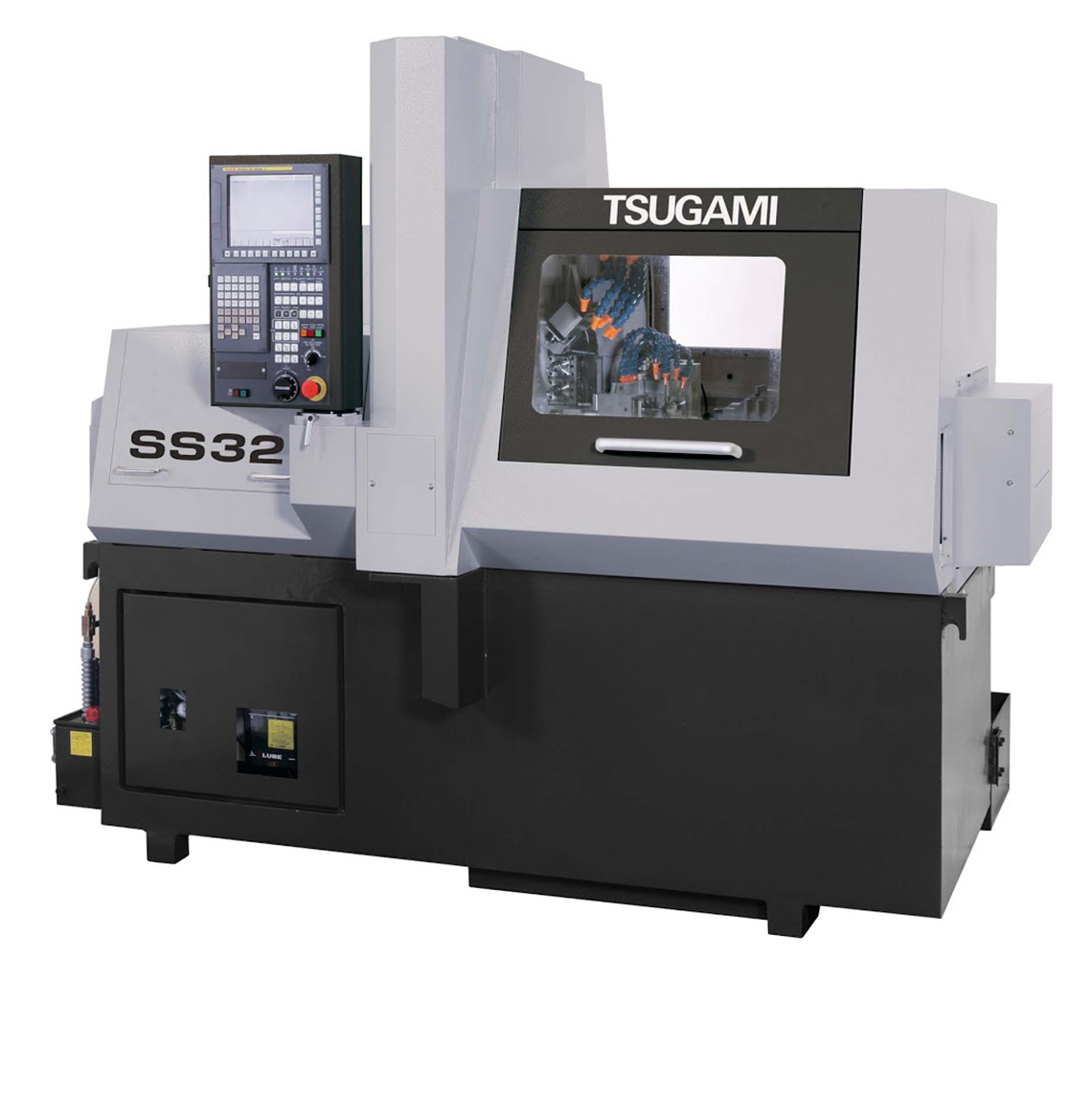

SS32
Opposed Gang Tool
SS32
Travels
Max Headstock Stroke
|
320 mm (12.6 in)
|
Number of Axes
|
6
|
Capacity
Max Bar Diameter
|
Ø32 mm (1.3 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
No
|
Spindle
Speed (Main)
|
200-8000 rpm
|
Speed (Sub)
|
200-8000 rpm
|
Power
|
3.7/5.5 kW (5/7.4 Hp)
|
Tooling
Tool Capacity
|
24/40
|
Live Tool Capacity
|
13-Oct
|
Live Tool Speed
|
5000 rpm
|
Machine Size
Length
|
1675 mm (65.9 in)
|
Height
|
2020 mm (79.5 in)
|
Width
|
2020 mm (79.5 in)
|
