Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

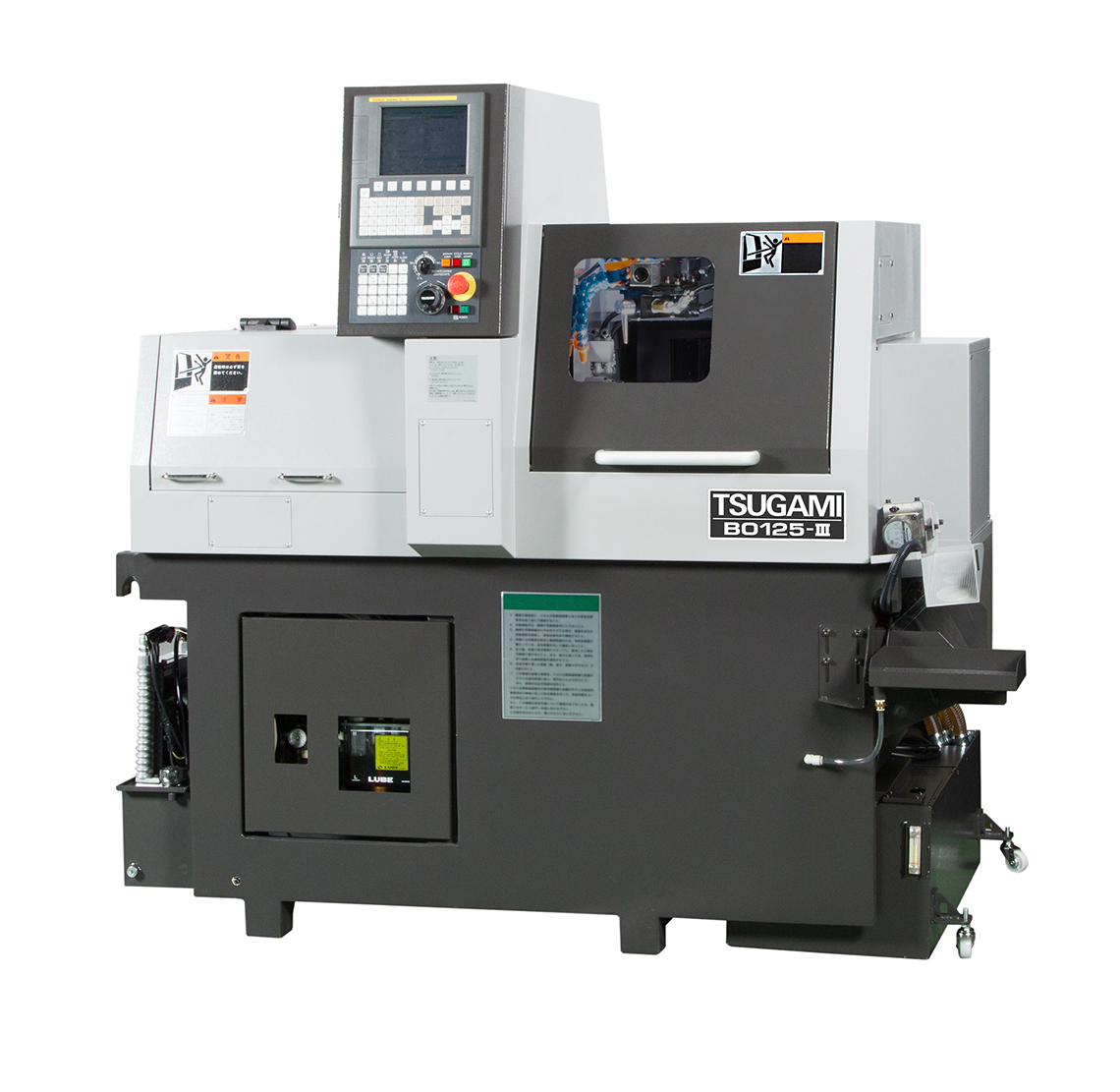

B0125-III

Opposed Gang Tool
B0125-III
Travels
Max Headstock Stroke
|
45/210 mm (1.8/8.3 in)
|
Number of Axes
|
5
|
Capacity
Max Bar Diameter
|
Ø12 mm (0.5 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
Yes
|
Spindle
Speed (Main)
|
200-12000 rpm
|
Speed (Sub)
|
200-12000 rpm
|
Power
|
1.5/2.2 kW (2/2.9 Hp)
|
Tooling
Tool Capacity
|
21
|
Live Tool Capacity
|
4
|
Live Tool Speed
|
8000 rpm
|
Machine Size
Length
|
1125 mm (44.3 in)
|
Height
|
1700 mm (66.9 in)
|
Width
|
1655 mm (65.2 in)
|
