Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

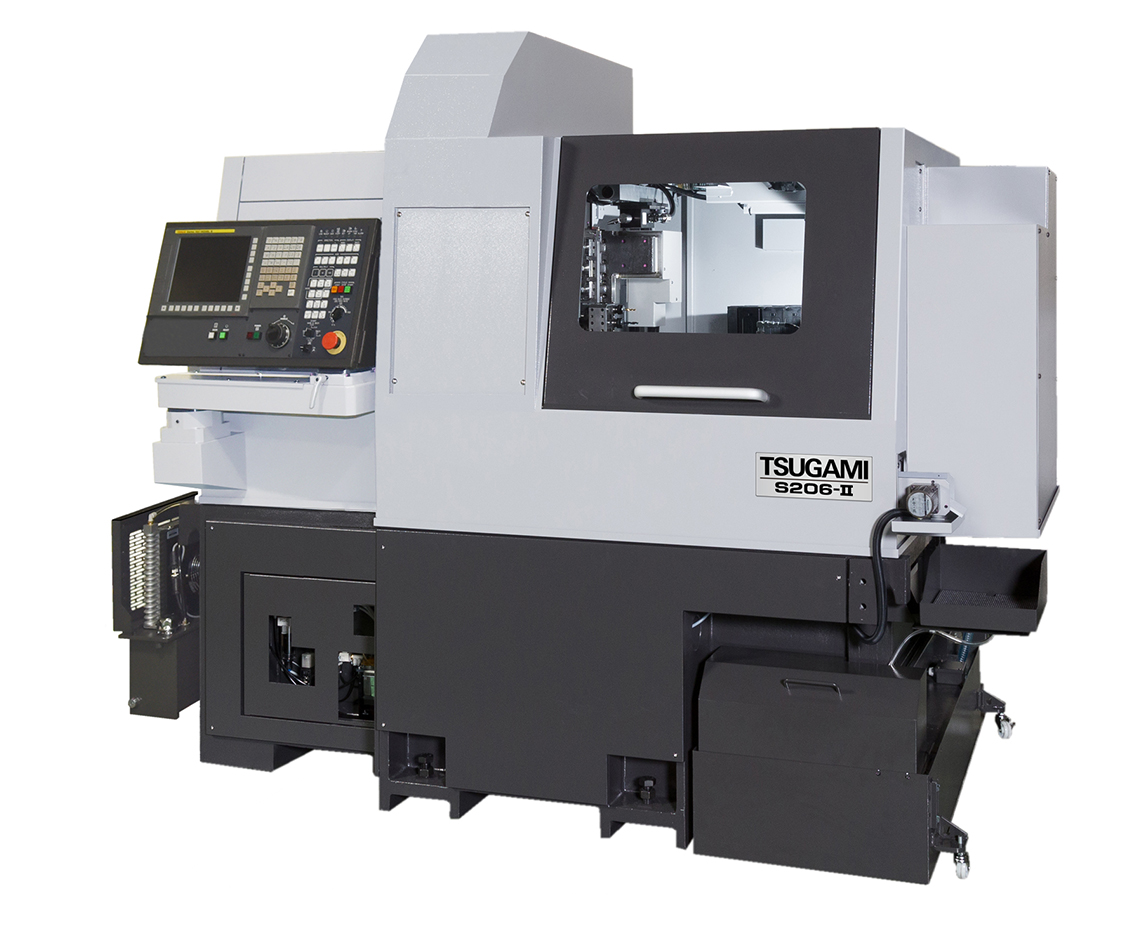

S206-II
Opposed Gang Tool
S206-II
Travels
Max Headstock Stroke
|
250 mm (9.8 in)
|
Number of Axes
|
6
|
Rapid Traverse Rate
|
35 m/min. (1,378 in/min.)
|
Capacity
Max Bar Diameter (Main)
|
⌀20 mm (0.8 in)
|
Max Bar Diameter (Sub)
|
⌀20 mm (0.8 in)
|
Max Machining Length (Stationary Guide)
|
250 mm (9.8 in)
|
Max Machining Length (Direct-Drive Rotary Guide)
|
210 mm (8.3 in.)
|
Max Machining Length (Carrier Rotary Guide)
|
80 mm (3.1 in.)
|
Max Machining Length (Guide-Bushless)
|
45 mm (1.8 in.)
|
Spindle
Speed (Main)
|
10,000 rpm
|
Speed (Sub)
|
10,000 rpm
|
Power
|
2.2/3.7 kW (2.9/5 Hp)
|
Tooling
Tool Capacity
|
31/45
|
Tool Size
|
12 x 12 mm (0.5 in.)
|
Live Tool Speed
|
10,000 rpm
|
Machine Size & Weight
Length
|
1,270 mm (50 in.)
|
Height
|
1,970 mm (77.5 in.)
|
Width
|
2,325 mm (91.5 in.)
|
Weight
|
3,750 kg (8,267.3 lbs.)
|
