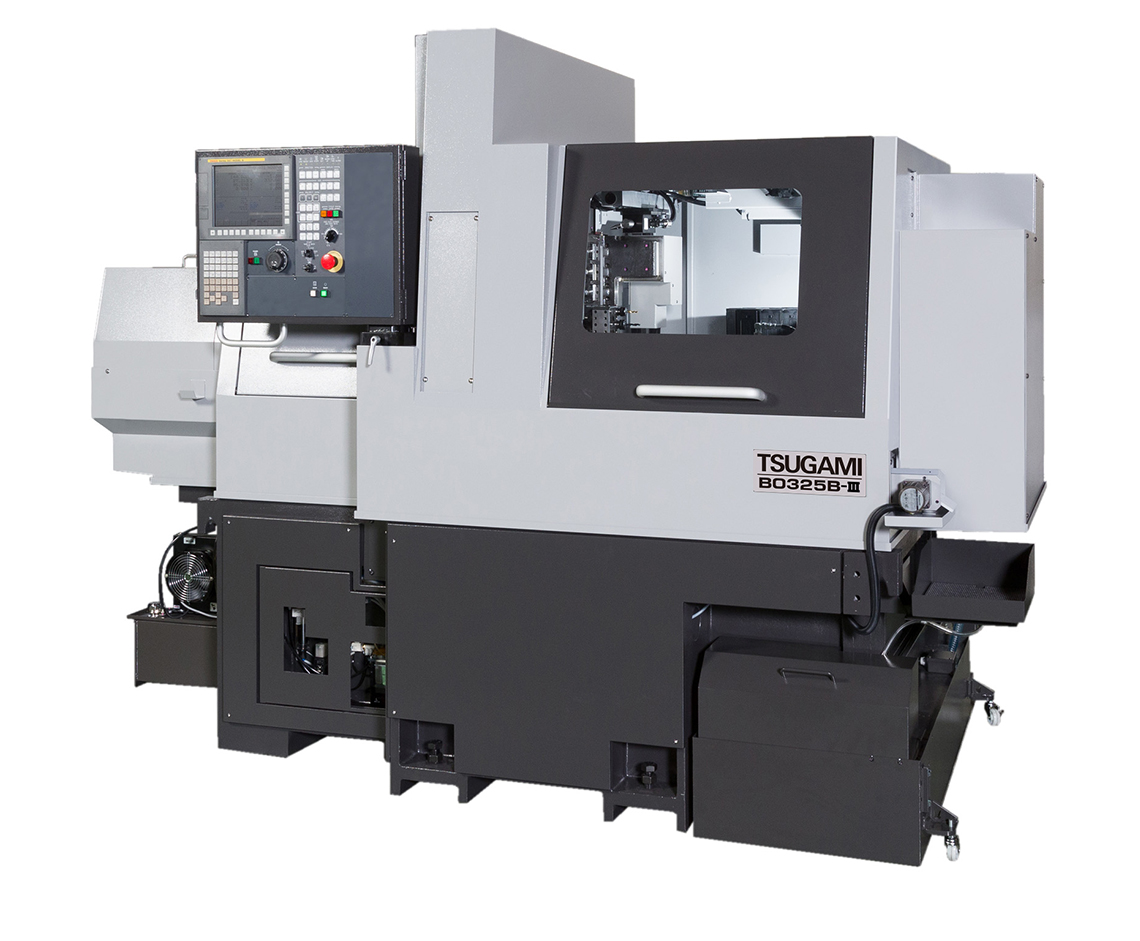

B0325B-III

Opposed Gang Tool

Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.

B0325B-III

Travels
Max Headstock Stroke
330 mm (13 in.)
Number of Axes
5
Rapid Traverse Rate
35 m/min. (1,378 in/min.)
Capacity
Max Bar Diameter (Main)
⌀32 mm (1.3 in)
Max Bar Diameter (Sub)
⌀32 mm (1.3 in)
Max Machining Length
330 mm (13 in.)
Spindle
Speed (Main)
8,000 rpm
Speed (Sub)
8,000 rpm
Power
2.2/3.7 kW (2.9/5 Hp)
Tooling
Tool Capacity
31
Tool Size
12 x 12 mm (0.5 in.)
Live Tool Speed
6,000 rpm
Machine Size & Weight
Length
1,280 mm (50.3 in)
Height
1,970 mm (77.5 in.)
Width
2,628 mm (103.5 in.)
Weight
4,000 kg (8,818 lbs.)
