Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

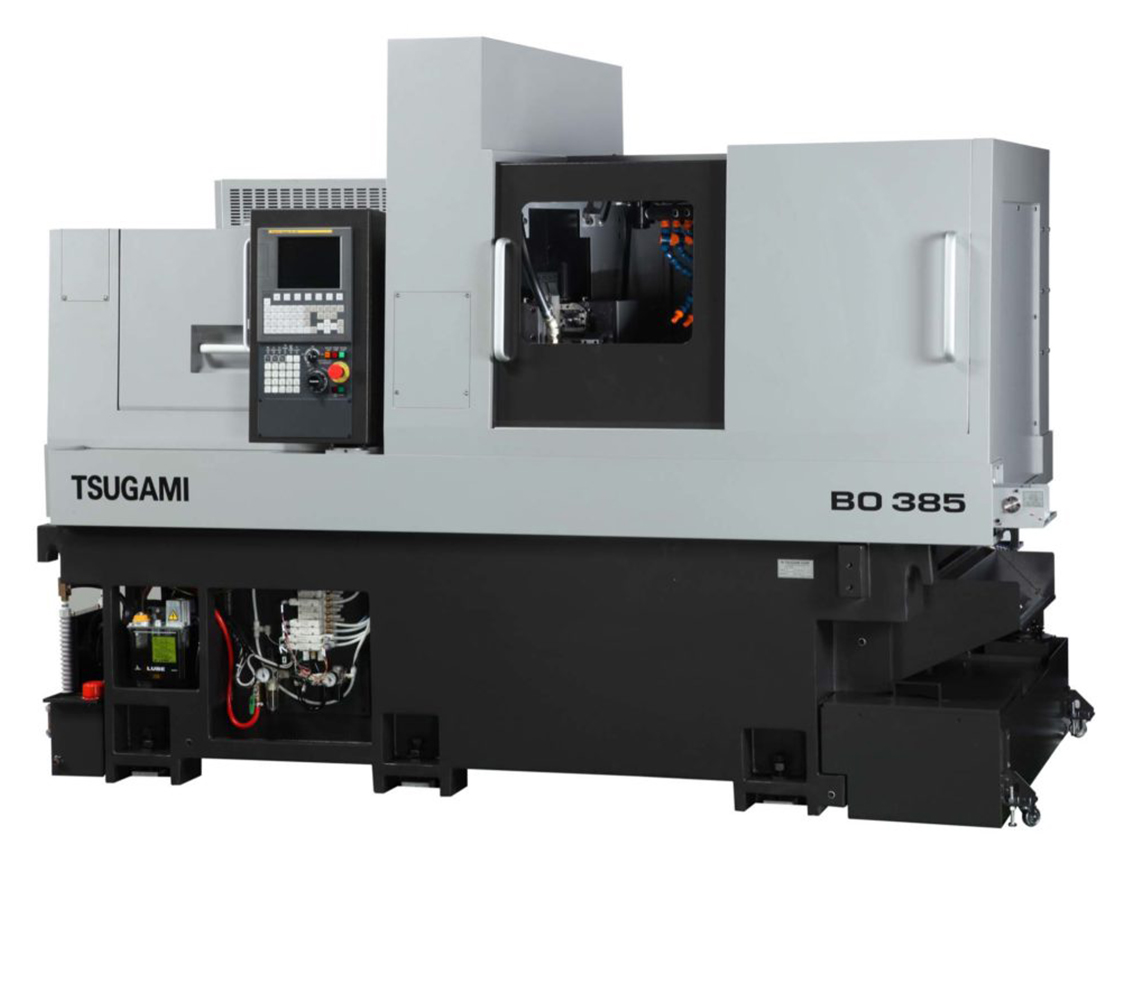

B0385-II
Opposed Gang Tool
B0385-II
Travels
Max Headstock Stroke
|
250 mm (9.8 in)
|
Number of Axes
|
5
|
Capacity
Max Bar Diameter
|
Ø38 mm (1.5 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
No
|
Spindle
Speed (Main)
|
200-6000 rpm
|
Speed (Sub)
|
200-7000 rpm
|
Power
|
7.5/11 kW (10.1/14.7 Hp)
|
Tooling
Tool Capacity
|
23/31
|
Live Tool Capacity
|
10-May
|
Live Tool Speed
|
5000 rpm
|
Machine Size
Length
|
1345 mm (52.9 in)
|
Height
|
1970 mm (77.5 in)
|
Width
|
2520 mm (99.2 in)
|
