Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

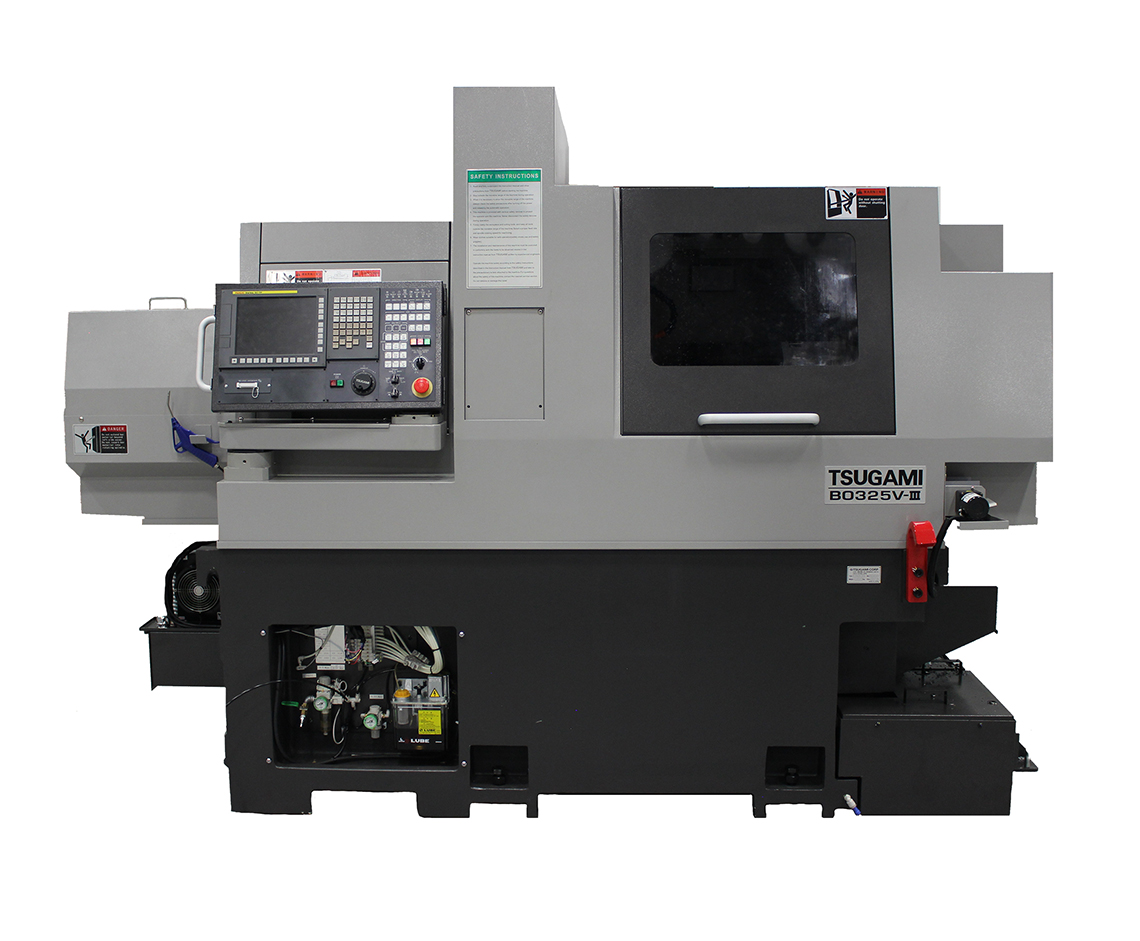

B0325V-III

Opposed Gang Tool
B0325V-III
Travels
Max Headstock Stroke
|
330 mm (13 in.)
|
Number of Axes
|
5
|
Capacity
Max Bar Diameter (Main)
|
⌀32 mm (1.3 in)
|
Max Bar Diameter (Sub)
|
⌀32 mm (1.3 in)
|
Max Machining Length
|
330 mm (13 in.)
|
Spindle
Speed (Main)
|
8,000 rpm
|
Speed (Sub)
|
8,000 rpm
|
Power (Main)
|
3.7/5.5 kW (5/7.4 Hp)
|
Power (Sub)
|
2.2/3.7 kW (2.9/4.9 Hp)
|
Tooling
Tool Capacity
|
29
|
Max Tool Size
|
100 x 100 mm (0.62 x 0.62 in.)
|
Live Tool Speed
|
6,000 rpm
|
Machine Size & Weight
Length
|
1,515 mm (60 in.)
|
Height
|
2,050 mm (81 in.)
|
Width
|
2,240 mm (88 in.)
|
Weight
|
4,850 kg (10,694 lbs.)
|
