Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.
You are here

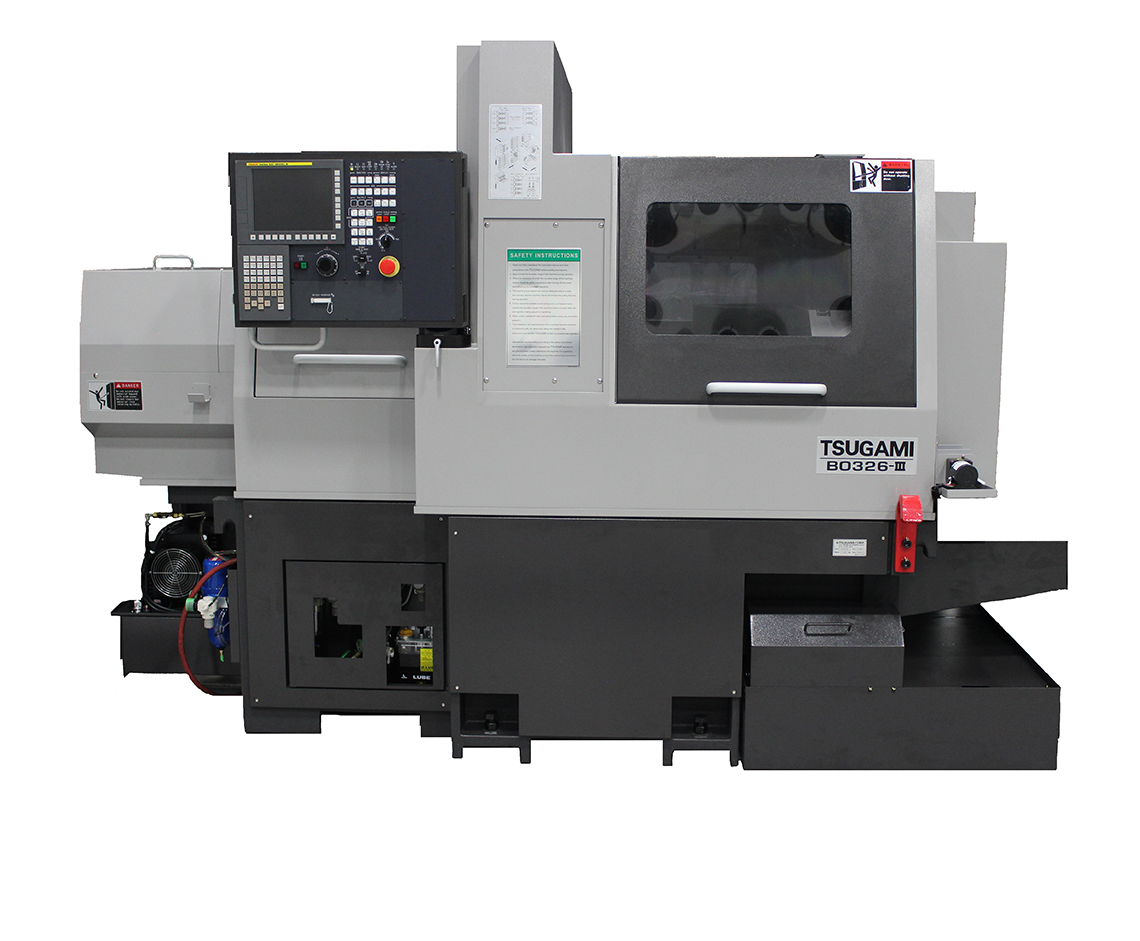

B0326-III
Opposed Gang Tool
B0326-III
Travels
Max Headstock Stroke
|
330 mm (13 in.)
|
Number of Axes
|
6
|
Rapid Traverse Rate
|
35 m/min. (1,378 in/min.)
|
Capacity
Max Bar Diameter (Main)
|
⌀32 mm (1.3 in)
|
Max Bar Diameter (Sub)
|
⌀32 mm (1.3 in)
|
Max Machining Length (Direct-Drive Guide)
|
330 mm (13 in.)
|
Max Machining Length (Chucker Mode)
|
70 mm (2.76 in.)
|
Spindle
Speed (Main)
|
8,000 rpm
|
Speed (Sub)
|
8,000 rpm
|
Power
|
3.7/5.5 kW (5/7.4 Hp)
|
Tooling
Tool Capacity
|
34
|
Max Tool Diameter (Round)
|
⌀25 mm (1 in.)
|
Tool Size (Square)
|
12 x 12 mm (0.62 x 0.62 in.)
|
Max Tool Length
|
100 mm (3.94 in.)
|
Live Tool Speed
|
6,000 rpm
|
Machine Size & Weight
Length
|
1,280 mm (50.4 in.)
|
Height
|
1,970 mm (77.5 in.)
|
Width
|
2,628 mm (103.5 in.)
|
Weight
|
4,000 kg (8,818 lbs.)
|
