H 5000

H Series

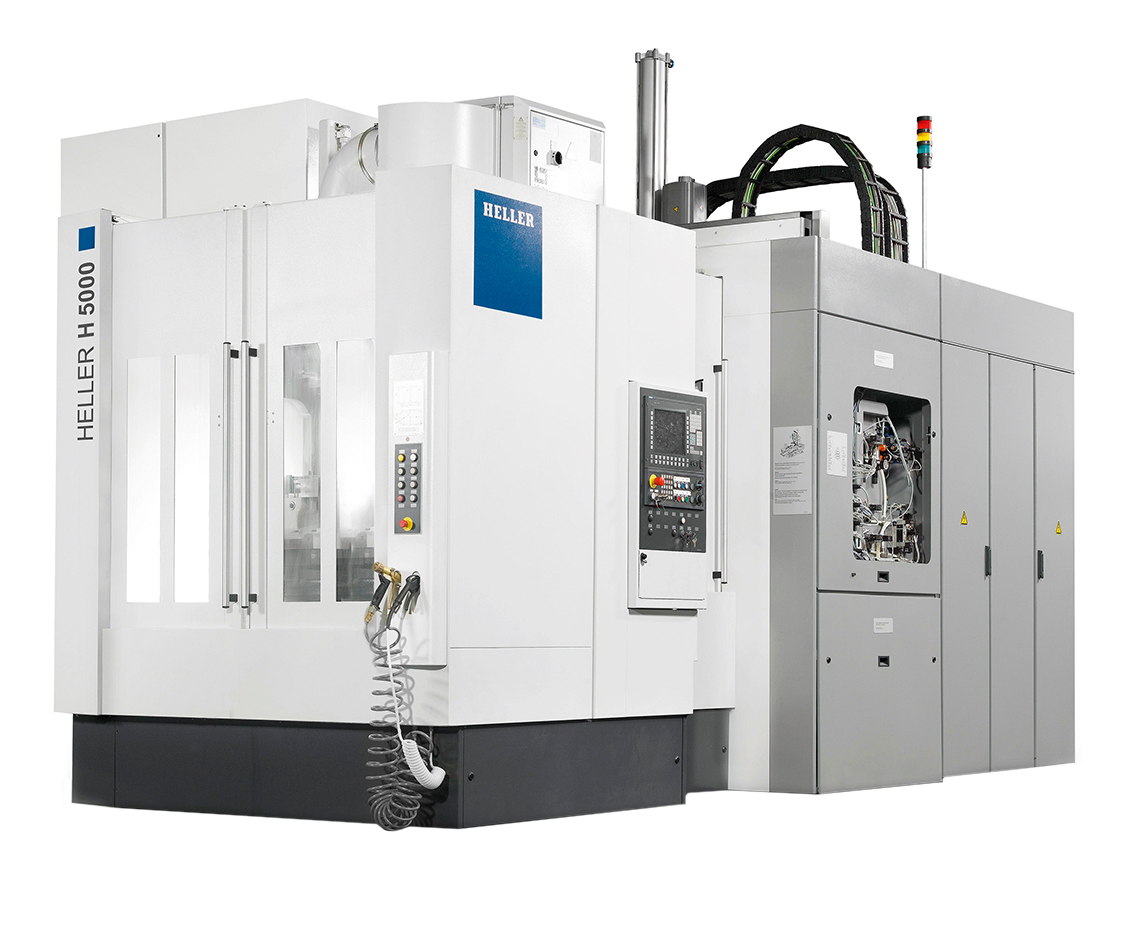

The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.

H 5000

Travels
Travel Distance X-axis
800 mm (31.5 in.)
Travel Distance Y-axis
800 mm (31.5 in.)
Travel Distance Z-axis
800 mm (31.5 in.)
Rapid Traverse X-axis
50/65 m/min. (1,968.5/2,559.1 in/min.)
Rapid Traverse Y-axis
50/65 m/min. (1,968.5/2,559.1 in/min.)
Rapid Traverse Z-axis
50/65 m/min. (1,968.5/2,559.1 in/min.)
Table
Table Size
630 x 630 mm (24.8 x 24.8 in.)
Max Part Size
⌀900 x 1,090 mm (28.3 x 42.9 in.)
Max Part Height
1,000 mm (39.4 in.)
Max Load
1,000/1,400 kg (2,204/3,086 lbs.)
Spindle
Speed
6,000/8,000/12,500 rpm
Power
38/43/52/60 kW (50.9/57.7/69.7/80.5 Hp)
Torque
166/242/822/1,146/2,292 Nm (122.4/178.5/606.3/845.2/1690.5 ft-lbs.)
Tooling
Shank
SK40/HSK-A 63/BT40
Changer Capacity
50/100/150/265/425
Max Diameter
⌀280 mm (11 in.)
Max Length
600 mm (23.6 in.)
Machine Size
Length
7,250 mm (285.4 in.)
Height
3,900 mm (137.8 in.)
Width
3,250 mm (120.1 in.)
