H 14000

H Series

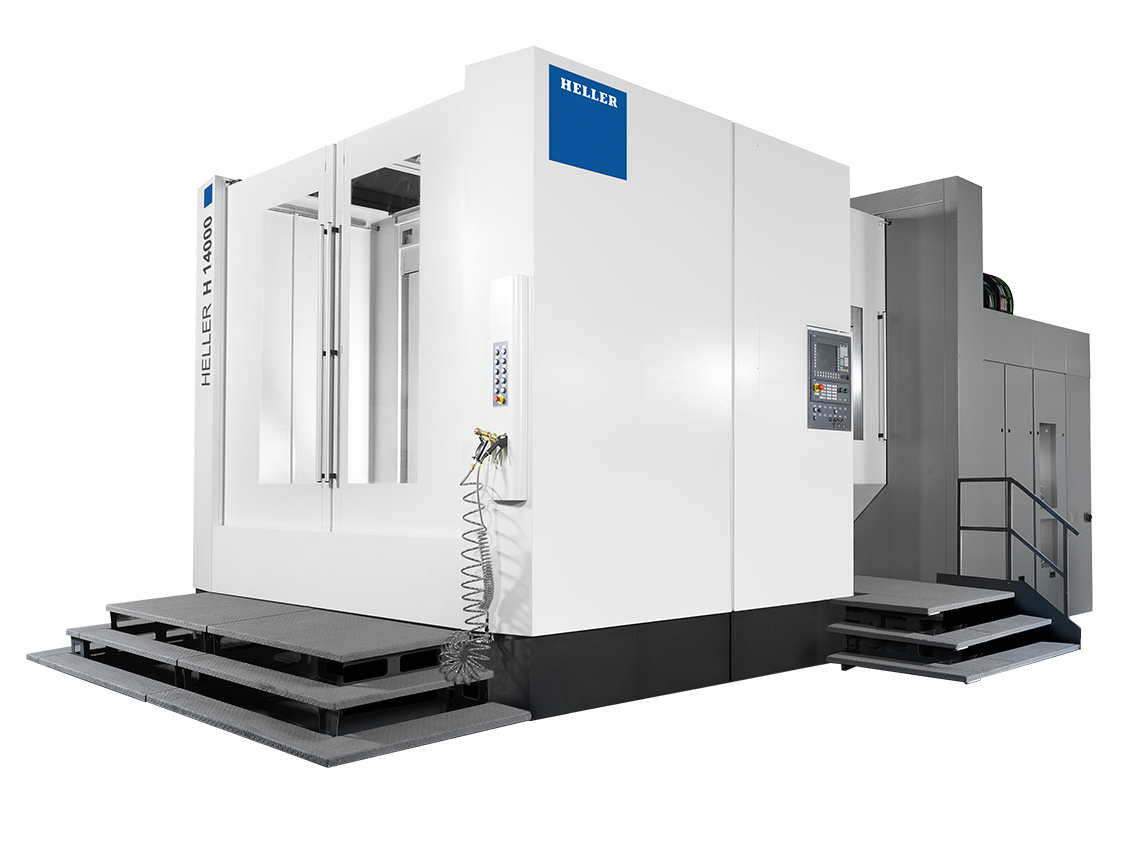

The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.

H 14000

Travels
Travel Distance X-axis
2,400 mm (94.5 in.)
Travel Distance Y-axis
1,600 mm (63 in.)
Travel Distance Z-axis
1,600 mm (63 in.)
Rapid Traverse X-axis
41 m/min. (1,614.2 in/min.)
Rapid Traverse Y-axis
45 m/min. (1,771.6 in/min.)
Rapid Traverse Z-axis
45 m/min. (1,771.6 in/min.)
Table
Table Size
1,000 x 1,000 mm (39.4 x 39.4 in.)
Max Part Size
⌀1,400/1,650 x 2,690 mm (⌀55.1/64.9 x 105.9 in.)
Max Part Height
1,800 mm (70.9 in.)
Max Load
4,000 kg (8,818 lbs.)
Spindle
Speed
6,000/8,000/12,500 rpm
Power
38/43/52/60 kW (50.9/57.7/69.7/80.5 Hp)
Torque
166/242/822/1,146/2,292 Nm (122.4/178.5/606.3/845.2/1690.5 ft-lbs.)
Tooling
Shank
SK50/HSK-A 100/BT50
Changer Capacity
50/100/150/265/425
Max Diameter
⌀280 mm (11 in.)
Max Length
600/800 mm (23.6/31.5 in.)
Machine Size
Length
10,150 mm (399.6 in.)
Height
5,300 mm (208.7 in.)
Width
8,350 mm (328.7 in.)
