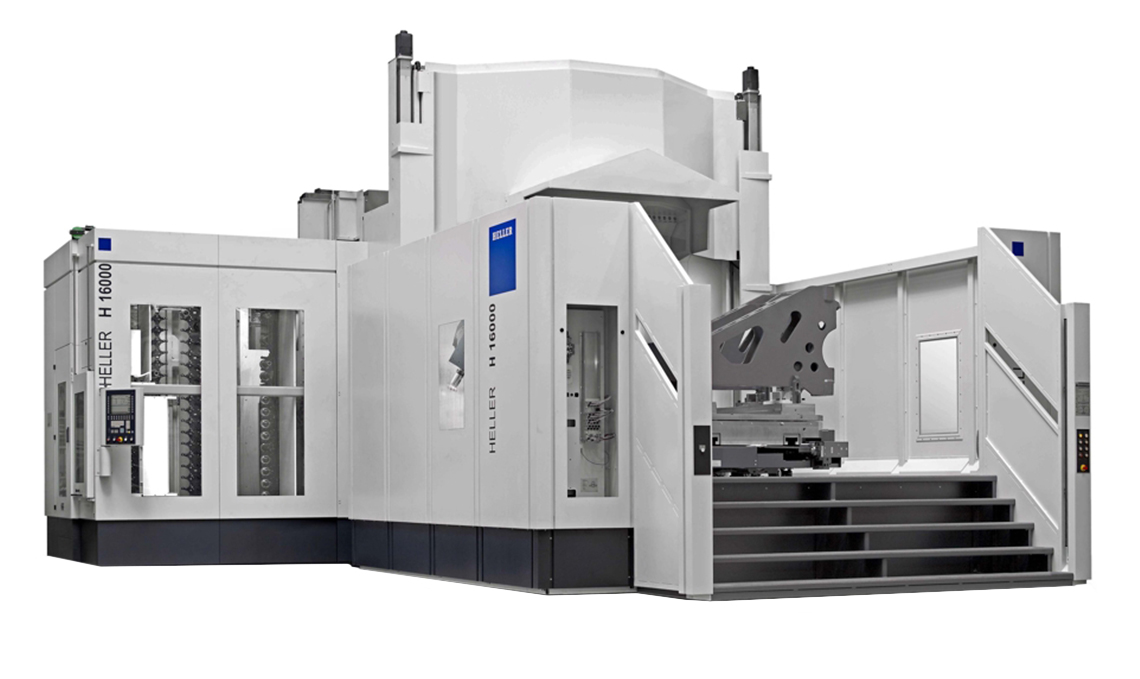

The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.
You are here
H 16000
H Series
H 16000
Travels
Travel Distance X-axis
|
2,400 mm (94.5 in.)
|
Travel Distance Y-axis
|
1,600 mm (63 in.)
|
Travel Distance Z-axis
|
1,600 mm (63 in.)
|
Rapid Traverse X-axis
|
41 m/min. (1,614.2 in/min.)
|
Rapid Traverse Y-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Z-axis
|
45 m/min. (1,771.6 in/min.)
|
Table
Table Size
|
1,250 x 1,600 mm (49.2 x 63 in.)
|
Max Part Size
|
⌀2,000/2,000 x 2,690 mm (⌀78.7/78.7 x 105.9 in.)
|
Max Part Height
|
1,725 mm (67.9 in.)
|
Max Load
|
8,000 kg (17,637 lbs.)
|
Spindle
Speed
|
6,000/8,000/12,500 rpm
|
Power
|
38/43/52/60 kW (50.9/57.7/69.7/80.5 Hp)
|
Torque
|
166/242/822/1,146/2,292 Nm (122.4/178.5/606.3/845.2/1690.5 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600/800 mm (23.6/31.5 in.)
|
Machine Size
Length
|
13,000 mm (511.8 in.)
|
Height
|
5,300 mm (208.7 in.)
|
Width
|
8,350 mm (328.7 in.)
|
