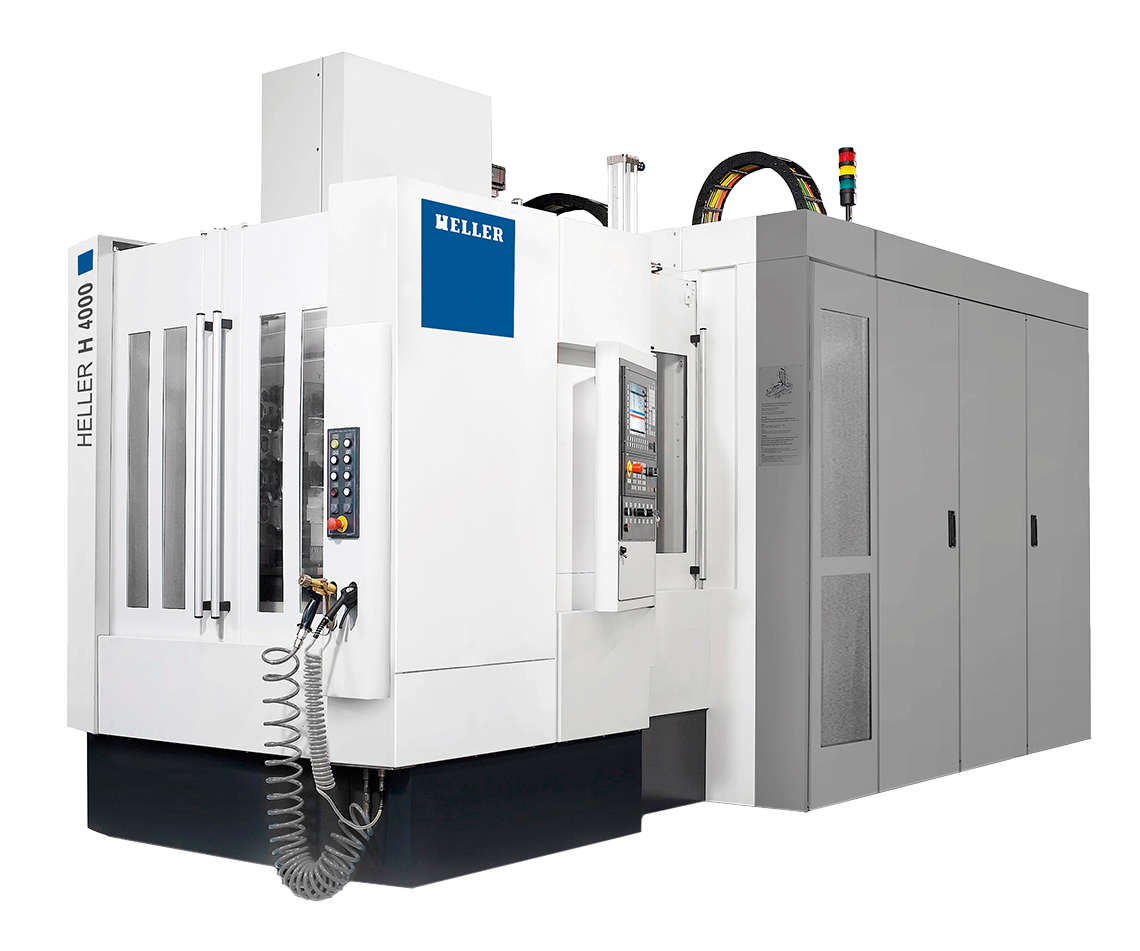

The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.
You are here
H 4000
H Series
H 4000
Travels
Travel Distance X-axis
|
800 mm (31.5 in.)
|
Travel Distance Y-axis
|
800 mm (31.5 in.)
|
Travel Distance Z-axis
|
800 mm (31.5 in.)
|
Rapid Traverse X-axis
|
65/90 m/min. (2,559.1/3,543.3 in/min.)
|
Rapid Traverse Y-axis
|
65/90 m/min. (2,559.1/3,543.3 in/min.)
|
Rapid Traverse Z-axis
|
65/90 m/min. (2,559.1/3,543.3 in/min.)
|
Table
Table Size
|
500 x 630 mm (19.7 x 24.8 in.)
|
Max Part Size
|
⌀900/900 x 1,020 mm (⌀35.4/35.4 x 40.1 in.)
|
Max Part Height
|
1,000 mm (39.4 in.)
|
Max Load
|
800/1,400 kg (1,763/3,086 lbs.)
|
Spindle
Speed
|
10,000/16,000/24,000 rpm
|
Power
|
25/38/40 kW (33.5/50.9/53.6 Hp)
|
Torque
|
40/95/242 Nm (29.5/70.1/178.5 ft-lbs.)
|
Tooling
Shank
|
SK40/HSK-A 63/BT40
|
Changer Capacity
|
54/80/160/240/409
|
Max Diameter
|
⌀160/188 mm (6.3/7.4 in.)
|
Max Length
|
450 mm (17.7 in.)
|
Machine Size
Length
|
6,650 mm (261.8 in.)
|
Height
|
3,500 mm (137.8 in.)
|
Width
|
3,050 mm (120.1 in.)
|
