The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.
You are here

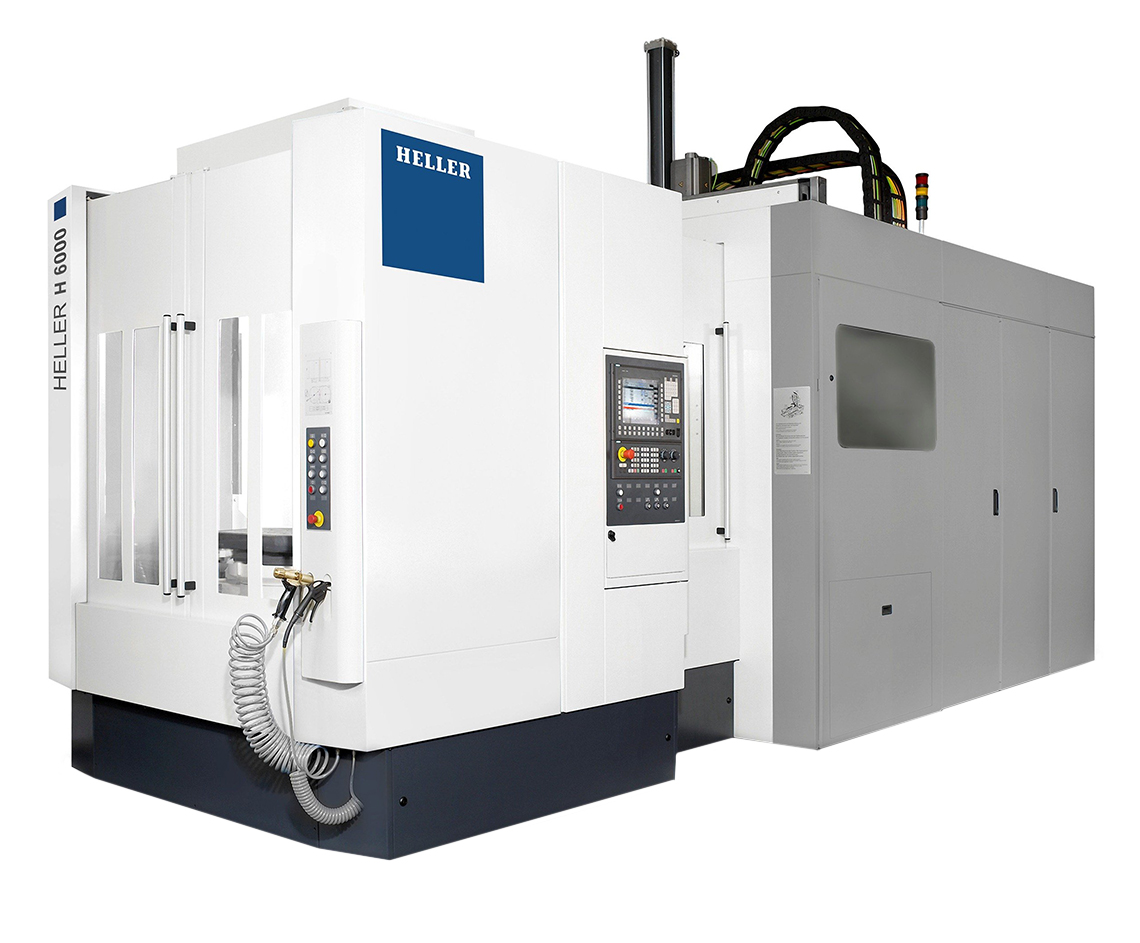

H 6000
H Series
H 6000
Travels
Travel Distance X-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Y-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Z-axis
|
1,000 mm (39.4 in.)
|
Rapid Traverse X-axis
|
50/65 m/min. (1,968.5/2,559.1 in/min.)
|
Rapid Traverse Y-axis
|
50/65 m/min. (1,968.5/2,559.1 in/min.)
|
Rapid Traverse Z-axis
|
50/65 m/min. (1,968.5/2,559.1 in/min.)
|
Table
Table Size
|
630 x 630 mm (24.8 x 24.8 in.)
|
Max Part Size
|
⌀1,000/1000 x 1,290 mm (⌀39.4/39.4 x 50.8 in.)
|
Max Part Height
|
1,200 mm (47.2 in.)
|
Max Load
|
1,000/1,400 kg (2,204/3,086 lbs.)
|
Spindle
Speed
|
6,000/8,000/12,500 rpm
|
Power
|
38/43/52/60 kW (50.9/57.7/69.7/80.5 Hp)
|
Torque
|
166/242/822/1,146/2,292 Nm (122.4/178.5/606.3/845.2/1690.5 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600 mm (23.6 in.)
|
Machine Size
Length
|
7,600 mm (299.2 in.)
|
Height
|
4,300 mm (169.3 in.)
|
Width
|
3,450 mm (135.8 in.)
|
