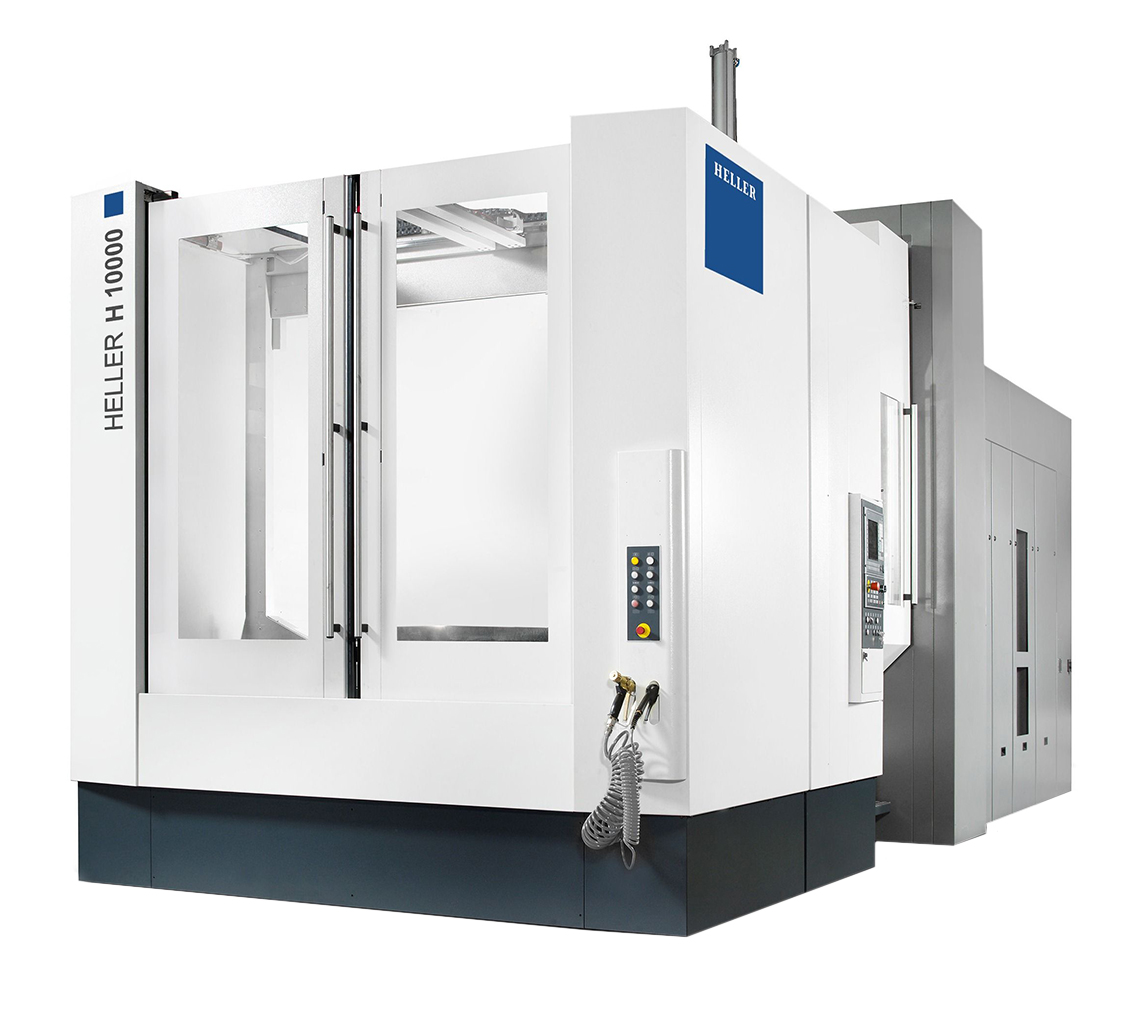

The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.
You are here
H 10000
H Series
H 10000
Travels
Travel Distance X-axis
|
1,600 mm (63 in.)
|
Travel Distance Y-axis
|
1,400 mm (55.1 in.)
|
Travel Distance Z-axis
|
1,300 mm (51.2 in.)
|
Rapid Traverse X-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Y-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Z-axis
|
45 m/min. (1,771.6 in/min.)
|
Table
Table Size
|
1,000 x 1,000 mm (39.4 x 39.4 in.)
|
Max Part Size
|
⌀1,400/1,400 x 1,890 mm (⌀55.1/55.1 x 74.4 in.)
|
Max Part Height
|
1,600 mm (63 in.)
|
Max Load
|
4,000 kg (8,818 lbs.)
|
Spindle
Speed
|
6,000/8,000/12,500 rpm
|
Power
|
38/43/52/60 kW (50.9/57.7/69.7/80.5 Hp)
|
Torque
|
166/242/822/1,146/2,292 Nm (122.4/178.5/606.3/845.2/1690.5 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600/800 mm (23.6/31.5 in.)
|
Machine Size
Length
|
9,600 mm (377.9 in.)
|
Height
|
4,950 mm (194.9 in.)
|
Width
|
7,300 mm (287.4 in.)
|
