The H Series 4-axis horizontal machining center from HELLER offers highly productive machining in a diverse range of applications. The H Series features high table load capacity, reduced energy consumption, extended tool life, high performance and precision machining, and is capable of handling a dynamic range of batch sizes, part sizes, and materials. Additionally, The H Series offers options for fully customizable spindle, spindle taper, tool magazine, and chip disposal.
You are here

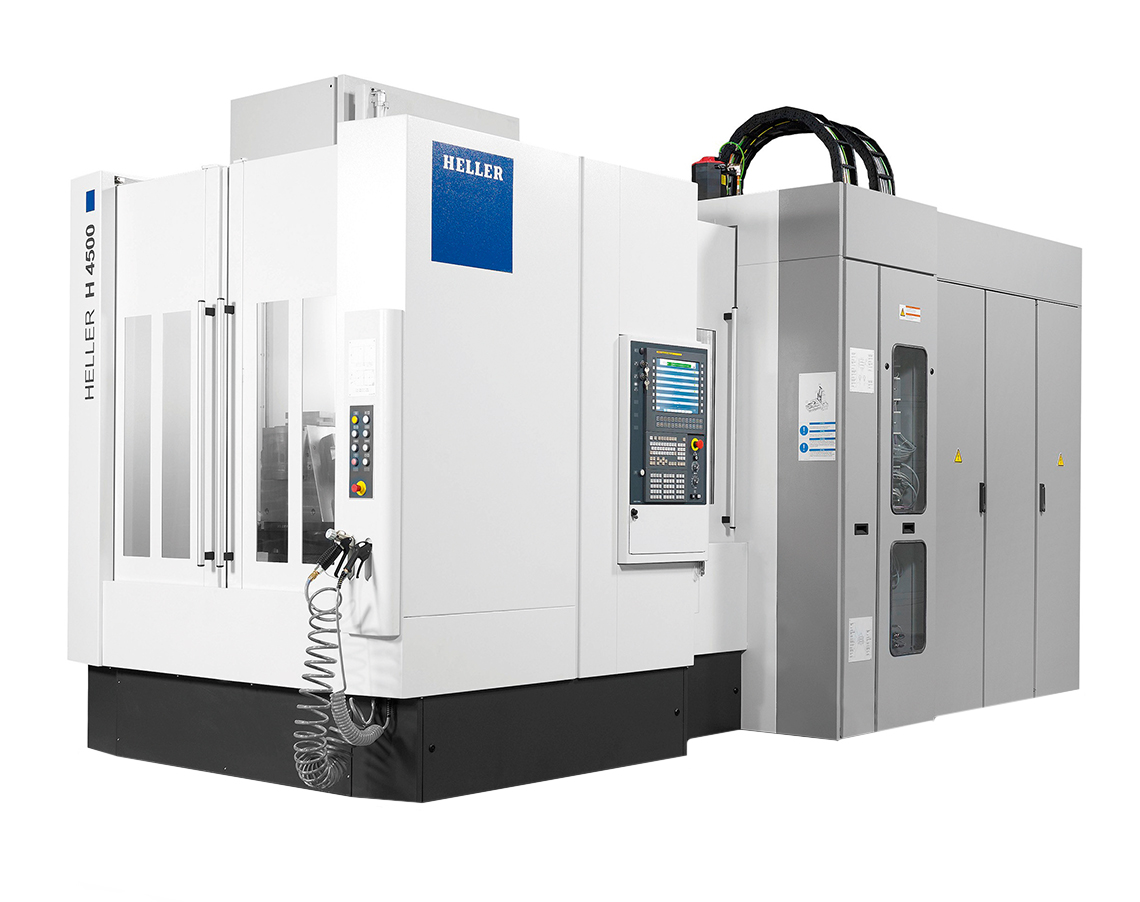

H 4500
H Series
H 4500
Travels
Travel Distance X-axis
|
800 mm (31.5 in.)
|
Travel Distance Y-axis
|
800 mm (31.5 in.)
|
Travel Distance Z-axis
|
800 mm (31.5 in.)
|
Rapid Traverse X-axis
|
65 m/min. (2,559.1 in/min.)
|
Rapid Traverse Y-axis
|
65 m/min. (2,559.1 in/min.)
|
Rapid Traverse Z-axis
|
65 m/min. (2,559.1 in/min.)
|
Table
Table Size
|
500 x 630 mm (19.7 x 24.8 in.)
|
Max Part Size
|
⌀900/900 x 1,090 mm (⌀35.4/35.4 x 42.9 in.)
|
Max Part Height
|
1,000 mm (39.4 in.)
|
Max Load
|
1,400 kg (3,086 lbs.)
|
Spindle
Speed
|
12,500 rpm
|
Power
|
38/52/55 kW (50.9/69.7/73.7 Hp)
|
Torque
|
166/242/400 Nm (122.4/178.5/295 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600 mm (23.6 in.)
|
Machine Size
Length
|
7,250 mm (285.4 in.)
|
Height
|
3,650 mm (143.7 in.)
|
Width
|
3,300 mm (129.9 in.)
|
