DN Solutions (formerly Doosan Machine Tools) offers one of the most customizable boring machine lines in the industry with the DBC series. Ranging from the compact to the super-size models, these horizontal boring machines can handle middle to large sized parts with convenience and efficiency. With available configurations according to spindle diameter, extended stroke and more, the DBC will simplify your production and boost your machining capacity.
You are here

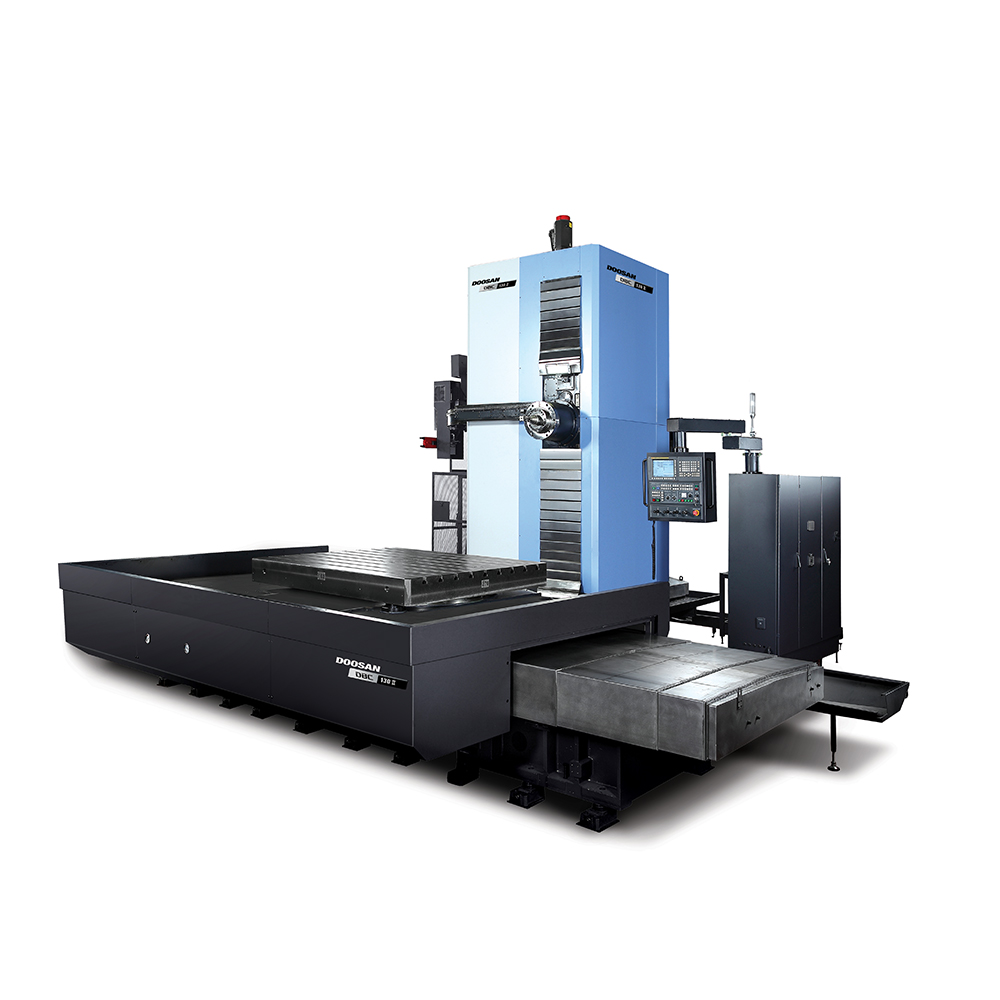

DBC 110 II
DBC Series
DBC 110 II
Travels
Travel Distance X-axis
|
2500 mm (98.4 in)
|
Travel Distance Y-axis
|
2000 mm (78.7 in)
|
Travel Distance Z-axis
|
1500 mm (59 in)
|
Travel Distance W-axis
|
550 mm (21.6 in)
|
Rapid Traverse X-axis
|
12 m/min (472 in/min)
|
Rapid Traverse Y-axis
|
12 m/min (472 in/min)
|
Rapid Traverse Z-axis
|
12 m/min (472 in/min)
|
Rapid Traverse W-axis
|
6 m/min (236 in/min)
|
Table
Table Size
|
1400 x 1800 mm (55.1 x 70.8 in)
|
Max Part Diameter
|
⌀3400 mm (133 in)
|
Max Load
|
10000 kg (22046 lbs)
|
Spindle
Speed
|
4000 rpm
|
Power
|
30 kW (40.2 Hp)
|
Torque
|
3259 Nm (2405 ft-lbs)
|
Spindle to Table Distance
|
550-2050 mm (21.6-80.7 in)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
60
|
Max Diameter
|
⌀130/250 mm (5.1/9.8 in)
|
Max Length
|
600 mm (23.6 in)
|
Machine Size & Weight
Length
|
6,980 mm (274.8 in.)
|
Height
|
4,862 mm (191.4 in.)
|
Width
|
7,657 mm (301.5 in.)
|
Weight
|
36,000 kg (79,366 lbs.)
|
