DN Solutions (formerly Doosan Machine Tools) offers one of the most customizable boring machine lines in the industry with the DBC series. Ranging from the compact to the super-size models, these horizontal boring machines can handle middle to large sized parts with convenience and efficiency. With available configurations according to spindle diameter, extended stroke and more, the DBC will simplify your production and boost your machining capacity.
You are here

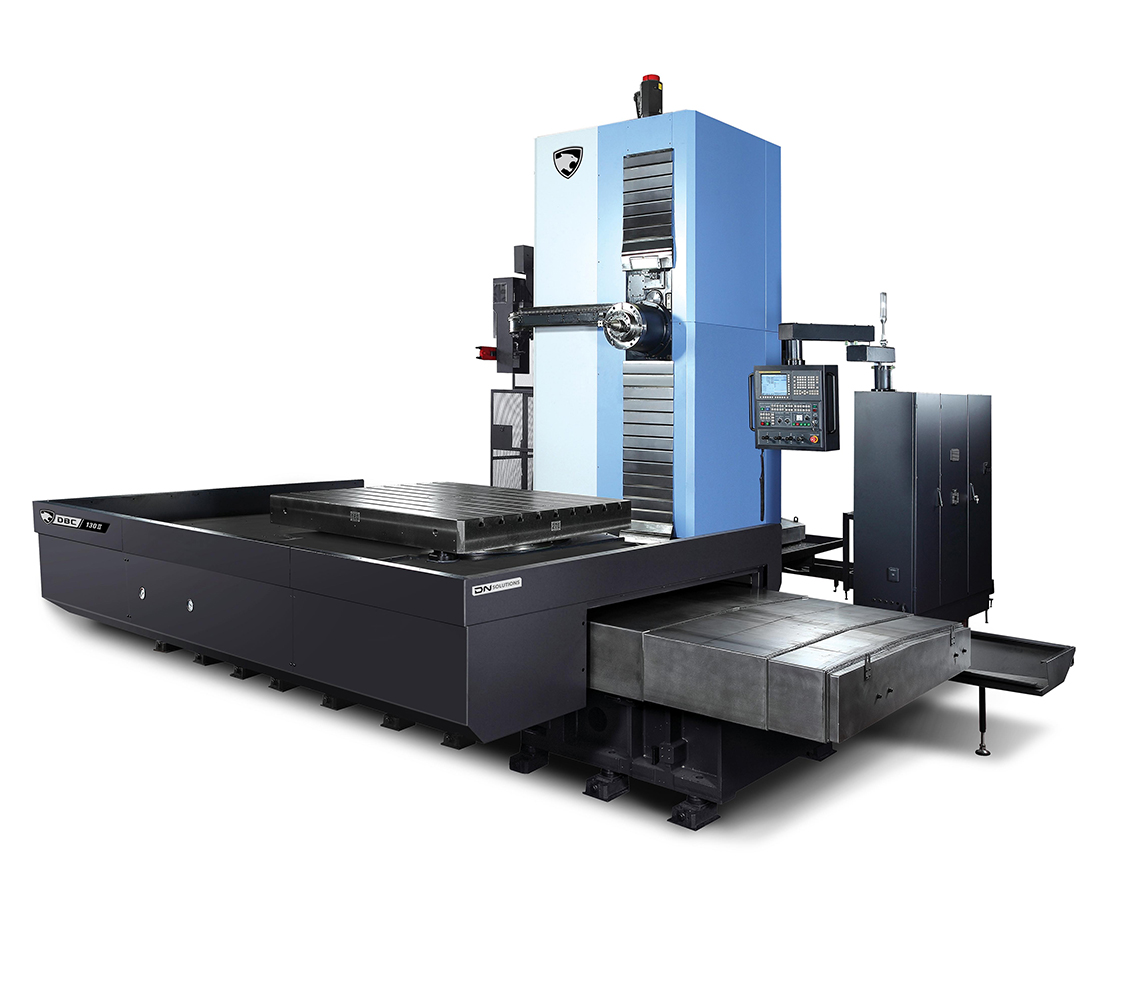

DBC 130L II
DBC Series
DBC 130L II
Travels
Travel Distance X-axis
|
4000 mm (157.5 in)
|
Travel Distance Y-axis
|
2500 mm (98.4 in)
|
Travel Distance Z-axis
|
2000 mm (78.7 in)
|
Travel Distance W-axis
|
700 mm (27.5 in)
|
Rapid Traverse X-axis
|
10 m/min (394 in/min)
|
Rapid Traverse Y-axis
|
8 m/min (315 in/min)
|
Rapid Traverse Z-axis
|
10 m/min (394 in/min)
|
Rapid Traverse W-axis
|
6 m/min (236 in/min)
|
Table
Table Size
|
1600 x 1800 mm (63 x 70.8 in)
|
Max Part Diameter
|
⌀4800 mm (188.9 in)
|
Max Load
|
15000 kg (33075 lbs)
|
Spindle
Speed
|
2500 rpm
|
Power
|
45 kW (60 hp)
|
Torque
|
3684 Nm (2717 ft-lbs)
|
Spindle to Table Distance
|
700-2700 mm (27.6-106.3 in)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
60
|
Max Diameter
|
⌀130/250 mm (5.1/9.8 in)
|
Max Length
|
600 mm (23.6 in)
|
Machine Size & Weight
Length
|
8,085 mm (318.3 in.)
|
Height
|
5,406 mm (212.8 in.)
|
Width
|
10,438 mm (410.9 in.)
|
Weight
|
48,700 kg (107,365 lbs.)
|
