DN Solutions (formerly Doosan Machine Tools) offers one of the most customizable boring machine lines in the industry with the DBC series. Ranging from the compact to the super-size models, these horizontal boring machines can handle middle to large sized parts with convenience and efficiency. With available configurations according to spindle diameter, extended stroke and more, the DBC will simplify your production and boost your machining capacity.
You are here

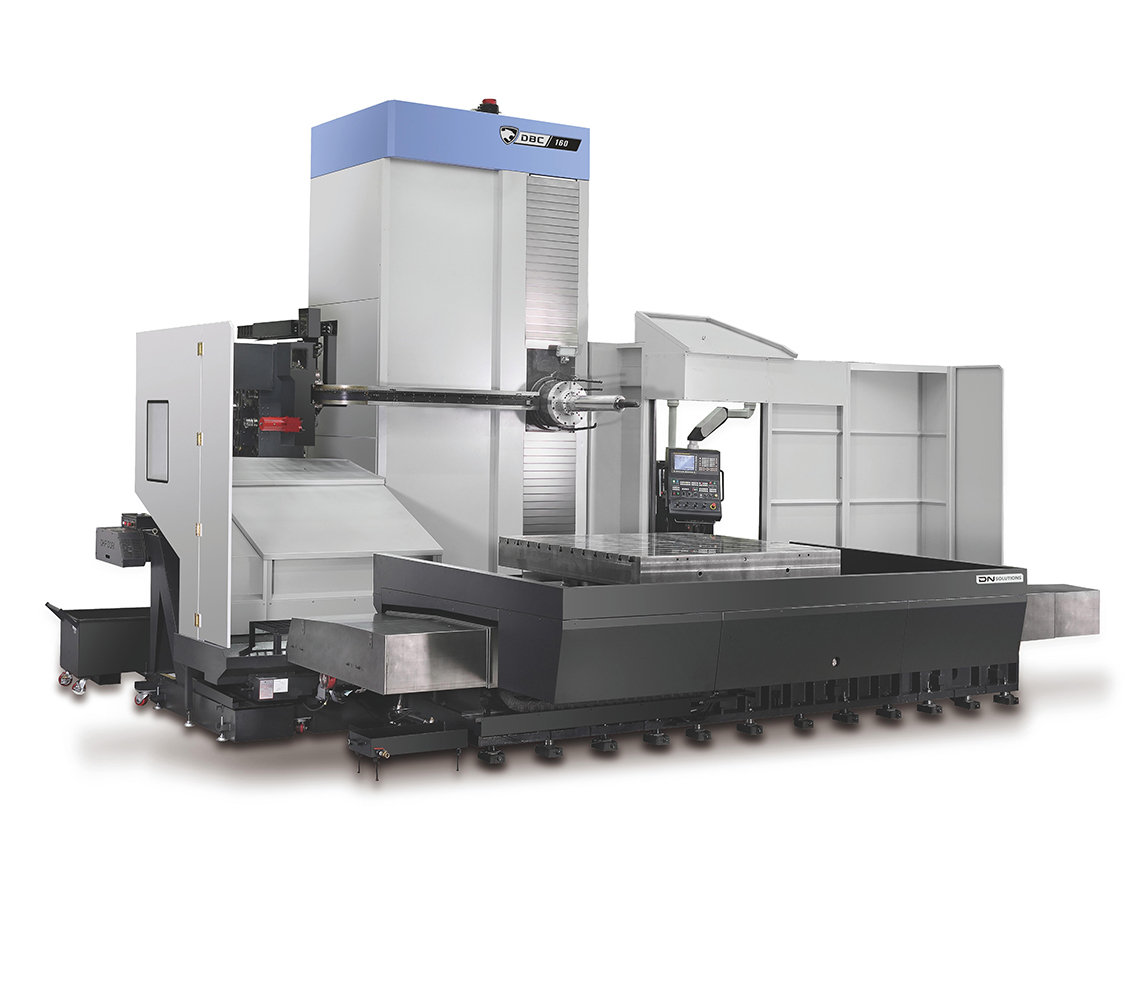

DBC 160
DBC Series
DBC 160
Travels
Travel Distance X-axis
|
4,000 mm (157.5 in.)
|
Travel Distance Y-axis
|
2,500 mm (98.4 in.)
|
Travel Distance Z-axis
|
1,600 mm (63 in.)
|
Travel Distance W-axis
|
800 mm (31.5 in.)
|
Rapid Traverse X-axis
|
10 m/min. (393 in./min.)
|
Rapid Traverse Y-axis
|
10 m/min. (393 in./min.)
|
Rapid Traverse Z-axis
|
10 m/min. (393 in./min.)
|
Rapid Traverse W-axis
|
6 m/min. (236 in./min.)
|
Table
Table Size
|
2,000 x 2,200 mm (78.7 x 86.6 in.)
|
Max Part Diameter
|
3,400/4,800 mm (133.8/188.9 in.)
|
Max Load
|
20,000 kg (44,092 lbs.)
|
Spindle
Speed
|
2,000 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
3,960 nm (2,920 ft-lbs.)
|
Spindle To Table Distance
|
850-2,450 mm (33.5-96.4 in.)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
60/90
|
Max Diameter
|
⌀130/250 mm (5.1/9.8 in.)
|
Max Length
|
600 mm (23.6 in.)
|
Machine Size & Weight
Length
|
9,000 mm (354.3 in.)
|
Height
|
6,150 mm (242.1 in.)
|
Width
|
7,900 mm (311 in.)
|
Weight
|
49,000 kg (108,026 lbs.)
|
