FP 4000

F Series

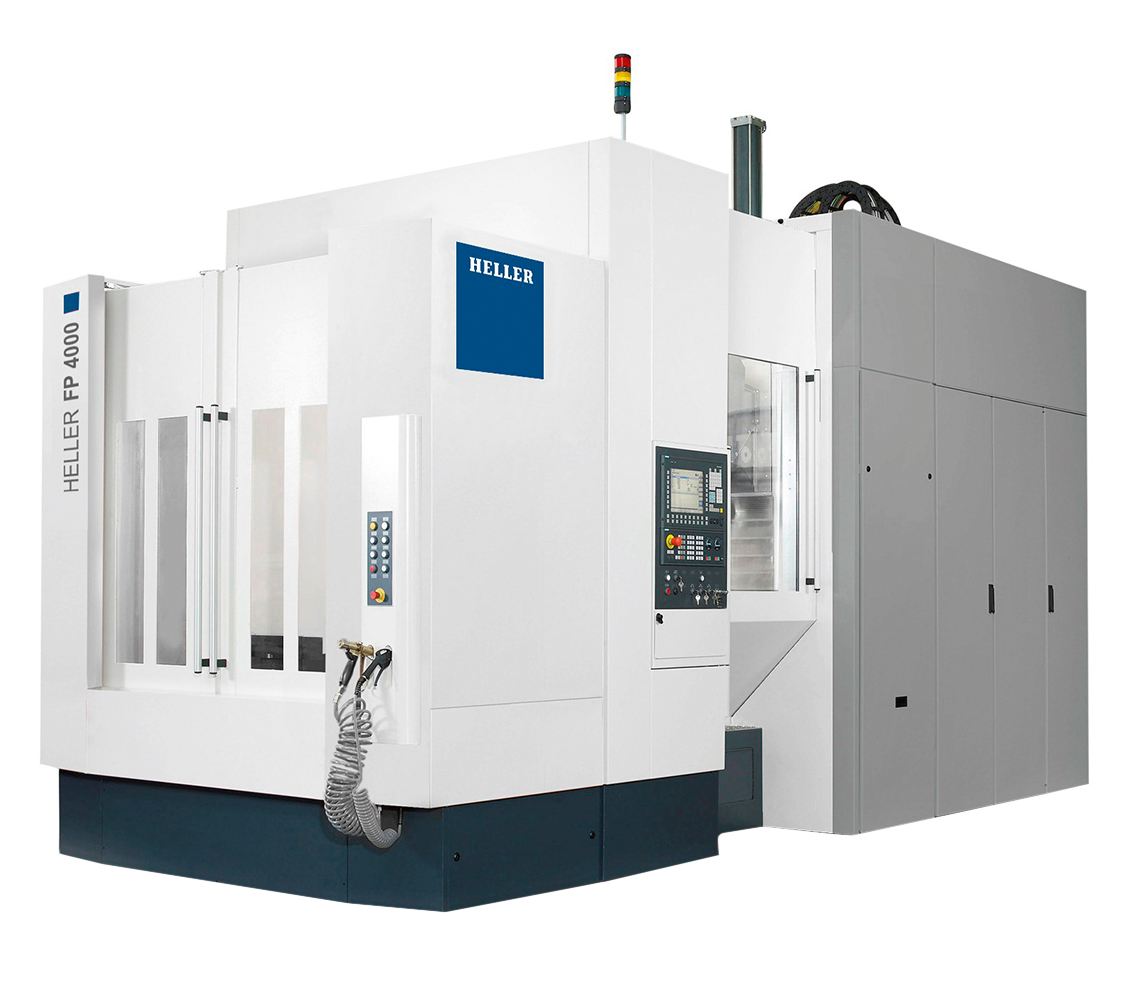

The F Series from HELLER features simultaneous 5-axis machining capabilities with options for singular direct load rotary table or high production palleted rotary table with automatic changer. The F Series, unlike the HF series features an angled or fork style headstock and non-swiveling table for enhanced rigidity and precision when machining harder materials like titanium.

FP 4000

Travels
Travel Distance X-axis
800 mm (31.5 in.)
Travel Distance Y-axis
800 mm (31.5 in.)
Travel Distance Z-axis
900/1,045 mm (27.9/41.1 in.)
Travel Distance A-axis (Tilting Head)
+30°/-120°
Travel Distance C-axis (Swivel Head)
+15°/-190°
Travel Distance B-axis
360°
Rapid Traverse X-axis
65 m/min. (2,559.1 in/min.)
Rapid Traverse Y-axis
65 m/min. (2,559.1 in/min.)
Rapid Traverse Z-axis
65 m/min. (2,559.1 in/min.)
Table
Table Size
500 x 630 mm (19.7 x 24.8 in.)
Max Part Size
⌀900/900 x 1,020 mm (⌀35.4/35.4 x 40.1 in.)
Max Part Height
1,000 mm (39.4 in.)
Max Load
1,400 kg (3,086 lbs.)
Spindle
Speed
10,000/16,000 rpm
Power
40/44/46 kW (53.6/59/61.7 Hp)
Torque
80/116/242 Nm (59/85.6/178.5 ft-lbs.)
Tooling
Shank
SK40/HSK-A 63/BT40
Changer Capacity
54/80/160/240/409
Max Diameter
⌀160/188 mm (6.3/7.4 in.)
Max Length
450 mm (17.7 in.)
Machine Size
Length
7,450 mm (293.3 in.)
Height
4,150 mm (163.4 in.)
Width
2,950 mm (116.1 in.)
