The C Series machining center takes out all the stops to minimize your set-up time by combining 5-axis, horizontal, and vertical milling, with tilted and vertical turning capabilities. One machining center for all machining tasks, the C Series offers options for a singular direct load or palleted tables.
You are here

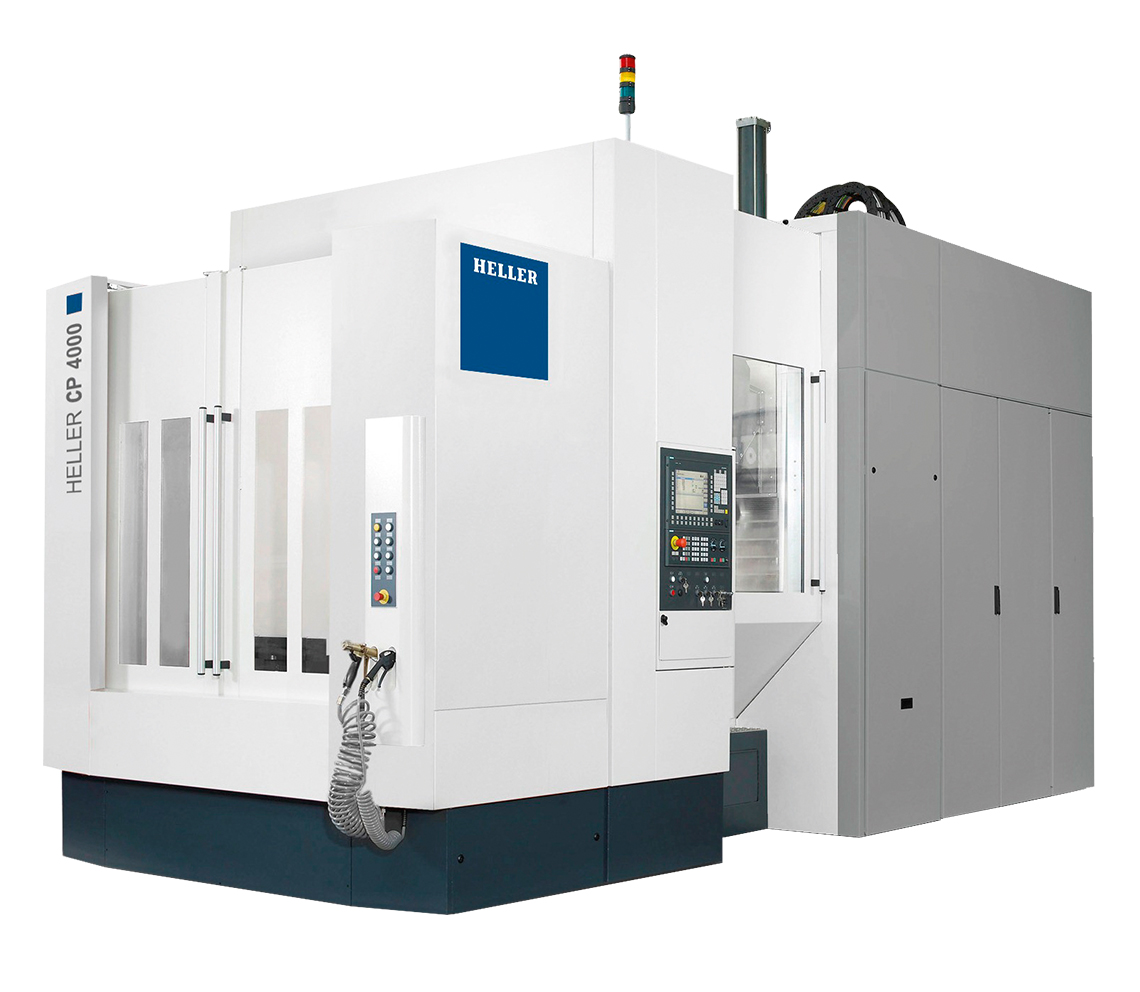

CP 4000
C Series
CP 4000
Travels
Travel Distance X-axis
|
800 mm (31.5 in.)
|
Travel Distance Y-axis
|
800/900 mm (31.5/35.4 in.)
|
Travel Distance Z-axis
|
1,045 mm (41.1 in.)
|
Travel Distance A-axis (Tilting Head)
|
+30°/-120°
|
Travel Distance C-axis (Swivel Head)
|
+15°/-190°
|
Travel Distance B-axis
|
360°
|
Rapid Traverse X-axis
|
65 m/min. (2,559.1 in/min.)
|
Rapid Traverse Y-axis
|
65 m/min. (2,559.1 in/min.)
|
Rapid Traverse Z-axis
|
65 m/min. (2,559.1 in/min.)
|
Rotary Table
Speed
|
1,000 rpm
|
Pallet Size
|
500 x 630 mm (19.7 x 24.8 in.)
|
Max Part Size
|
⌀900/900 x 1,020 mm (⌀35.4/35.4 x 40.1 in.)
|
Max Part Height
|
1,000 mm (39.4 in.)
|
Max Load
|
1,400 kg (3,086 lbs.)
|
Spindle
Speed
|
10,000/12,500 rpm
|
Power
|
44/60/80 kW (59/80.5/107.3 Hp)
|
Torque
|
242/350 Nm (178.5/258.1 ft-lbs.)
|
Tooling
Shank
|
HSK-T 63
|
Changer Capacity
|
54/80/160/240/409
|
Max Diameter
|
⌀160/188 mm (6.3/7.4 in.)
|
Max Length
|
450 mm (17.7 in.)
|
Machine Size
Length
|
7,450 mm (293.3 in.)
|
Height
|
4,150 mm (163.4 in.)
|
Width
|
2,950 mm (116.1 in.)
|
