The C Series machining center takes out all the stops to minimize your set-up time by combining 5-axis, horizontal, and vertical milling, with tilted and vertical turning capabilities. One machining center for all machining tasks, the C Series offers options for a singular direct load or palleted tables.
You are here

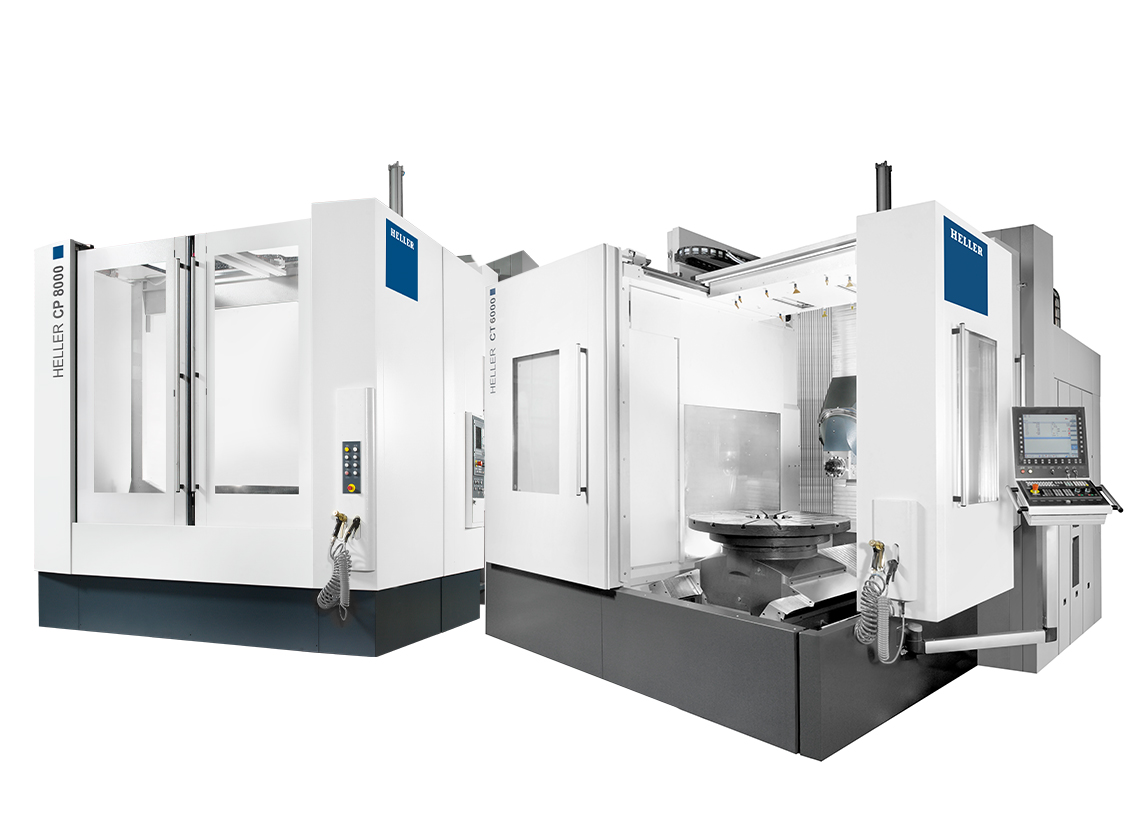

CP 8000 / CT 8000
C Series
CP 8000 / CT 8000
Travels
Travel Distance X-axis
|
1,250 mm (49.2 in.)
|
Travel Distance Y-axis
|
1,200 mm (47.2 in.)
|
Travel Distance Z-axis
|
1,400 mm (55.1 in.)
|
Travel Distance A-axis (Tilting Head)
|
+30°/-120°
|
Travel Distance C-axis (Swivel Head)
|
+15°/-190°
|
Travel Distance B-axis
|
360°
|
Rapid Traverse X-axis
|
50 m/min. (1,968.5 in/min.)
|
Rapid Traverse Y-axis
|
50 m/min. (2,362 in./min.)
|
Rapid Traverse Z-axis
|
50 m/min. (1,968.5 in/min.)
|
Rotary Table
Speed
|
500 rpm
|
Pallet Size (CP)
|
800 x 800 mm (31.5 x 31.5 in.)
|
Max Part Size (CP)
|
⌀1,250/1,250 x 1,810 mm (⌀49.2/49.2 x 71.3 in.)
|
Table Size (CT)
|
⌀1,100 mm (⌀43.3 in.)
|
Max Part Size (CT)
|
⌀1,810 mm (⌀71.3 in.)
|
Max Part Height
|
1,400 mm (55.1 in.)
|
Max Load
|
2,000 kg (4,409 lbs.)
|
Spindle
Speed
|
6,000/8,000/12,500 rpm
|
Power
|
43/60/80 kW (57.7/80.5/107.3 Hp)
|
Torque
|
146/350/822 Nm (107.7/258.1/606.3 ft-lbs.)
|
Tooling
Shank
|
HSK-T 100
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600/800 mm (23.6/31.5 in.)
|
Machine Size
Length
|
8,350/8,400 mm (328.7/330.7 in.)
|
Height
|
4,850 mm (190.9 in.)
|
Width
|
5,850/6,750 mm (230.3/265.7 in.)
|
