The F Series from HELLER features simultaneous 5-axis machining capabilities with options for singular direct load rotary table or high production palleted rotary table with automatic changer. The F Series, unlike the HF series features an angled or fork style headstock and non-swiveling table for enhanced rigidity and precision when machining harder materials like titanium.
You are here

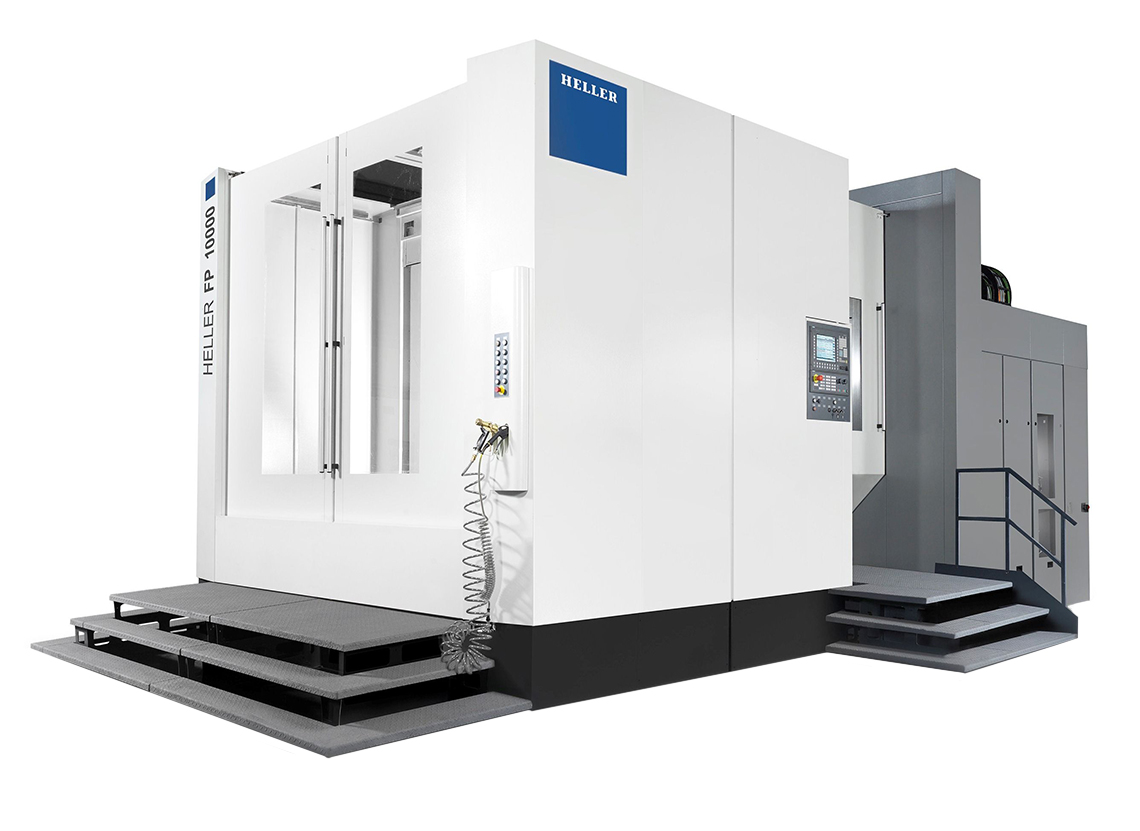

FP 10000
F Series
FP 10000
Travels
Travel Distance X-axis
|
1,600 mm (63 in.)
|
Travel Distance Y-axis
|
1,400 mm (55.1 in.)
|
Travel Distance Z-axis
|
1,600 mm (63 in.)
|
Travel Distance A-axis (Tilting Head)
|
+30°/-120°
|
Travel Distance C-axis (Swivel Head)
|
+15°/-190°
|
Travel Distance B-axis
|
360°
|
Rapid Traverse X-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Y-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Z-axis
|
45 m/min. (1,771.6 in/min.)
|
Table
Pallet Size
|
1,000 x 1,000 mm (39.4 x 39.4 in.)
|
Max Part Size
|
⌀1,400/1,400 x 2,160 mm (⌀55.1/55.1 x 85 in.)
|
Max Part Height
|
1,600 mm (63 in.)
|
Max Load
|
4,000 kg (8,818 lbs.)
|
Spindle
Speed
|
6,000/8,000/12,500 rpm
|
Power
|
43/60/80 kW (57.7/80.5/107.3 Hp)
|
Torque
|
146/350/822 Nm (107.7/258.1/606.3 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600/800 mm (23.6/31.5 in.)
|
Machine Size
Length
|
9,900 mm (389.7 in.)
|
Height
|
4,750 mm (187 in.)
|
Width
|
7,300 mm (287.4 in.)
|
