The F Series from HELLER features simultaneous 5-axis machining capabilities with options for singular direct load rotary table or high production palleted rotary table with automatic changer. The F Series, unlike the HF series features an angled or fork style headstock and non-swiveling table for enhanced rigidity and precision when machining harder materials like titanium.
You are here
FP 16000 / FT 16000
F Series

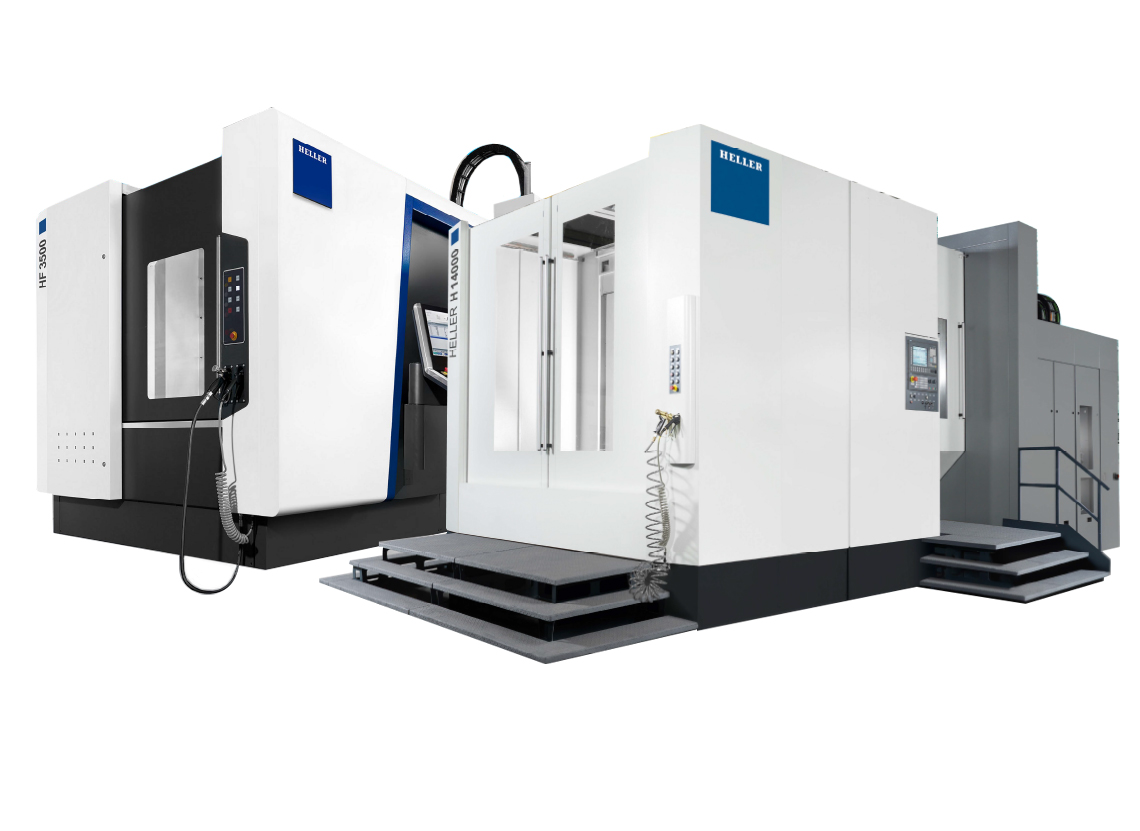

FP 16000 / FT 16000
Travels
Travel Distance X-axis
|
2,400 mm (94.5 in.)
|
Travel Distance Y-axis
|
1,600 mm (63 in.)
|
Travel Distance Z-axis
|
1,600 mm (63 in.)
|
Travel Distance B-axis
|
360°
|
Travel Distance C-axis (Swivel Head)
|
+15°/-190°
|
Rapid Traverse X-axis
|
41 m/min. (1,614.2 in./min.)
|
Rapid Traverse Y-axis
|
45 m/min. (1,771.6 in/min.)
|
Rapid Traverse Z-axis
|
45 m/min. (1,771.6 in/min.)
|
Table
Pallet Size (FP)
|
1,250 x 1,600 mm (49.2 x 63 in.)
|
Table Size (FT)
|
⌀1,300 mm (⌀51.2 in.)
|
Max Part Size (FP)
|
⌀2,000/2,000 x 2,900 mm (⌀78.7/78.7 x 114.2 in.)
|
Max Part Size (FT)
|
⌀2,500 mm (⌀98.4 in.)
|
Max Part Height
|
1,725 mm (67.9 in.)
|
Max Load
|
8,000 kg (17,637 lbs.)
|
Spindle
Speed
|
8,000/12,500 rpm
|
Power
|
60/80 kW (80.5/107.3 Hp)
|
Torque
|
350/1,146 Nm (258.1/845.2 ft-lbs.)
|
Tooling
Shank
|
SK50/HSK-A 100/BT50
|
Changer Capacity
|
50/100/150/265/425
|
Max Diameter
|
⌀280 mm (11 in.)
|
Max Length
|
600/800 mm (23.6/31.5 in.)
|
Machine Size
Length
|
8,150/12,600 mm (320.9/496.1 in.)
|
Height
|
5,400 mm (212.6 in.)
|
Width
|
8,350/9,050 mm (328.7/356.3 in.)
|
