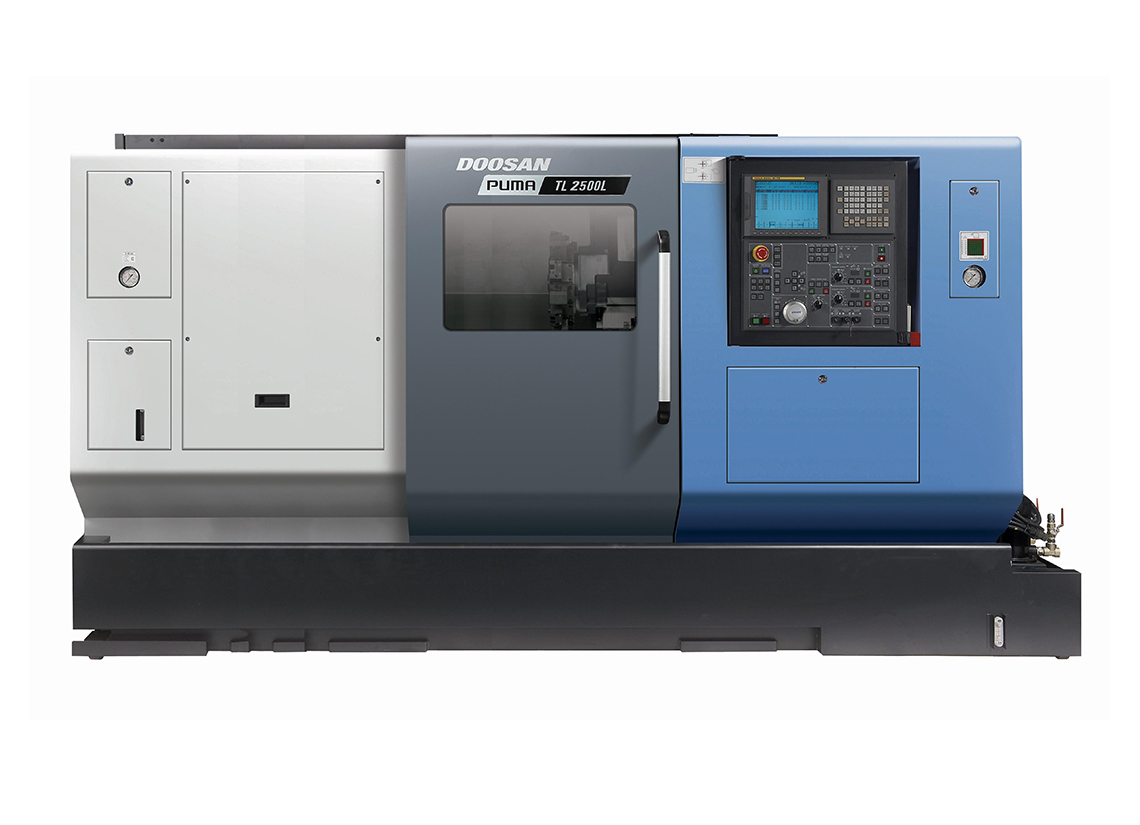

PUMA TL2500L

PUMA TL Series

The highly productive 4-axis linear guide PUMA TL series combines multi-axis functionality with simultaneous control of both turrets. From precise finishes to high-powered metal removal rates, the twin turret lathe provides manufacturers with new process options without adding set-ups. Rapid traverse rates, a solid machine construction, and additional milling options makes the TL series the perfect addition for any manufacturer who needs fast, flexible, multi-axis production.

PUMA TL2500L

Travels
Travel Distance X1-axis
250 mm (9.8 in)
Travel Distance Z1-axis
1050 mm (41.3 in)
Travel Distance X2-axis
150 mm (5.9 in)
Travel Distance Z2-axis
1030 mm (40.5 in)
Rapid Traverse X-axis
20 m/min (787 in/min)
Rapid Traverse Z-axis
24 m/min (945 in/min)
Capacity
Max Turning Diameter (Upper Turret)
⌀370 mm (14.6 in)
Max Turning Diameter (Lower Turret)
⌀240 mm (9.4 in)
Max Turning Length
1000 mm (39.4 in)
Through Hole Diameter
⌀68 mm (2.7 in)
Spindle
Chuck Size
8 in
Speed
5000 rpm
Power
18.5 kW (25 Hp)
Torque
476 Nm (351 ft-lbs)
Tooling
Shank
BMT-KEY
Turret Stations (Upper)
12
Turret Stations (Lower)
8
Boring Bar Diameter
⌀40 mm (1.5 in)
Machine Size
Length
3900 mm (154 in)
Height
1930 mm (76 in)
Width
2144 mm (85 in)
