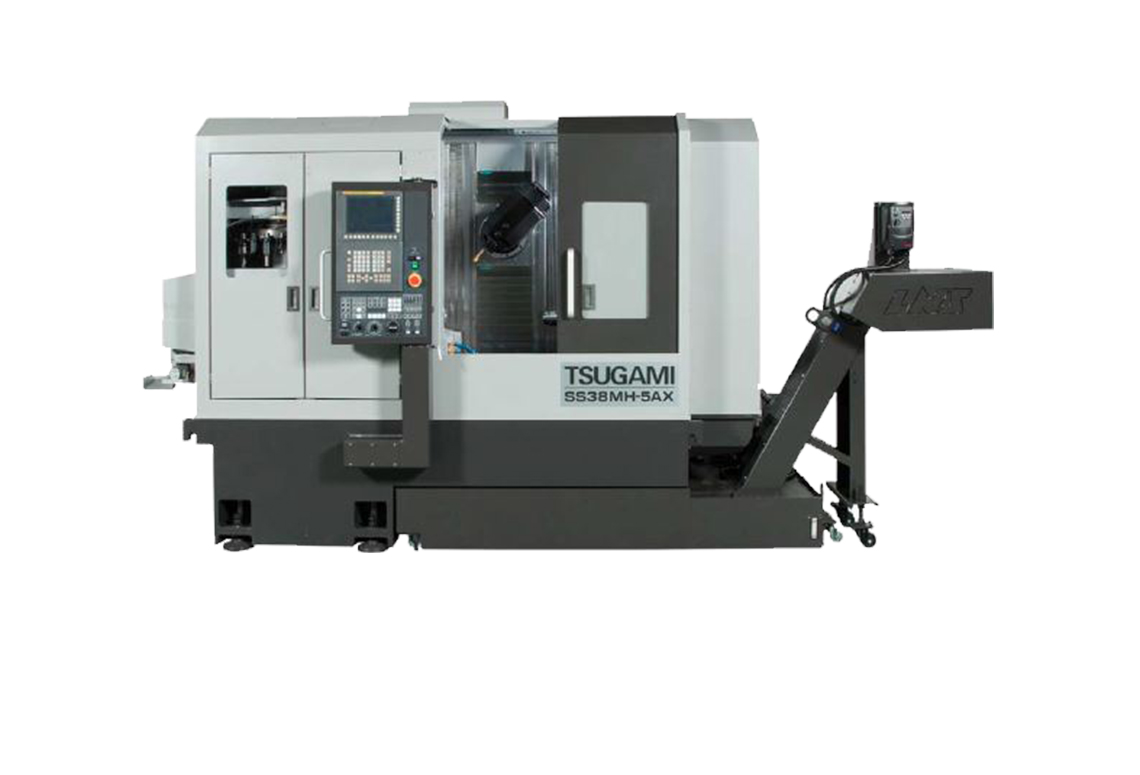

The B-axis line features modular tool zones and live cross/face tools to give you a wider range of capabilities with Swiss-style accuracy. This configuration style allows production of contoured and sculpted parts in a single setup while maintaining accuracy.
You are here
SS38MH-5AX
B-Axis
SS38MH-5AX
Travels
Max Headstock Stroke
|
100/300 mm (3.9/11.8 in.)
|
Number of Axes
|
8
|
Travel Distance B-Axis
|
-15° to 195°
|
Rapid Traverse Rate
|
32 m/min. (1,260 in./min.)
|
Capacity
Max Bar Diameter
|
⌀38 mm (1.5 in.)
|
Max Machining Length
|
100/300 mm (3.9/11.8 in.)
|
Max Spindle Drilling Diameter (Main)
|
⌀16 mm (0.6 in.)
|
Max Spindle Drilling Diameter (Back)
|
⌀12 mm (0.5 in.)
|
Max Spindle Tapping Diameter
|
M12
|
Spindle
Speed (Main)
|
7,000 rpm
|
Speed (Sub)
|
7,000 rpm
|
Power
|
3.7/5.5 kW (5/7.4 Hp)
|
Tooling
Tool Capacity
|
52
|
Max Tool Spindle Drilling Diameter
|
⌀12 mm (0.5 in.)
|
Max Tool Spindle Tapping Diameter
|
M12
|
Max Back Tool Post Drilling Diameter
|
⌀10 mm (0.4 in.)
|
Max Back Tool Post Tapping Diameter
|
M8
|
Max Back Tool Spindle Drilling Diameter
|
⌀8 mm (0.3 in.)
|
Max Back Tool Spindle Tapping Diameter
|
M6
|
Machine Size & Weight
Length
|
1,940 mm (76.5 in.)
|
Height
|
2,160 mm (85 in.)
|
Width
|
2,930 mm (115.5 in.)
|
Weight
|
7,100 kg (15,650 lbs.)
|
