The B-axis line features modular tool zones and live cross/face tools to give you a wider range of capabilities with Swiss-style accuracy. This configuration style allows production of contoured and sculpted parts in a single setup while maintaining accuracy.
You are here

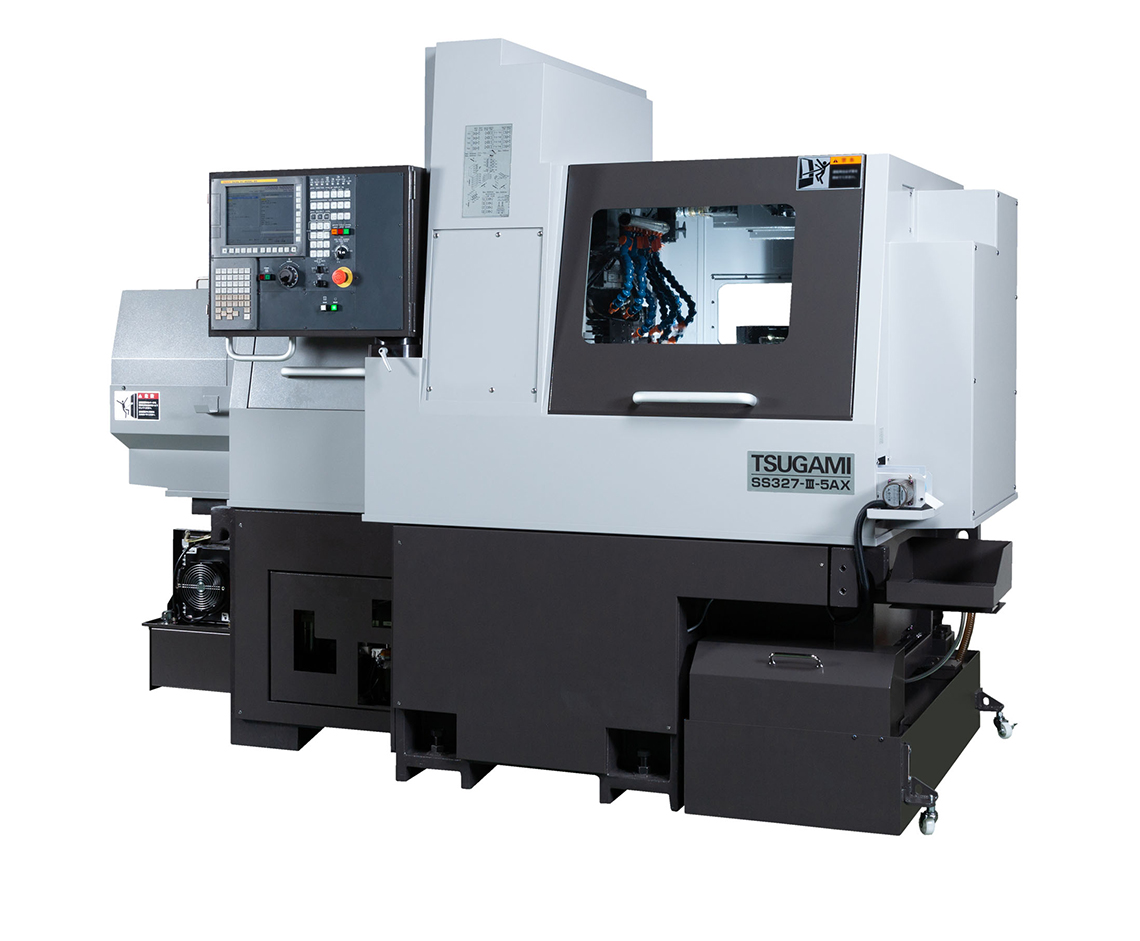

SS327-III-5AX
B-Axis
SS327-III-5AX
Travels
Max Headstock Stroke
|
70/320 mm (2.7/12.6 in)
|
Number of Axes
|
7
|
Capacity
Max Bar Diameter (Main)
|
⌀32 mm (1.3 in)
|
Max Bar Diameter (Sub)
|
⌀32 mm (1.3 in)
|
Max Machining Length
|
330 mm (13 in.)
|
Spindle
Speed (Main)
|
200-8000 rpm
|
Speed (Sub)
|
200-8000 rpm
|
Power
|
3.7/5.5 kW (5/7.4 Hp)
|
Tooling
Tool Capacity
|
38
|
Max Tool Diameter (Round)
|
⌀25 mm (1 in.)
|
Max Tool Size (Square)
|
15.8 mm (0.62 in.)
|
Max Tool Length
|
100 mm (3.94 in.)
|
Live Tool Speed
|
6,000 rpm
|
Machine Size & Weight
Length
|
1,280 mm (50.3 in.)
|
Height
|
2,010 mm (79.1 in.)
|
Width
|
2,650 mm (103.5 in.)
|
Weight
|
4,000 kg (8,818 lbs.)
|
