The B-axis line features modular tool zones and live cross/face tools to give you a wider range of capabilities with Swiss-style accuracy. This configuration style allows production of contoured and sculpted parts in a single setup while maintaining accuracy.
You are here

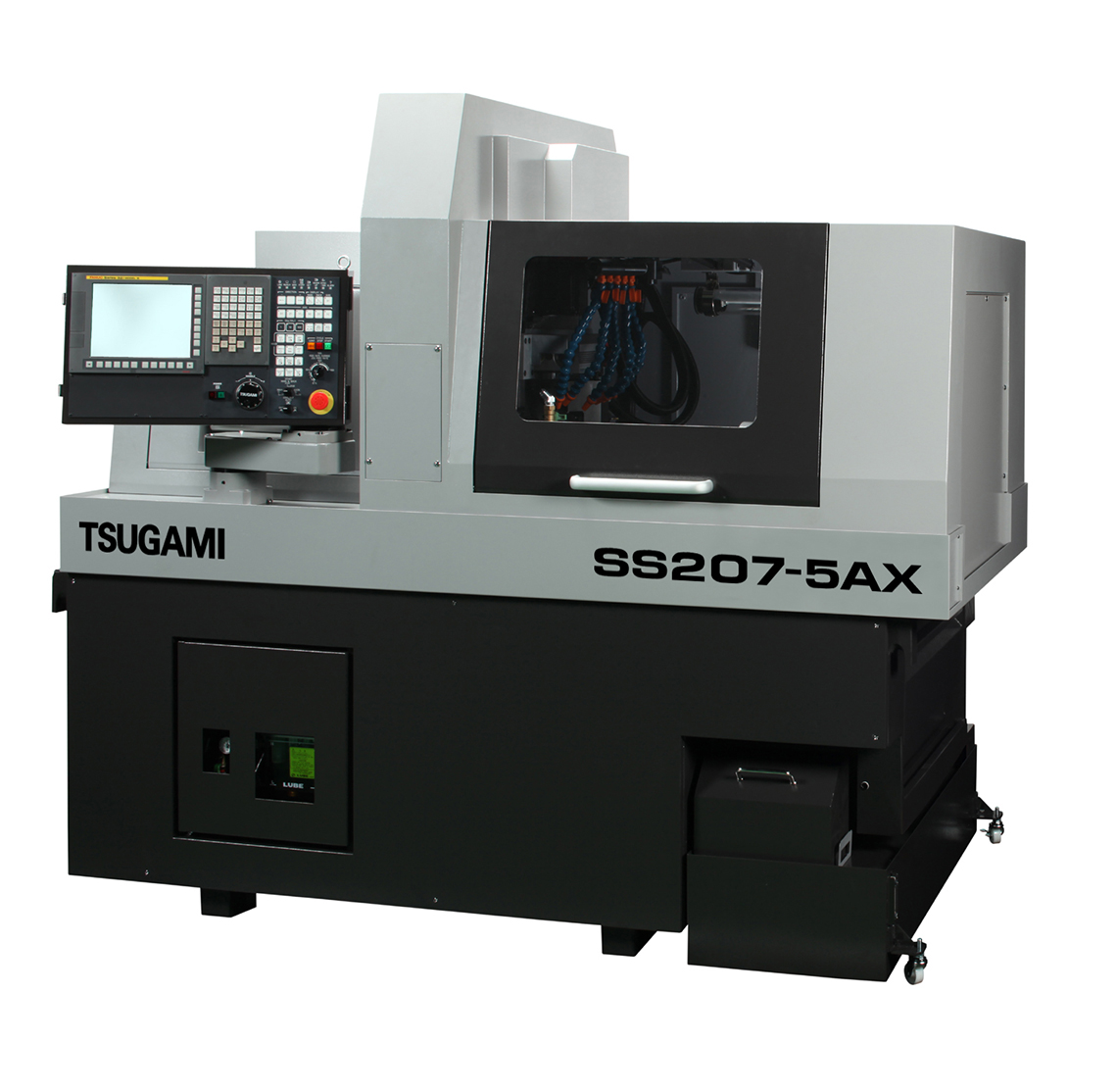

SS207-5AX
B-Axis
SS207-5AX
Travels
Max Headstock Stroke
|
45/210 mm (1.8/8.3 in)
|
Number of Axes
|
7
|
Capacity
Max Bar Diameter
|
Ø20 mm (0.8 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
Yes
|
Spindle
Speed (Main)
|
200-10000 rpm
|
Speed (Sub)
|
200-10000 rpm
|
Power
|
2.2/3.7 kW (2.9/5 Hp)
|
Tooling
Tool Capacity
|
35
|
Live Tool Capacity
|
13/15
|
Live Tool Speed
|
8000 rpm
|
Machine Size
Length
|
1200 mm (47.2 in)
|
Height
|
1885 mm (74.2 in)
|
Width
|
2110 mm (83 in)
|
