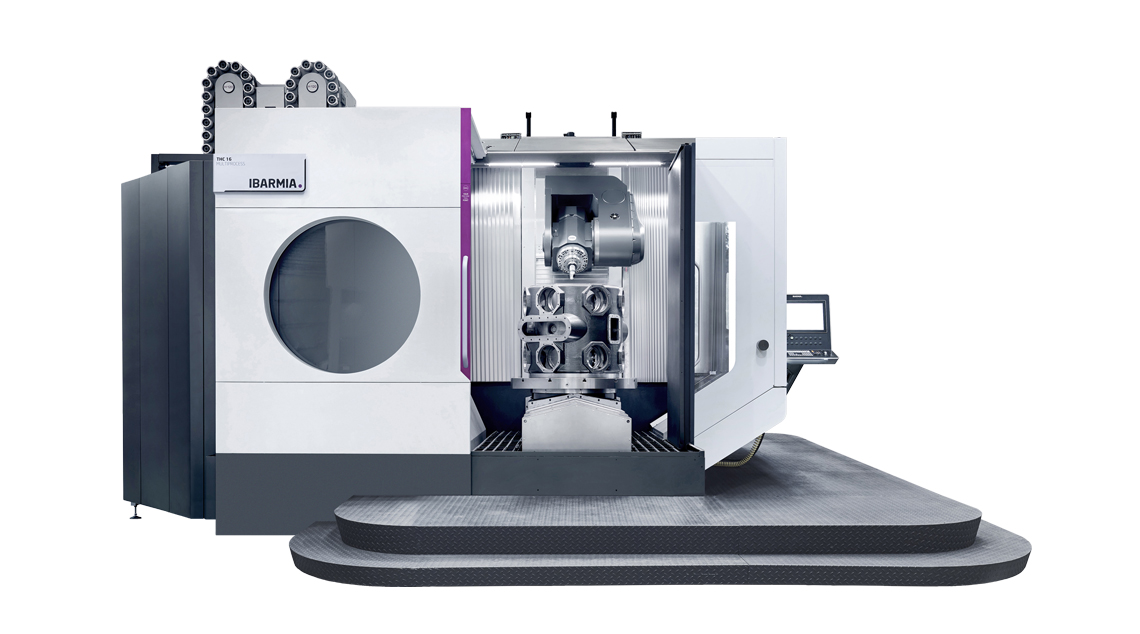

The T MULTIPROCESS machining center integrates multiple machining processes to create a high performance and incredibly efficient machine with bigger and more complex clamping capabilities to handle anything you throw at it. Utilizing advanced machining technology including unbalanced weight compensation makes set up faster and easier. Automate your processes even further with automated pallet changes and multiple larger tool magazines.
You are here
T36 MULTIPROCESS
T MULTIPROCESS
T36 MULTIPROCESS
Travels
Travel Distance X-axis
|
3600 mm (141.7 in)
|
Travel Distance Y-axis
|
2300 mm (90.6 in)
|
Travel Distance Z-axis
|
1900 mm (74.8 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
⌀2200 mm (86.6 in)
|
Max Part Height
|
2150 mm (85 in)
|
Max Load
|
t16000/f30000 kg (35273.9/66138.7 lbs)
|
Speed
|
200 rpm
|
Torque
|
20000 Nm (14751.2 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (89 Hp)
|
Torque
|
300 Nm (452 ft-lbs)
|
Tooling
Shank
|
HSK A-100
|
Changer Capacity
|
60
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
87000 kg (191802.2 lbs)
|
