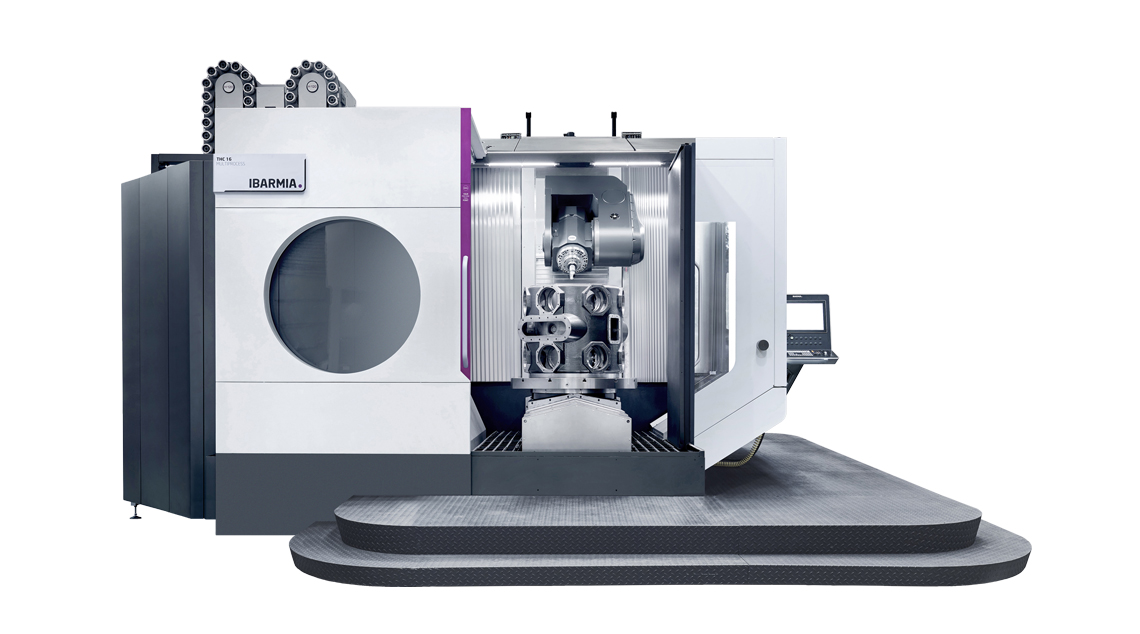

The T MULTIPROCESS machining center integrates multiple machining processes to create a high performance and incredibly efficient machine with bigger and more complex clamping capabilities to handle anything you throw at it. Utilizing advanced machining technology including unbalanced weight compensation makes set up faster and easier. Automate your processes even further with automated pallet changes and multiple larger tool magazines.
You are here
T16 MULTIPROCESS
This product is not available.
T MULTIPROCESS
T16 MULTIPROCESS
Travels
Travel Distance X-axis
|
1600 mm (63 in)
|
Travel Distance Y-axis
|
1300 mm (51.2 in)
|
Travel Distance Z-axis
|
1200 mm (47.2 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
⌀1250 mm (47.2 in)
|
Max Part Height
|
1450 mm (57.1 in)
|
Max Load
|
t3000/f6000 kg (6613.9/13227.7 lbs)
|
Speed
|
500 rpm
|
Torque
|
3000 Nm (2212.7 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (99 Hp)
|
Torque
|
300 Nm (221 ft-lbs)
|
Tooling
Shank
|
HSK 100
|
Changer Capacity
|
120
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
32000 kg (70547.9 lbs)
|
