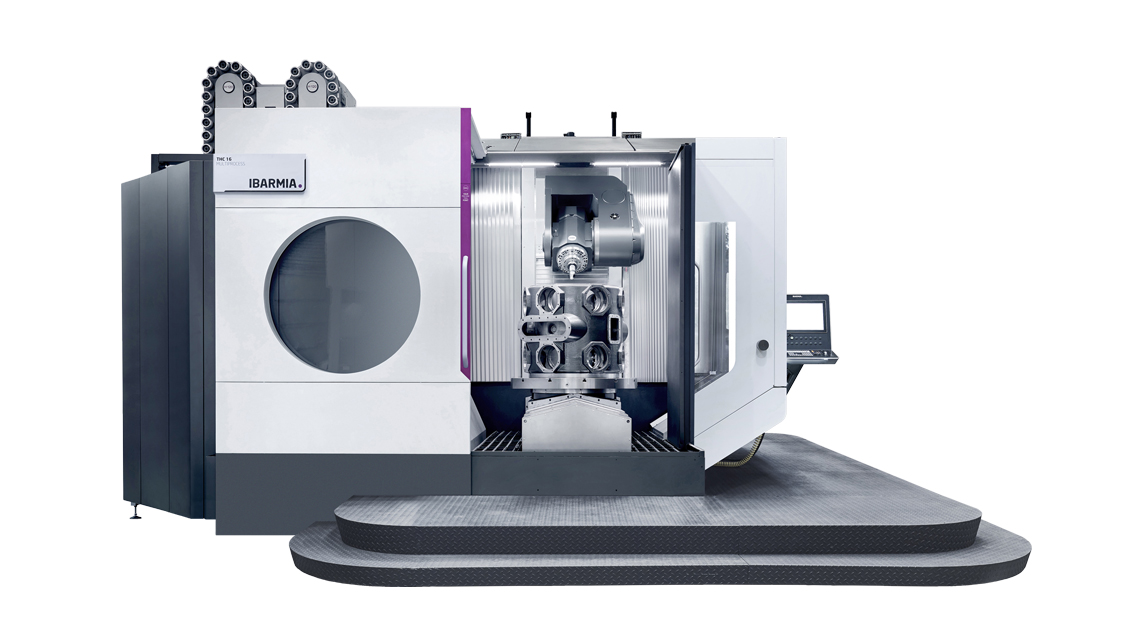

The T MULTIPROCESS machining center integrates multiple machining processes to create a high performance and incredibly efficient machine with bigger and more complex clamping capabilities to handle anything you throw at it. Utilizing advanced machining technology including unbalanced weight compensation makes set up faster and easier. Automate your processes even further with automated pallet changes and multiple larger tool magazines.
You are here
T22 MULTIPROCESS
This product is not available.
T MULTIPROCESS
T22 MULTIPROCESS
Travels
Travel Distance X-axis
|
2200 mm (86.6 in)
|
Travel Distance Y-axis
|
1600 mm (63 in)
|
Travel Distance Z-axis
|
1500 mm (59 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
⌀1600 mm (63 in)
|
Max Part Height
|
1750 mm (68.9 in)
|
Max Load
|
t6000/f10000 kg (13227.7/22046.2 lbs)
|
Speed
|
400 rpm
|
Torque
|
4085 Nm (3012.9 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (89 Hp)
|
Torque
|
300 Nm (452 ft-lbs)
|
Tooling
Shank
|
HSK A-100
|
Changer Capacity
|
60
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
39000 kg (85980.3 lbs)
|
