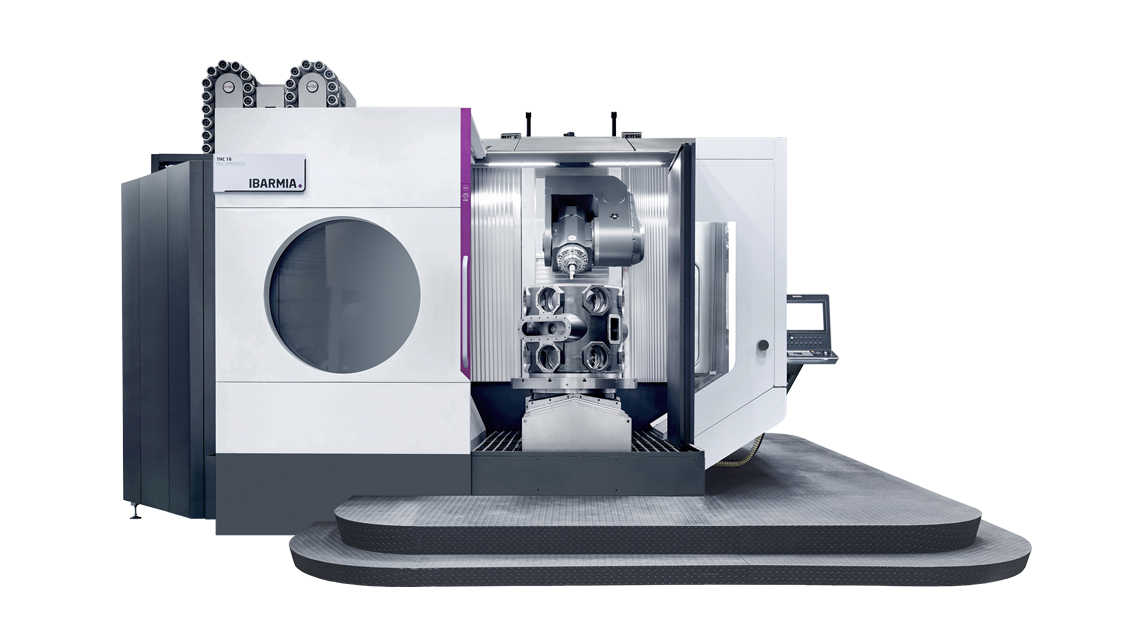

The T MULTIPROCESS machining center integrates multiple machining processes to create a high performance and incredibly efficient machine with bigger and more complex clamping capabilities to handle anything you throw at it. Utilizing advanced machining technology including unbalanced weight compensation makes set up faster and easier. Automate your processes even further with automated pallet changes and multiple larger tool magazines.
You are here
T12 MULTIPROCESS
This product is not available.
T MULTIPROCESS
T12 MULTIPROCESS
Travels
Travel Distance X-axis
|
1200 mm (47.2 in)
|
Travel Distance Y-axis
|
1100 mm (43.3 in)
|
Travel Distance Z-axis
|
1000 mm (39.4 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
⌀1000 mm (39.4 in)
|
Max Part Height
|
1250 mm (49.2 in)
|
Max Load
|
t2250/f4500 kg (4960.4/9920.8 lbs)
|
Speed
|
500 rpm
|
Torque
|
1850 Nm (1364.5 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (89 Hp)
|
Torque
|
300 Nm (452 ft-lbs)
|
Tooling
Shank
|
HSK A-100
|
Changer Capacity
|
60
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
25000 kg (55115.6 lbs)
|
