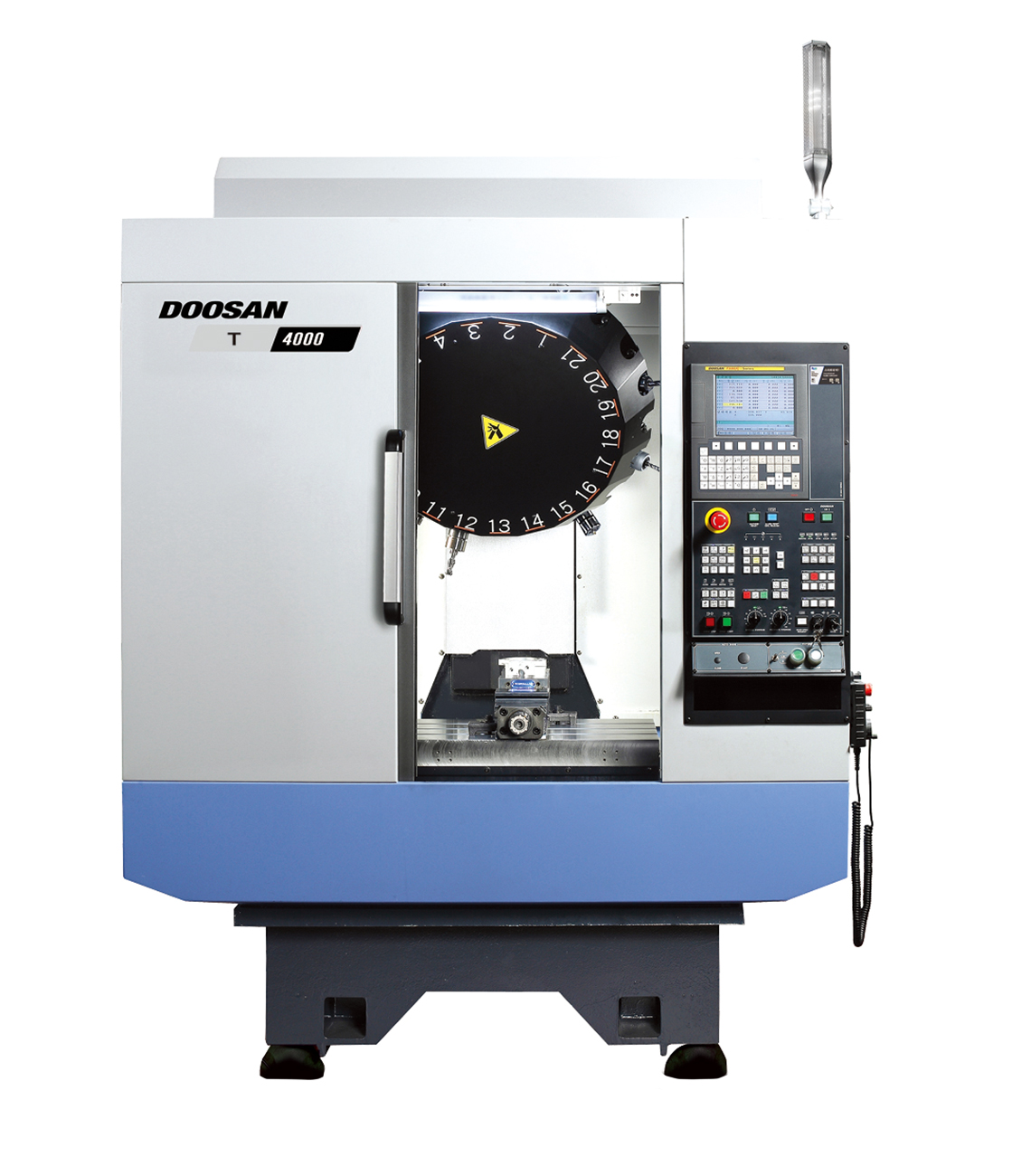

T 4000L

T Series

Get a high-speed and high-productivity tapping center with Doosan’s T Series. The machines in this series offer higher feed rates and faster tool change speeds than competitors in the same class.

T 4000L

Travels
Travel Distance X-axis
700 mm (27.6 in)
Travel Distance Y-axis
400 mm (15.8 in)
Travel Distance Z-axis
350 mm (13.8 in)
Rapid Traverse X-axis
48/56 m/min (1889.8/2204.7 in/min)
Rapid Traverse Y-axis
48/56 m/min (1889.8/2204.7 in/min)
Rapid Traverse Z-axis
48/56 m/min (1889.8/2204.7 in/min)
Table
Table Size
850 x 400 mm (33.5 x 15.8 in)
Max Load
300 kg (661.4 lbs)
Spindle
Speed
12000/24000 rpm
Power
13 kW (17.4 Hp)
Torque
82.7 Nm (61 ft-lbs)
Tooling
Shank
ISO-30
Changer Capacity
21
Max Diameter
⌀80/150 mm (3.1/5.9 in)
Max Tool Length
240 mm (9.4 in)
Machine Size
Length
2682 mm (105.6 in)
Height
2380 mm (93.7 in)
Width
2050 mm (80.7 in)
