Get a high-speed and high-productivity tapping center with DN Solutions (formerly Doosan Machine Tools) T Series. The machines in this series offer higher feed rates and faster tool change speeds than competitors in the same class.
You are here

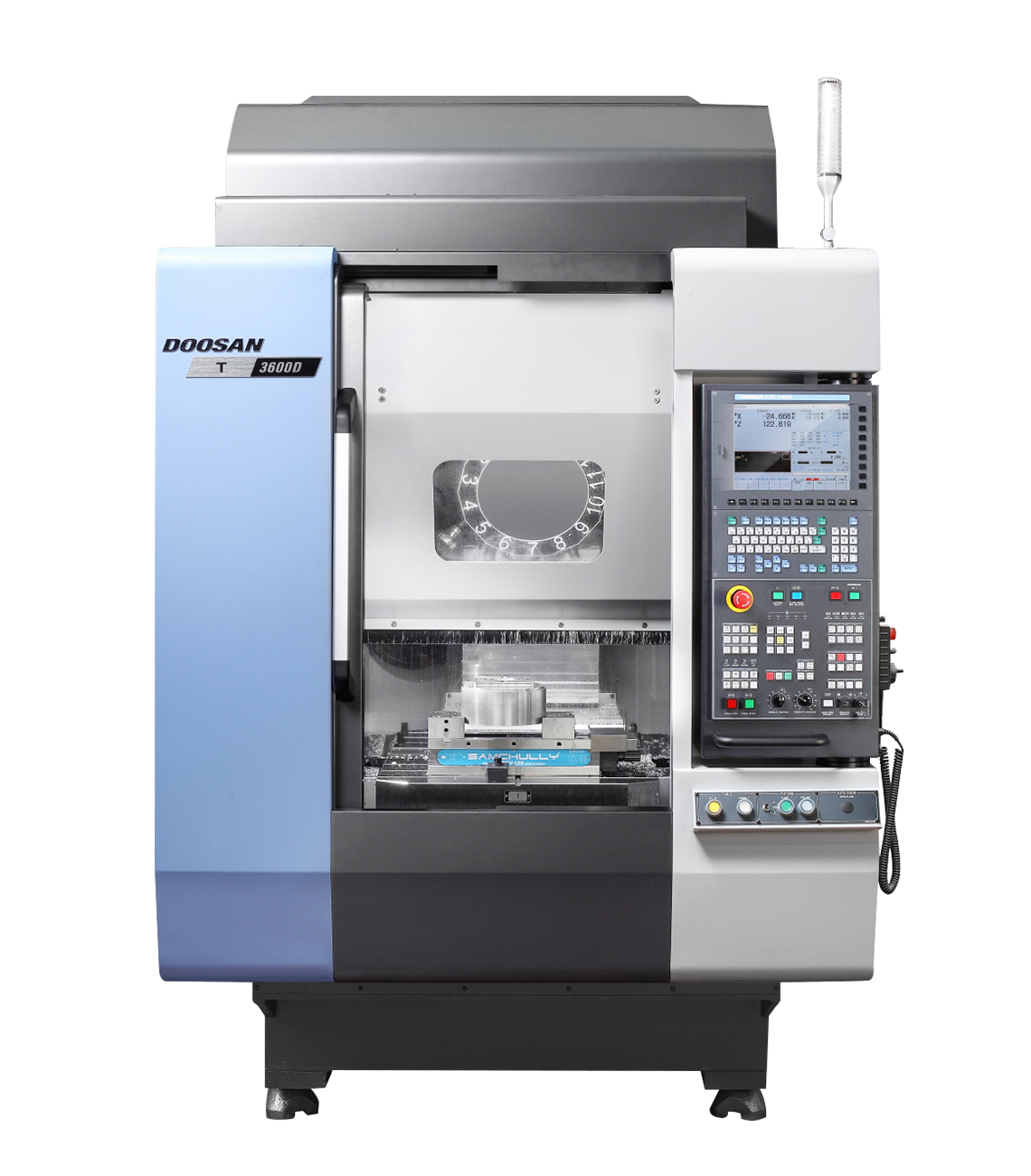

T 3600D
T Series
T 3600D
Travels
Travel Distance X-axis
|
520 mm (20.5 in)
|
Travel Distance Y-axis
|
360 mm (14.2 in)
|
Travel Distance Z-axis
|
350 mm (13.8 in)
|
Rapid Traverse X-axis
|
48 m/min (1889.8 in/min)
|
Rapid Traverse Y-axis
|
48 m/min (1889.8 in/min)
|
Rapid Traverse Z-axis
|
56 m/min (2204.7 in/min)
|
Table
Table Size
|
650 x 375 mm (25.6 x 14.8 in)
|
Max Load
|
200 kg (441 lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
13 kW (17.4 Hp)
|
Torque
|
82.7 Nm (61 ft-lbs)
|
Tooling
Shank
|
ISO-30
|
Changer Capacity
|
14/21
|
Max Diameter
|
⌀80/150 mm (3.1/5.9 in)
|
Max Tool Length
|
200 mm (7.9 in)
|
Machine Size & Weight
Length
|
3,230 mm (127.2 in.)
|
Height
|
2,507 mm (98.7 in.)
|
Width
|
1,620 mm (63.8 in.)
|
Weight
|
5,200 kg (11,464 lbs.)
|
