Get a high-speed and high-productivity tapping center with DN Solutions (formerly Doosan Machine Tools) T Series. The machines in this series offer higher feed rates and faster tool change speeds than competitors in the same class.
You are here

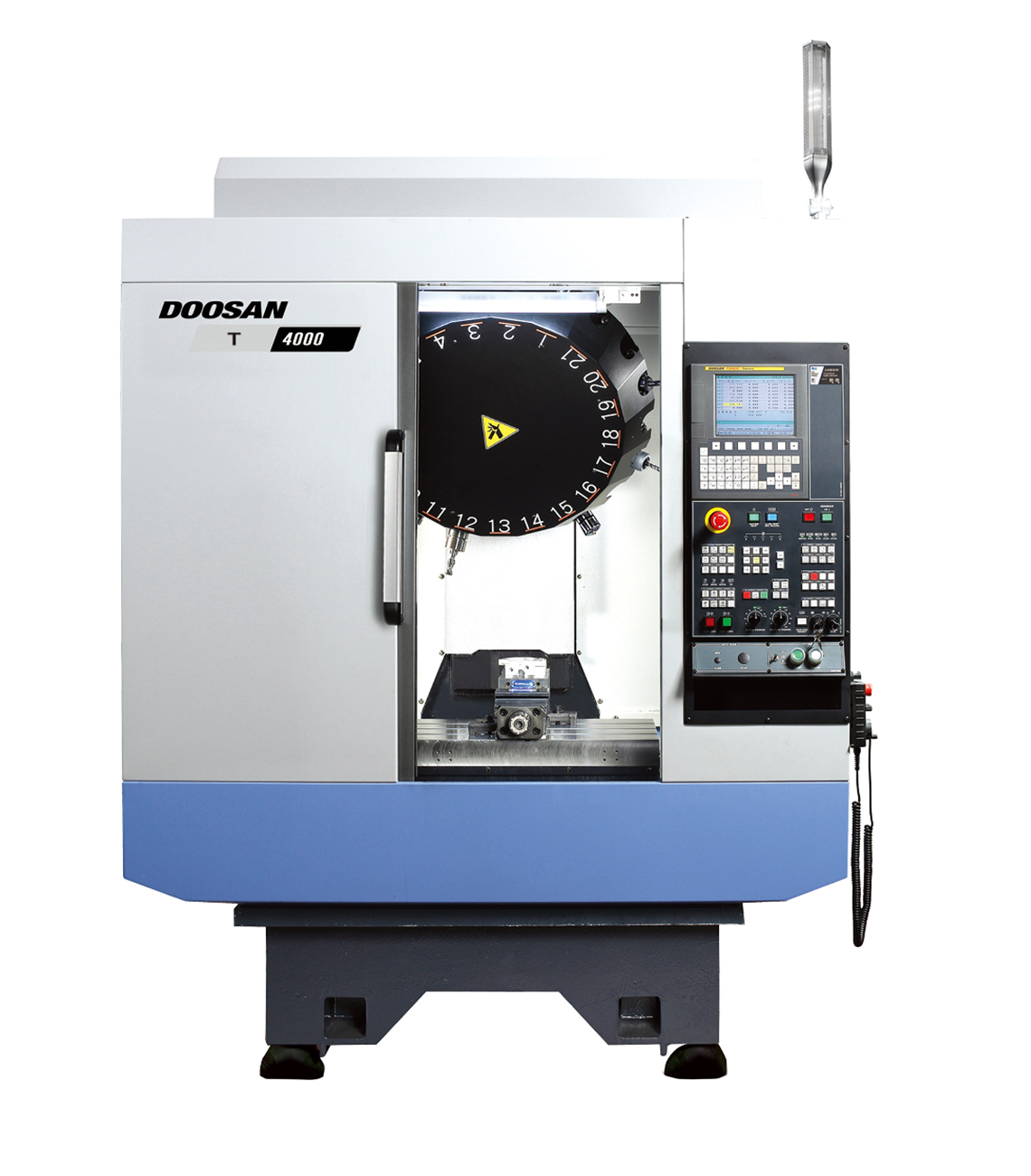

T 4000
T Series
T 4000
Travels
Travel Distance X-axis
|
520 mm (20.5 in)
|
Travel Distance Y-axis
|
400 mm (15.8 in)
|
Travel Distance Z-axis
|
350 mm (13.8 in)
|
Rapid Traverse X-axis
|
56 m/min (2204.7 in/min)
|
Rapid Traverse Y-axis
|
56 m/min (2204.7 in/min)
|
Rapid Traverse Z-axis
|
56 m/min (2204.7 in/min)
|
Table
Table Size
|
650 x 400 mm (25.6 x 15.8 in)
|
Max Load
|
300 kg (661.4 lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
13 kW (17.4 Hp)
|
Torque
|
82.7 Nm (61 ft-lbs)
|
Tooling
Shank
|
ISO-30
|
Changer Capacity
|
21
|
Max Diameter
|
⌀80/150 mm (3.1/5.9 in)
|
Max Tool Length
|
240 mm (9.4 in)
|
Machine Size & Weight
Length
|
2,682 mm (105.6 in.)
|
Height
|
2,380 mm (93.7 in.)
|
Width
|
1,620 mm (63.8 in.)
|
Weight
|
2,800 kg (6,173 lbs.)
|
