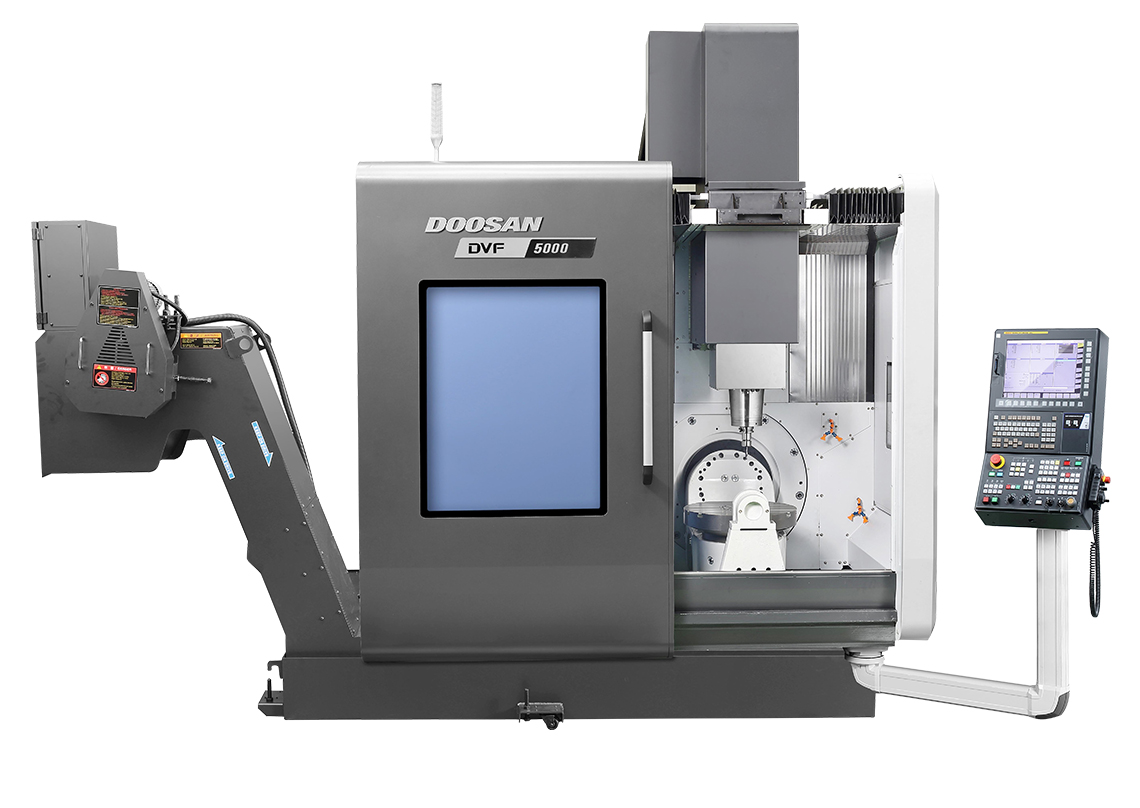

DVF 5000

DVF Series

The DVF Series is the newest line of 5-axis machining centers from Doosan Machine Tools. Built with cutting-edge technology, ergonomic accessibility, and an automation-ready framework, the DVF delivers excellent performance. The DVF features a combined pivoting and rotary table to provide optimate access to all 5 axis, while maintain rigid spindle support for reduced vibration.

DVF 5000

Travels
Travel Distance X-axis
625 mm (24.6 in)
Travel Distance Y-axis
450 mm (17.7 in)
Travel Distance Z-axis
400 mm (15.7 in)
Travel Distance B-axis
+110°, -30°
Travel Distance C-axis
360°
Rapid Traverse X-axis
40 m/min (1575 in/min)
Rapid Traverse Y-axis
40 m/min (1575 in/min)
Rapid Traverse Z-axis
40 m/min (1575 in/min)
Rapid Traverse B-axis
20 rpm
Rapid Traverse C-axis
20 rpm
Rotary Table
Table Size
⌀500 mm (19.7 in)
Max Part Diameter
⌀550 mm (21.7 in)
Max Part Height
450 mm (17.7 in)
Max Load
400 kg (882 lbs)
Spindle
Speed
18000 rpm
Power
22 kW (30 Hp)
Torque
118 Nm (87 ft-lbs)
Tooling
Shank
BIG PLUS CAT 40
Changer Capacity
60
Max Diameter
⌀80/125 mm (3.1/4.9 in)
Max Length
300 mm (11.8 in)
Machine Size
Length
2900 mm (114 in)
Height
2890 mm (114 in)
Width
2205 mm (87 in)
