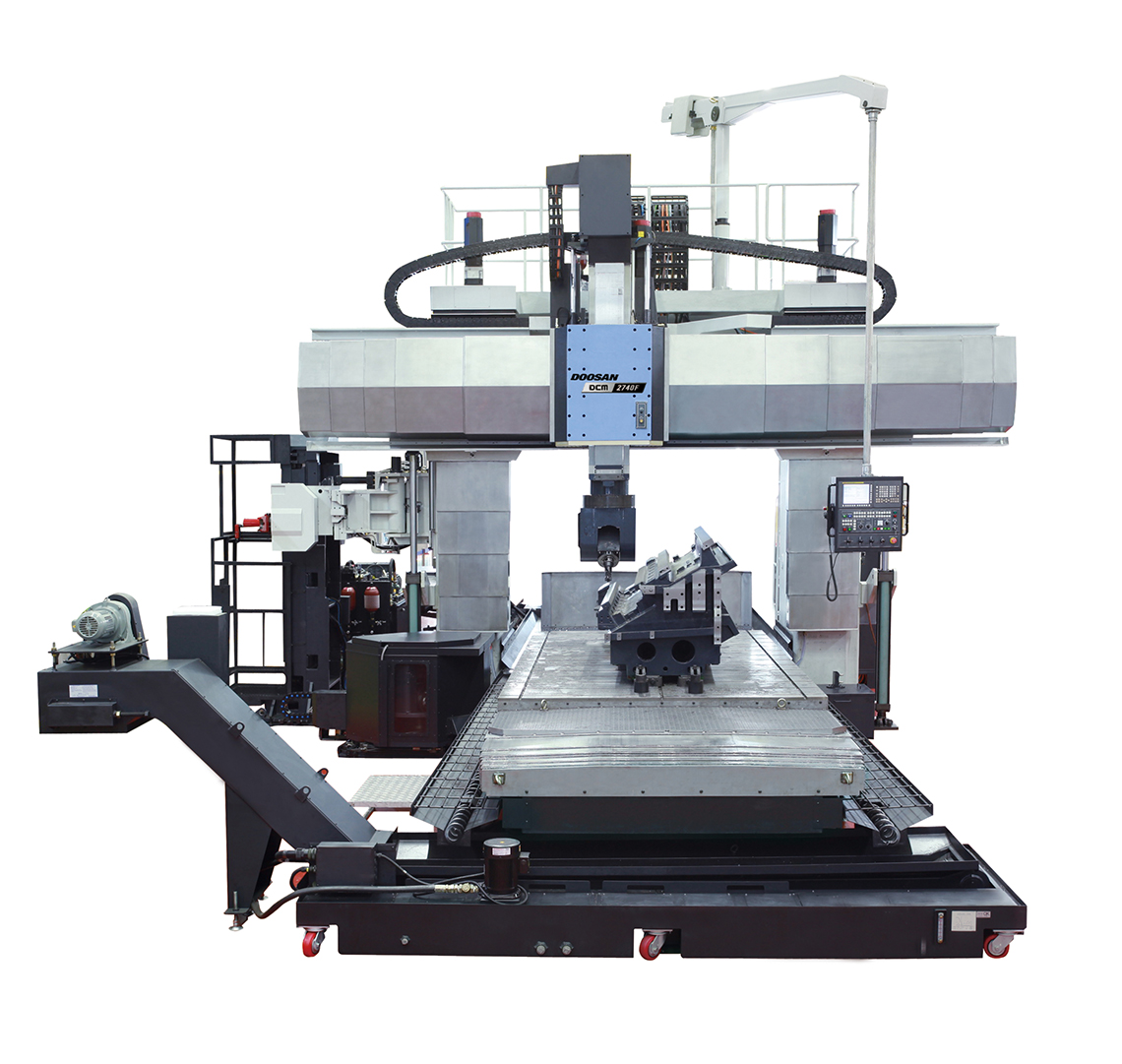

The five-sided double column DCM series is the solution for accurate, large-scale machining. With an effective column width 200 mm wider than that of competing machining centers, the DCM series eliminates the need for cutting operations on multiple machines. A rigid bed and column structure minimize vibrations and provides long-term stability for heavy-duty cutting, mold and die finishing, and complex parts.
You are here
DCM 3780F
DCM Series
DCM 3780F
Travels
Travel Distance X-axis
|
8250 mm (324.8 in)
|
Travel Distance Y-axis
|
4200 mm (165.3 in)
|
Travel Distance Z-axis
|
1000 mm (39.4 in)
|
Travel Distance W-axis
|
1400 mm (55.1 in)
|
Travel Distance C-axis
|
360°
|
Rapid Traverse X-axis
|
16 m/min (630 in/min)
|
Rapid Traverse Y-axis
|
16 m/min (630 in/min)
|
Rapid Traverse Z-axis
|
10 m/min (394 in/min)
|
Rapid Traverse W-axis
|
3 m/min (118 in/min)
|
Table
Table Size
|
3200 x 8100 mm (126 x 319 in)
|
Max Load
|
45000 kg (99210 lbs)
|
Spindle
Speed
|
8000 rpm
|
Power
|
26 kW (35 Hp)
|
Torque
|
765 Nm (565 ft-lbs)
|
Spindle to Table Distance
|
2350 mm (92.5 in)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
40
|
Max Diameter
|
⌀130/250 mm (5.1/9.8 in)
|
Max Length
|
400 mm (15.7 in)
|
Machine Size & Weight
Length
|
20,215 mm (796 in.)
|
Height
|
8,000 mm (315 in.)
|
Width
|
9,220 mm (363 in.)
|
Weight
|
112,000 kg (247,000 lbs.)
|
