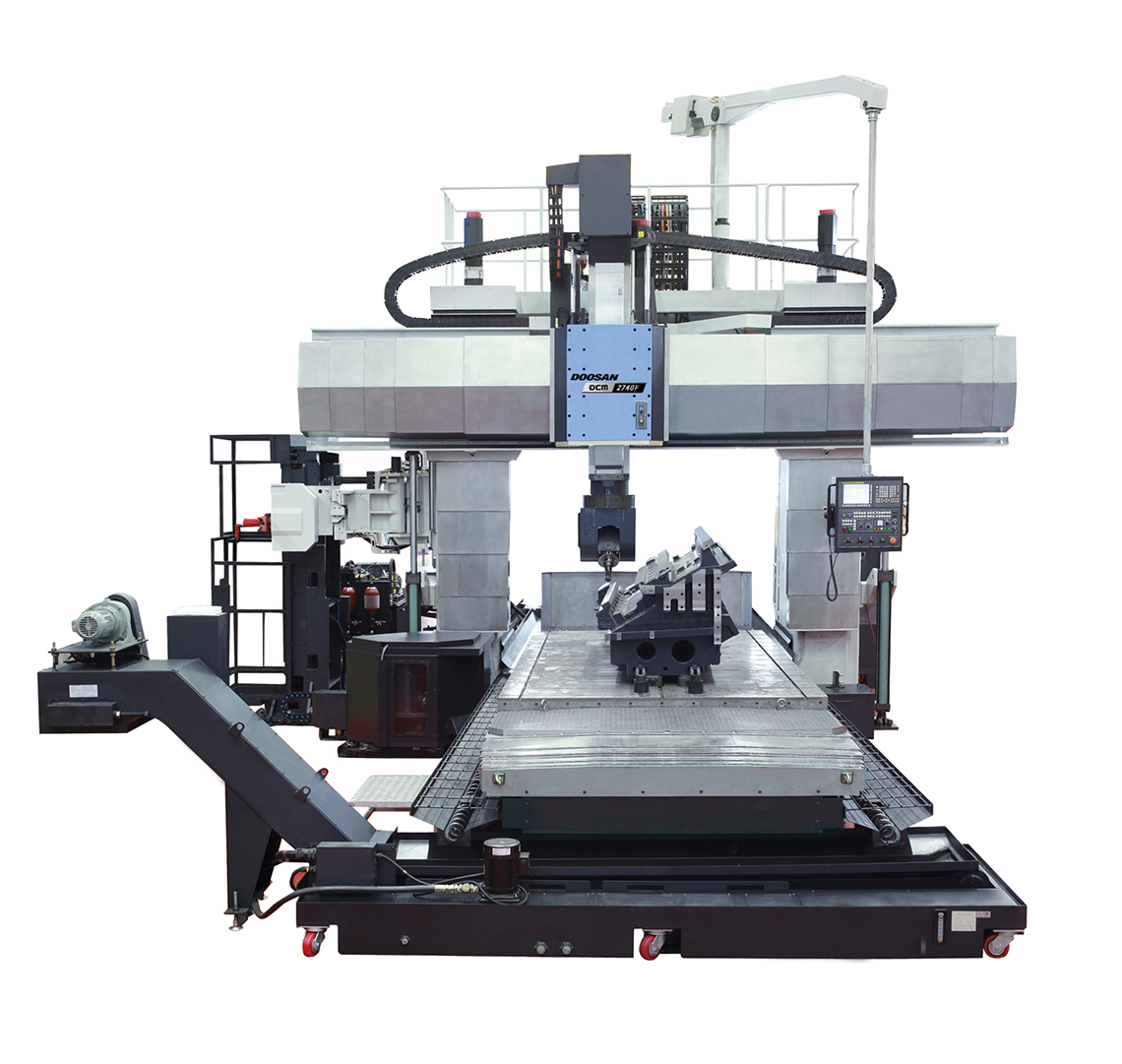

DCM 2780F

DCM Series

The five-sided double column DCM series is the solution for accurate, large-scale machining. With an effective column width 200 mm wider than that of competing machining centers, the DCM series eliminates the need for cutting operations on multiple machines. A rigid bed and column structure minimize vibrations and provides long-term stability for heavy-duty cutting, mold and die finishing, and complex parts.

DCM 2780F

Travels
Travel Distance X-axis
8250 mm (324.8 in)
Travel Distance Y-axis
3200 mm (126 in)
Travel Distance Z-axis
700 mm (27.5 in)
Travel Distance W-axis
1100 mm (43.3 in)
Travel Distance C-axis
360°
Rapid Traverse X-axis
16 m/min (630 in/min)
Rapid Traverse Y-axis
20 m/min (787 in/min)
Rapid Traverse Z-axis
15 m/min (590 in/min)
Rapid Traverse W-axis
3 m/min (118 in/min)
Table
Table Size
2200 x 8100 mm (86.6 x 240.2 in)
Max Load
40000 kg (88200 lbs)
Spindle
Speed
8000 rpm
Power
26 kW (35 Hp)
Torque
765 Nm (565 ft-lbs)
Spindle to Table Distance
1650 mm (65 in)
Tooling
Shank
BIG PLUS CAT 50
Changer Capacity
40
Max Diameter
⌀130/250 mm (5.1/9.8 in)
Max Length
400 mm (15.7 in)
Machine Size
Length
19710 mm (776 in)
Height
6700 mm (264 in)
Width
8150 mm (320.9 in)
