DCM 37100F

DCM Series

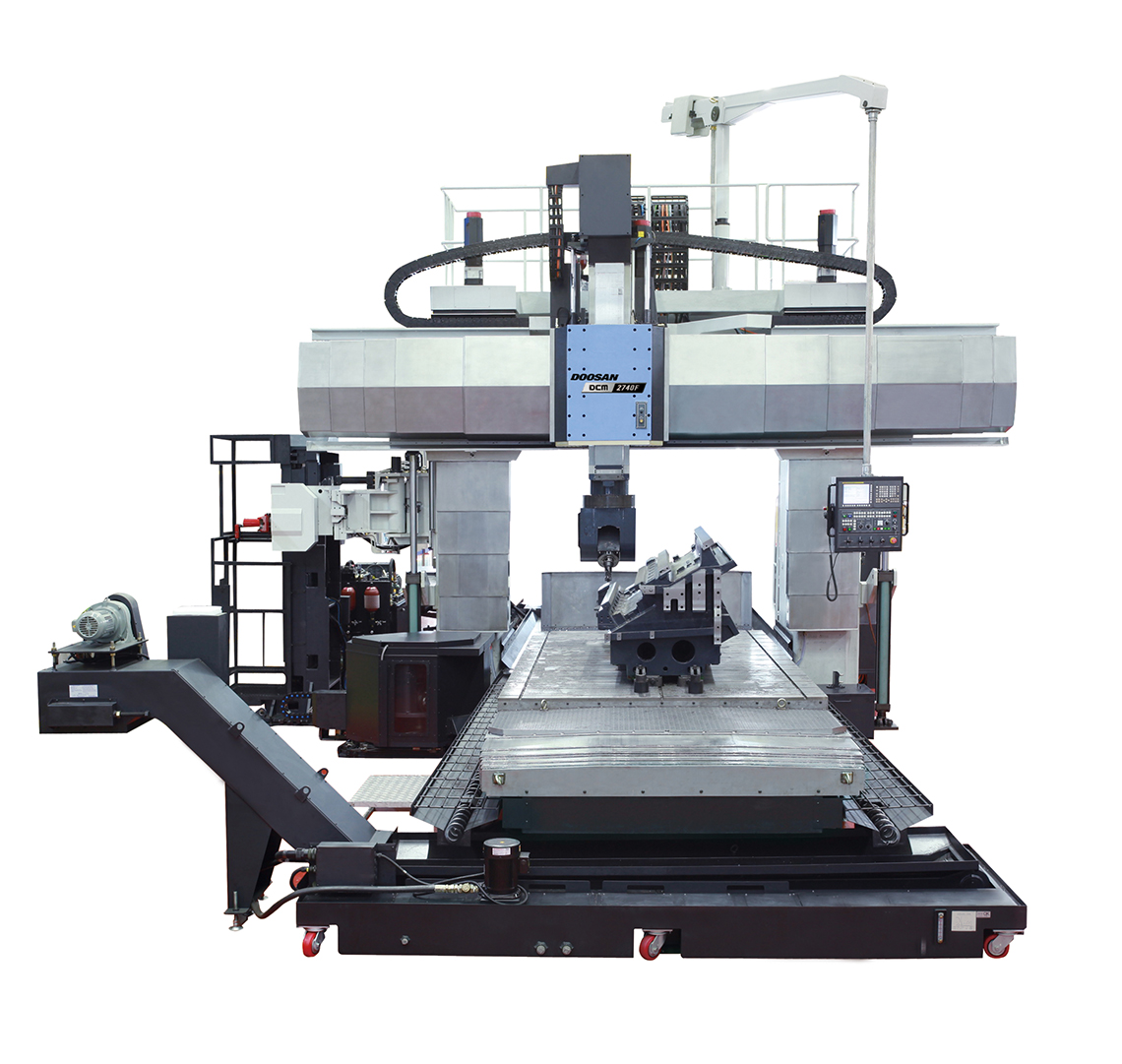

The five-sided double column DCM series is the solution for accurate, large-scale machining. With an effective column width 200 mm wider than that of competing machining centers, the DCM series eliminates the need for cutting operations on multiple machines. A rigid bed and column structure minimize vibrations and provides long-term stability for heavy-duty cutting, mold and die finishing, and complex parts.

DCM 37100F

Travels
Travel Distance X-axis
10250 mm (403.5 in)
Travel Distance Y-axis
4200 mm (165.3 in)
Travel Distance Z-axis
1000 mm (39.4 in)
Travel Distance W-axis
1400 mm (55.1 in)
Travel Distance C-axis
360°
Rapid Traverse X-axis
16 m/min (630 in/min)
Rapid Traverse Y-axis
16 m/min (630 in/min)
Rapid Traverse Z-axis
10 m/min (394 in/min)
Rapid Traverse W-axis
3 m/min (118 in/min)
Table
Table Size
3200 x 9800 mm (126 x 385 in)
Max Load
45000 kg (99210 lbs)
Spindle
Speed
8000 rpm
Power
26 kW (35 Hp)
Torque
765 Nm (565 ft-lbs)
Spindle to Table Distance
2350 mm (92.5 in)
Tooling
Shank
BIG PLUS CAT 50
Changer Capacity
40
Max Diameter
⌀130/250 mm (5.1/9.8 in)
Max Length
400 mm (15.7 in)
Machine Size
Length
24235 mm (954 in)
Height
8000 mm (315 in)
Width
9220 mm (363 in)
