Tsugami's Turn/Mill Multitasking Turning Centers integrates an articulated B-axis vertical spindle with their reliable Swiss type lathe structure to deliver outstanding performance and productivity. These turning centers are able to handle complex parts in a single setup utilizing milling, turning, drilling, tapping, boring, compound angle work, and threading machining capabilities.
You are here

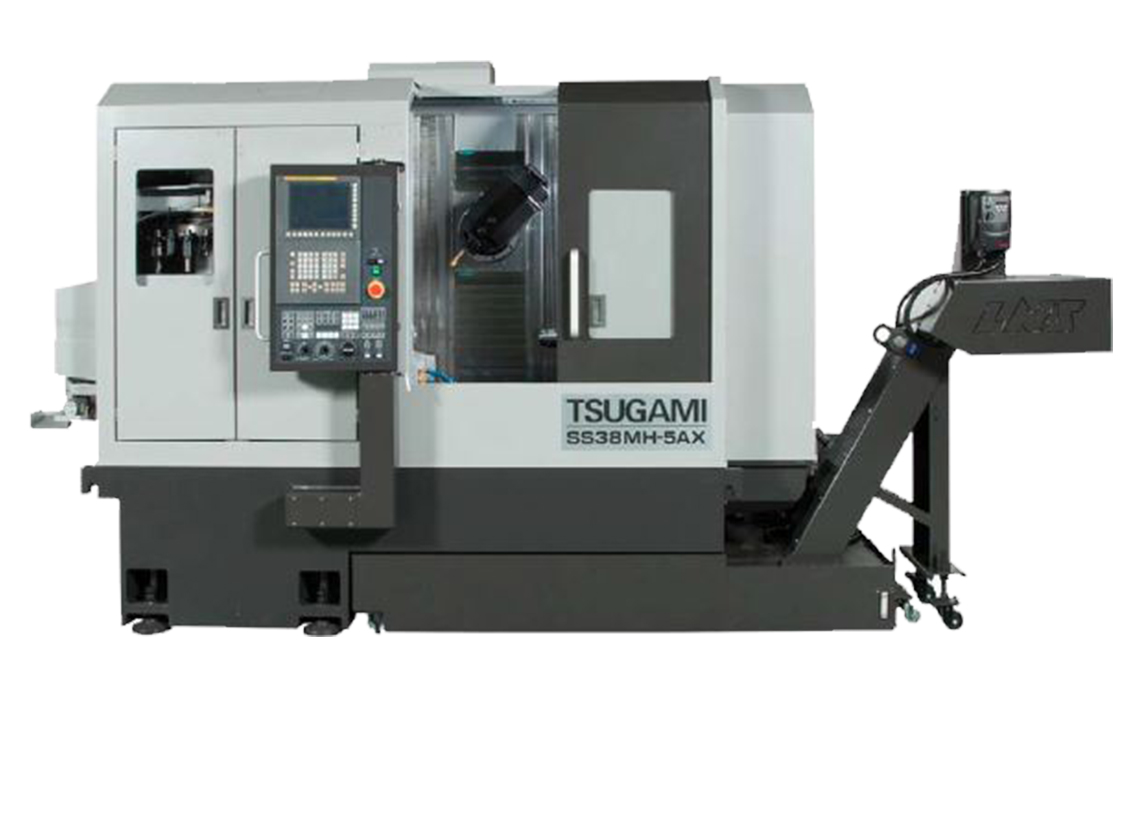

SS38MH-5AX
Multifunction
SS38MH-5AX
Travels
Max Headstock Stroke
|
100/300 mm (3.9/11.8 in)
|
Number of Axes
|
8
|
Capacity
Max Bar Diameter
|
Ø38 mm (1.5 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
Yes
|
Spindle
Speed (Main)
|
200-7000 rpm
|
Speed (Sub)
|
200-7000 rpm
|
Power
|
5.5 kW (7.4 Hp)
|
Tooling
Tool Capacity
|
52
|
Live Tool Capacity
|
6
|
Live Tool Speed
|
6000/20000 rpm
|
Machine Size
Length
|
1940 mm (76.5 in)
|
Height
|
2160 mm (85 in)
|
Width
|
2930 mm (115.5 in)
|
